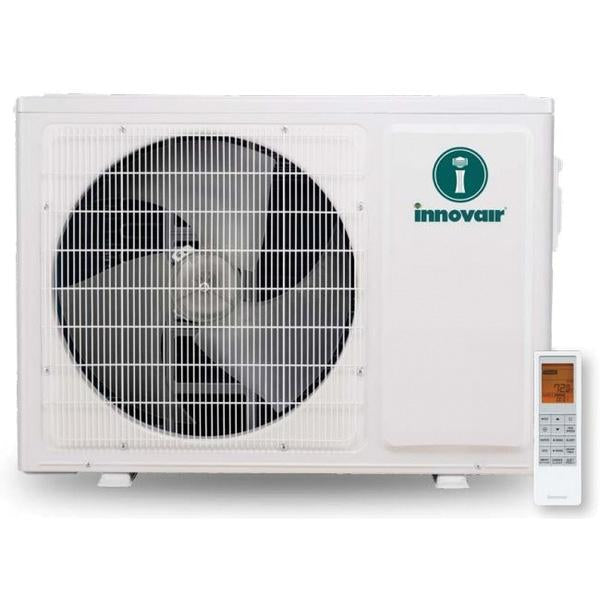

Innovair QOS12H2XE5A Q32 12K 240V HP Mini Split Cond R32A 1 Ton

Product Description

The Innovair QOS12H2XE5A Q32 Series High Wall Heat Pump Outdoor Unit provides efficient heating and cooling for residential and commercial spaces. Operating at 208-230 V and delivering 12000 Btu/hr for both heating and cooling, this 1 TON unit utilizes an Inverter, Rotary Compressor with R-32 refrigerant. It features a 20 SEER and 8.5 HSPF rating, ensuring energy-efficient performance. Designed for wall mounting, it offers reliable climate control.

• Pure hydrofluorocarbon with zero impact on ozone layer.
• Inverter Technology delivering up to 22 SEER Rated Efficiency.
• AHRI Certified Units.

Product Highlights

Advanced Inverter Technology ensures high efficiency and eco-friendly operation for year-round comfort.

Product Information

Standard Information

• Brand: INNOVAIR
• Manufacturer Part Number: QOS12H2XE5A

Technical Specifications

• Input Current: 9.5 A
• BTU: 12000 Btu/hr
• Compressor Type: Inverter, Rotary
• Cooling BTU: 12000 Btu/hr
• Cooling CFM: 394 cfm
• Cooling Operating Temperature: 5 to 118 deg F
• Frequency: 60 Hz
• Fuse Rating: 15 A
• HSPF: 8.5
• Heating BTU: 12000 Btu/hr
• Heating Operating Temperature: -4 to 75 deg F
• Heating Sound Level: 53 dBA
• Liquid Line Size: 1/4 in
• Mounting Type: Wall
• Phase: 1 ph
• Power Consumption: 1000 W
• Refrigerant: R-32
• SEER: 20
• Series: Q32 Series
• Size: 1 TON
• Suction Line Size: 3/8 in
• Tonnage: 1 TON
• Input Voltage: 208-230 V
• Type: Outdoor
