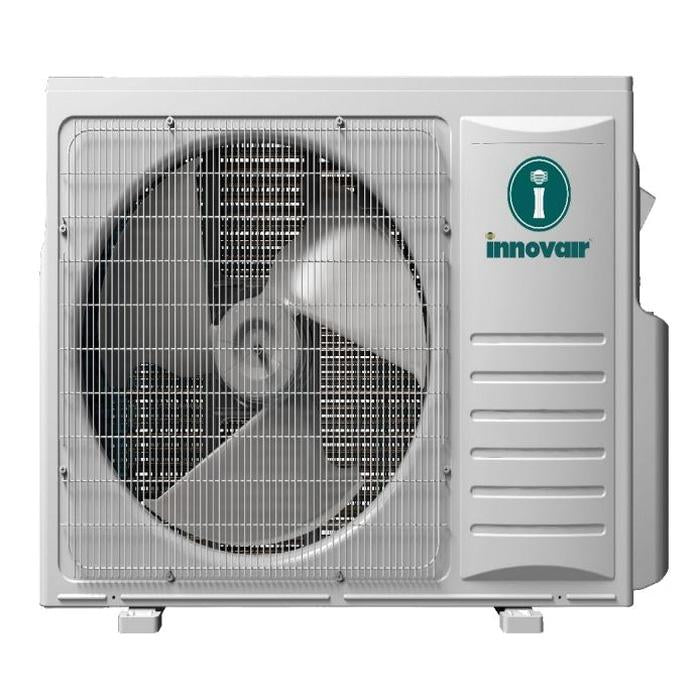

Innovair QOM42H2BM5A Q4 Multi 42K 240V (Condenser 454B) INV QOM42H2BM5A

Product Description

The Innovair QOM42H2BM5A is a Q4 Multi 42K multi-zone heat pump and cooling condenser designed for 240 V operation. It delivers 42,000 Btu/hr cooling and 48,000 Btu/hr heating capacity with inverter DC compressor technology and a variable-speed motor, uses R-454B refrigerant, and supports up to five indoor units. Performance ratings include 22 SEER, 12 EER, and 9.5 HSPF and the unit uses flared 1/4 in liquid and 3/8 in suction connections.

• 42,000 Btu/hr cooling and 48,000 Btu/hr heating capacity with inverter DC compressor
• Uses R-454B refrigerant; variable-speed motor; supports up to 5 indoor units
• Rated 22 SEER, 12 EER, 9.5 HSPF; flared 1/4 in liquid and 3/8 in suction connections

Product Highlights

Multi-zone Q4 series heat pump, inverter compressor, R-454B refrigerant, 240 V operation

Product Information

Standard Information

• Brand: INNOVAIR
• Manufacturer Part Number: QOM42H2BM5A
• Country of Origin: United States

Technical Specifications

• Manufacturer: Innovair Corporation
• Brand: INNOVAIR
• MPN: QOM42H2BM5A
• Model: Q4 Multi 42K
• Series: Q4 Series
• Input Voltage: 240 V
• Frequency: 60 Hz
• Phase: 1 ph
• Amperage Rating: 36 A
• Fuse Rating: 45 A
• Cooling Capacity: 42,000 Btu/hr
• Heating Capacity: 48,000 Btu/hr
• SEER Rating: 22
• EER Rating: 12
• HSPF Rating: 9.5
• COP Rating: 3.6
• Refrigerant: R-454B
• Compressor Type: CRSS (CRSS C-7RZ420H1CAF)
• Refrigerant Oil: FV68S 1200 mL
• Connection Type: Flared (1/4 in liquid line, 3/8 in suction line)
• Condenser Type: High-pressure condenser 454B
• Suitable For Use With: Up to 5 indoor units
• Operating Temperature (Cooling): 5 to 125 deg F
• Operating Temperature (Heating): -13 to 75 deg F
• Heating Sound Level: 64 dBA
• Overall Dimensions: 38.375 in L x 14.125 in W x 32.875 in H
• Additional Features: Variable-speed motor; inverter DC compressor; corrosion-resistant fins; internal protection against irregular power
