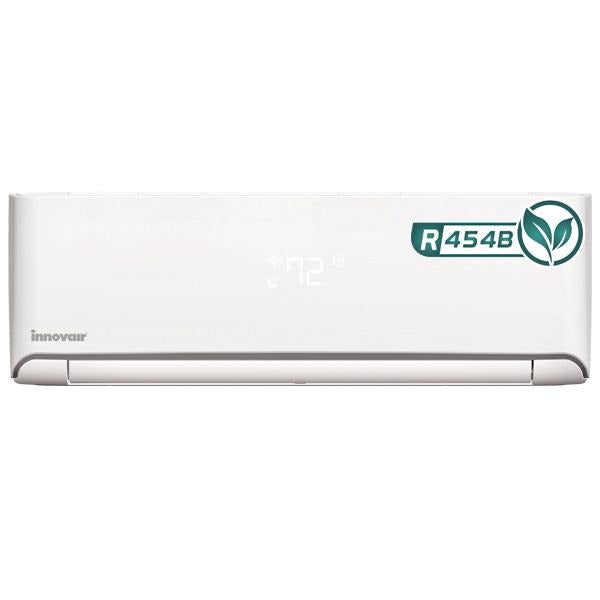

Innovair qhw36h2xera High Wall Heat Pump 36000 Btu/h

Product Description

The INNOVAIR qhw36h2xera is a high-wall heat pump indoor unit designed for split-system HVAC installations requiring 36000 BTU/h of heating and cooling capacity. Part of the INNOVAIR Q Series, this unit operates on 208/230 volts single-phase power at 60 Hz and uses R-32 refrigerant. Airflow is rated at up to 1060 CFM across four fan speeds, and sound levels range from 36 to 50 dBA depending on the selected speed. A SEER rating of 20 and an EER rating of 9.4 reflect efficient operation suited to residential and light commercial applications. Licensed HVAC technicians handle procurement and installation of this component.

The qhw36h2xera is intended for wall-mount split-system installations in residential and light commercial settings. It is sized for larger conditioned spaces that demand 36000 BTU/h capacity. The unit connects to the outdoor section via flared refrigerant lines, with a 3/8-inch liquid line and a 5/8-inch gas line. Its operating temperature range of 61 to 86 degrees F covers standard comfort-cooling and heat-pump heating conditions. A remote control is included for end-user operation. The -4 degrees F entry tier rating indicates suitability for low-ambient heating operation in colder climates.

Key Features

• 36000 BTU/h capacity with a SEER rating of 20 and EER of 9.4 for efficient operation
• R-32 refrigerant with flared connection fittings for a clean, leak-resistant line set hookup
• Four-speed fan with airflow from 712 to 1060 CFM and sound levels as low as 36 dBA
• Low-ambient capability rated to -4 degrees F entry tier for cold-climate heat pump use
• Wall-mount design with a slim profile measuring 52-3/8 inches wide by 10-13/16 inches tall by 4-5/16 inches deep
• Includes remote control for straightforward end-user temperature management

Compatibility

Designed as an OEM-matched indoor wall-mount unit within the INNOVAIR Q Series split-system lineup, intended for pairing with a compatible INNOVAIR Q Series outdoor condenser unit rated for R-32 refrigerant.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle R-32 refrigerant under applicable EPA Section 608 regulations. Shut off all power to the system at the disconnect and breaker before making any electrical or refrigerant connections. Verify that the circuit is protected with a fuse rated no greater than 40 amps and that wiring is sized for 26.8 amps in accordance with NEC guidelines. Confirm the wall-mount bracket is secured to structural framing capable of supporting the unit before final line set connection and system commissioning.
