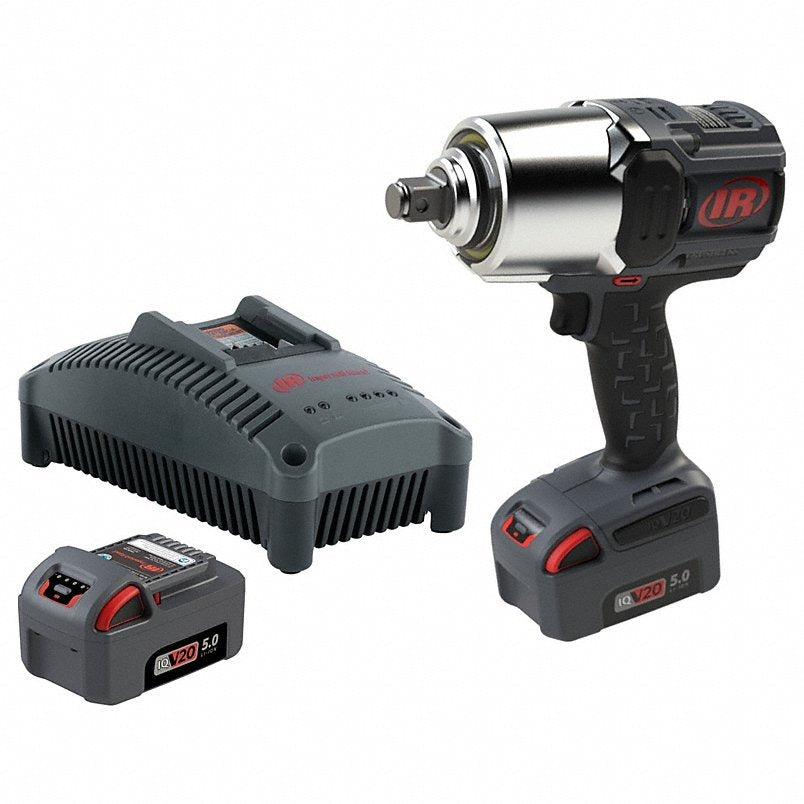

Ingersoll Rand w8171-k2 3/4 in Cordless Impact Wrench

Product Description

The INGERSOLL RAND w8171-k2 is a cordless, brushless 3/4 inch drive impact wrench built for assembly, automotive, maintenance, and construction applications. It delivers up to 2,000 ft-lb of breakaway and fastening torque using a hammer-and-rotation mechanism that drives and removes heavy fasteners without a pneumatic compressor. The brushless motor runs on the IQV20 20-volt DC battery platform and reaches a no-load speed of 1,350 RPM. A 4-position power regulator with timed shutoff on positions 1 through 3 gives technicians fine torque control, while position 4 provides continuous power for fastener removal. The kit includes two 5.0 Ah Li-Ion batteries and one charger.

This impact wrench is suited for heavy-duty fastening tasks where portability matters. Typical applications include truck and fleet maintenance, roadside tire service, structural assembly, and industrial maintenance. The 3/4 inch square drive accepts impact-rated sockets. The tool weighs 7.4 pounds and features a rubberized pistol grip handle and a 360-degree halo ring light around the anvil for visibility in low-light work areas. Cordless operation eliminates the need to run air lines or haul compressors to remote service locations.

Key Features

• 2,000 ft-lb breakaway and fastening torque from a brushless motor
• 4-position power regulator with timed shutoff in positions 1-3 to prevent over-torquing
• 360-degree halo ring light around the anvil for full visibility at the fastener
• 3/4 inch square drive with friction ring and through-hole retainer
• Extended anvil length of 6 inches for deep or recessed fastener access
• Kit includes two 5.0 Ah IQV20 Li-Ion batteries and one BC1121 charger

Compatibility

Requires IQV20 platform batteries at 20 volts DC with a tabbed battery type. The included batteries are IQV20 model, 5.0 Ah capacity. Compatible charger model is BC1121. Use only impact-rated sockets with this tool.

Installation Notes

This tool is intended for use by trained mechanics, technicians, and tradespeople familiar with impact wrench operation and torque requirements. Always use impact-rated sockets rated for the torque output of this wrench — standard chrome sockets are not appropriate. Verify fastener torque specifications against the applicable service manual or engineering standard for the assembly being serviced. Inspect batteries and the charger before use and store in a dry environment away from heat sources.

Technical Specifications

• Drive Size: 3/4 inches
• Drive Shape: Square
• Fastening Torque: 2,000 ft-lb
• Breakaway Torque: 2,000 ft-lb
• No Load Speed: 1,350 RPM
• Voltage: 20 volts DC
• Power Source: Cordless
• Motor Type: Brushless
• Battery Platform: IQV20
• Battery Chemistry: Li-Ion
• Battery Capacity: 5.0 Ah
• Number of Batteries Included: 2
• Number of Chargers Included: 1
• Charger Model: BC1121
• Overall Length: 8.75 inches
• Head Width: 3.25 inches
• Extended Anvil Length: 6 inches
• Tool Weight: 7.4 pounds
• Handle Material: Rubber
• Handle Type: Pistol Grip
• Retainer Type: Friction Ring and Through Hole
• Speed Control: Variable
• Throttle Type: Trigger
• Built-In Light: Halo Ring
• Case Included: Yes
• Country of Origin: USA (subject to change)

Standard Information

• Brand: INGERSOLL RAND
• Manufacturer Part Number: w8171-k2
