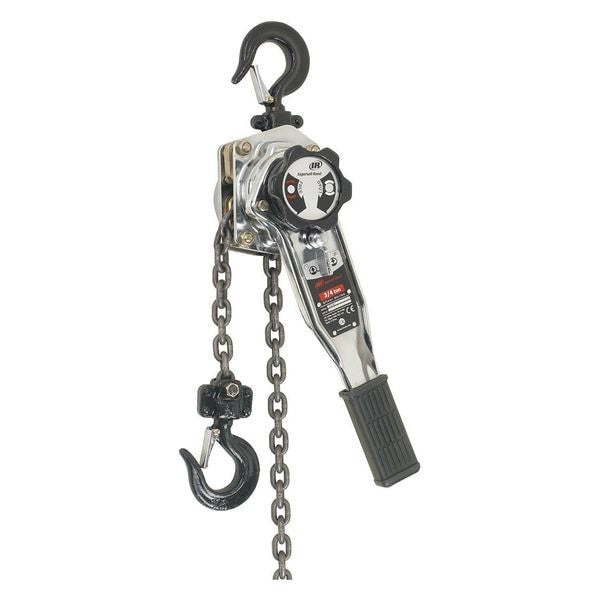

Ingersoll Rand slb150-10 Lever Chain Hoist 1500 Lb

Product Description

The INGERSOLL RAND slb150-10 is a lever chain hoist rated for 1500 lb (0.75 ton) load capacity with a 10-foot lift range. Lever hoists use a mechanical ratchet-and-pawl drive that lets a single technician lift, lower, or tension a load with controlled hand-lever strokes. This unit is a compact, portable rigging tool suited for construction sites, maintenance shops, industrial facilities, and overhead service work where a powered hoist is impractical. Licensed riggers, millwrights, and maintenance mechanics are the primary users. The manual lever operation and compact body make it practical in confined spaces and remote locations where power access is limited.

This hoist is intended for industrial and commercial rigging applications including load tensioning, pulling, and vertical lifting. Typical install scenarios include steel erection, equipment positioning, pipe rigging, and load securing. The 10-foot chain drop covers standard overhead-to-floor working distances found in most shop and field environments. It is not rated for personnel lifting and must be used only on structurally rated anchor points.

Key Features

• 1500 lb rated load capacity for reliable single-operator lifts
• 10-foot lift range covers standard shop and field working heights
• Manual lever drive with ratchet-and-pawl mechanism for controlled load positioning
• Compact, portable design suitable for confined spaces and remote sites
• No power source required — fully mechanical operation

Compatibility

Designed as a standard lever chain hoist for general industrial rigging and lifting applications where a 0.75-ton manual hoist is specified.

Installation Notes

Lever chain hoists must be installed by a qualified rigger or maintenance professional following applicable ASME B30.21 standards for lever hoists. Always verify that the overhead anchor point, beam, or trolley is rated for at least the hoist's full working load limit before use. Inspect the load chain, hook latch, and ratchet mechanism before each lift and remove the hoist from service if any wear, deformation, or damage is found. Never exceed the rated load capacity or side-load the hook.

Technical Specifications

• Load Capacity: 1500 lb (0.75 ton)
• Hoist Lift: 10 ft
• Country of Origin: China

Standard Information

• Brand: INGERSOLL RAND
• Manufacturer Part Number: slb150-10
