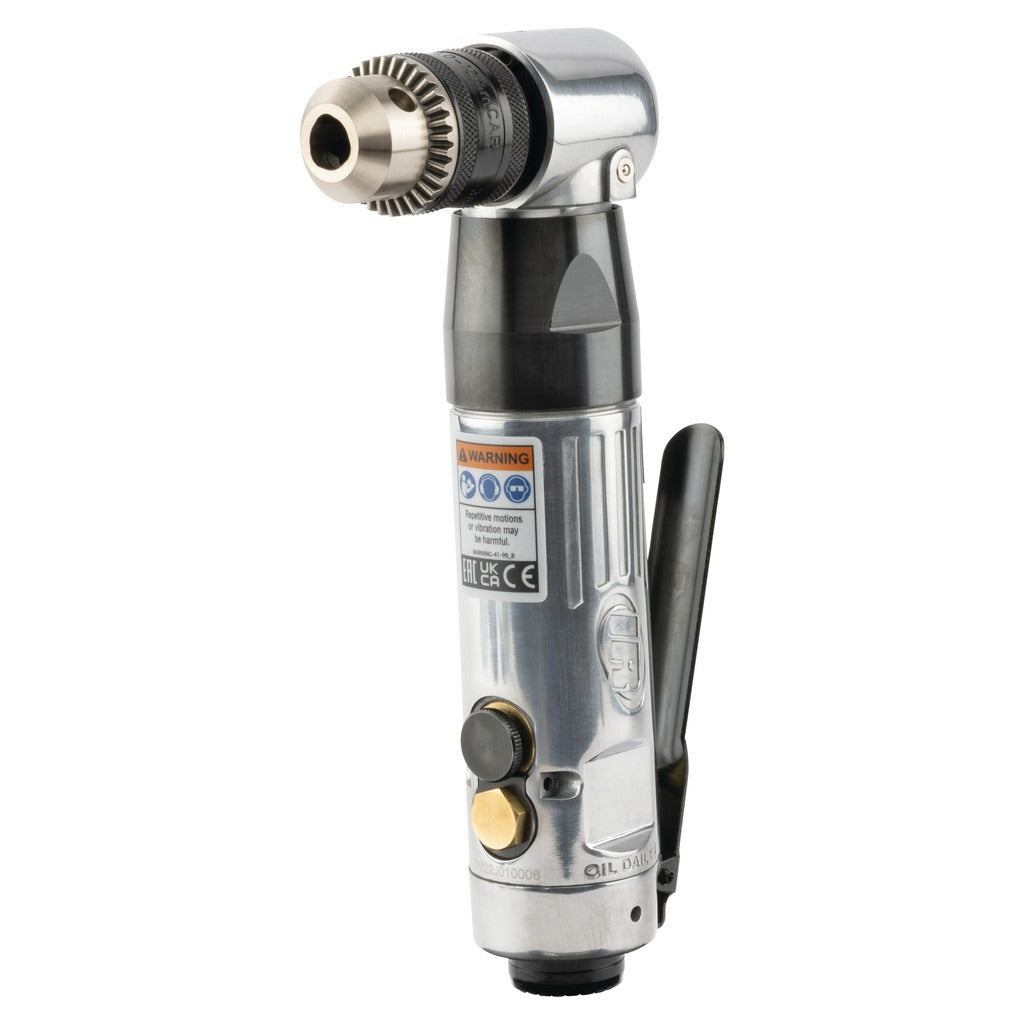

Ingersoll Rand 7807R-A Right Angle Air Drill 0.33 Hp

Product Description

The INGERSOLL RAND 7807R-A is a right angle air drill built for trade professionals working in tight spaces where a standard inline drill cannot reach. Powered by compressed air at 90 psi and 6.2 bar, it delivers 1800 RPM through a 3/8 inch keyed chuck. At 0.33 HP and a total length of 8 inches, this compact drill is well suited for mechanical, HVAC, plumbing, and electrical contractors who need controlled drilling in confined installations. The reversible motor adds versatility for both driving and extraction tasks. Air consumption runs at 3.10 CFM (580 LPM), so verify your compressor supply before use.

The 7807R-A fits standard trade workflows on residential and light commercial jobsites. The right angle handle configuration makes it the preferred choice when drilling through studs, joists, or equipment panels where a straight-body tool cannot be positioned. It connects via a 1/4 inch inlet, compatible with common shop air fittings found on most job sites. The keyed chuck provides secure bit retention when working with standard twist bits, step bits, or hole saws up to the chuck rating.

Key Features

• Right angle handle for access in confined or obstructed work areas
• 3/8 inch keyed chuck for secure, positive bit retention
• Reversible operation for driving and fastener removal
• 1800 RPM free speed suits a wide range of drilling applications
• Exhaust routed through the handle to direct air away from the work area
• Compact 8 inch overall length for tight-space maneuverability

Compatibility

Designed as a general-purpose right angle air drill compatible with standard 1/4 inch NPT air supply lines and accessories fitting a 3/8 inch keyed chuck.

Installation Notes

Installation and operation should be performed by a qualified technician familiar with pneumatic tool safety. Before connecting to an air supply, confirm the line pressure does not exceed the rated 90 psi operating pressure. Always disconnect the air supply before changing bits or performing any maintenance. Follow applicable workplace safety codes and wear appropriate eye protection during use.
