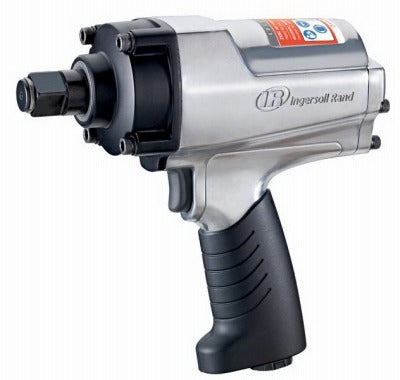

Ingersoll Rand 259G 3/4 Inch Impact Air Wrench 6500 Rpm

Product Description

The INGERSOLL RAND 259G is a 3/4 inch drive impact air wrench built for heavy-duty fastening work in professional shop and field environments. Part of the Edge Series, it runs at up to 6500 RPM and delivers 1000 blows per minute through a rocking dog impact mechanism. Max reverse torque reaches 1505 foot-pounds. The six-vane motor is designed for durability under continuous use. A variable speed tripper and forward/reverse power regulator give the operator precise control over speed and output in either direction. The handle exhaust directs air away from the work surface, keeping the work area clear. Licensed HVAC techs, mechanics, pipefitters, and industrial technicians are the primary users of this tool.

The 259G is suited for high-torque fastening applications in automotive service bays, mechanical rooms, HVAC equipment installations, and industrial maintenance settings. Its ergonomic grip reduces fatigue during extended use. The variable speed control makes it adaptable for both high-torque removal tasks and more controlled assembly work where overfastening is a concern. It ships as a single unit.

Key Features

• 3/4 inch drive for heavy-duty fastening and removal
• 6500 RPM and 1000 blows per minute via rocking dog impact mechanism
• Variable speed tripper for adjustable output control
• Forward/reverse power regulator operable mid-use
• Six-vane motor construction for durability under load
• Handle exhaust directs air away from work area

Compatibility

Designed as an OEM-style 3/4 inch drive impact air wrench compatible with standard industrial and automotive air supply systems requiring a tool in this drive class.

Installation Notes

Installation and operation should be performed by qualified technicians familiar with pneumatic tool safety. Ensure the air supply is disconnected before changing sockets or performing any service on the tool. Match the air supply line pressure and CFM rating to the tool specifications before use. Follow applicable OSHA and facility safety guidelines when operating impact tools in confined or elevated work areas.

Technical Specifications

• Drive Size: 3/4 inch
• Max Reverse Torque: 1505 foot-pounds
• Free Speed: 6500 RPM
• Impact Rate: 1000 blows per minute
• Impact Mechanism: Rocking Dog
• Motor: 6-vane pneumatic
• Exhaust: Handle exhaust
• Weight: 8.8 pounds
• Package Quantity: 1

Standard Information

• Brand: INGERSOLL RAND
• Manufacturer Part Number: 259G
