Product Description

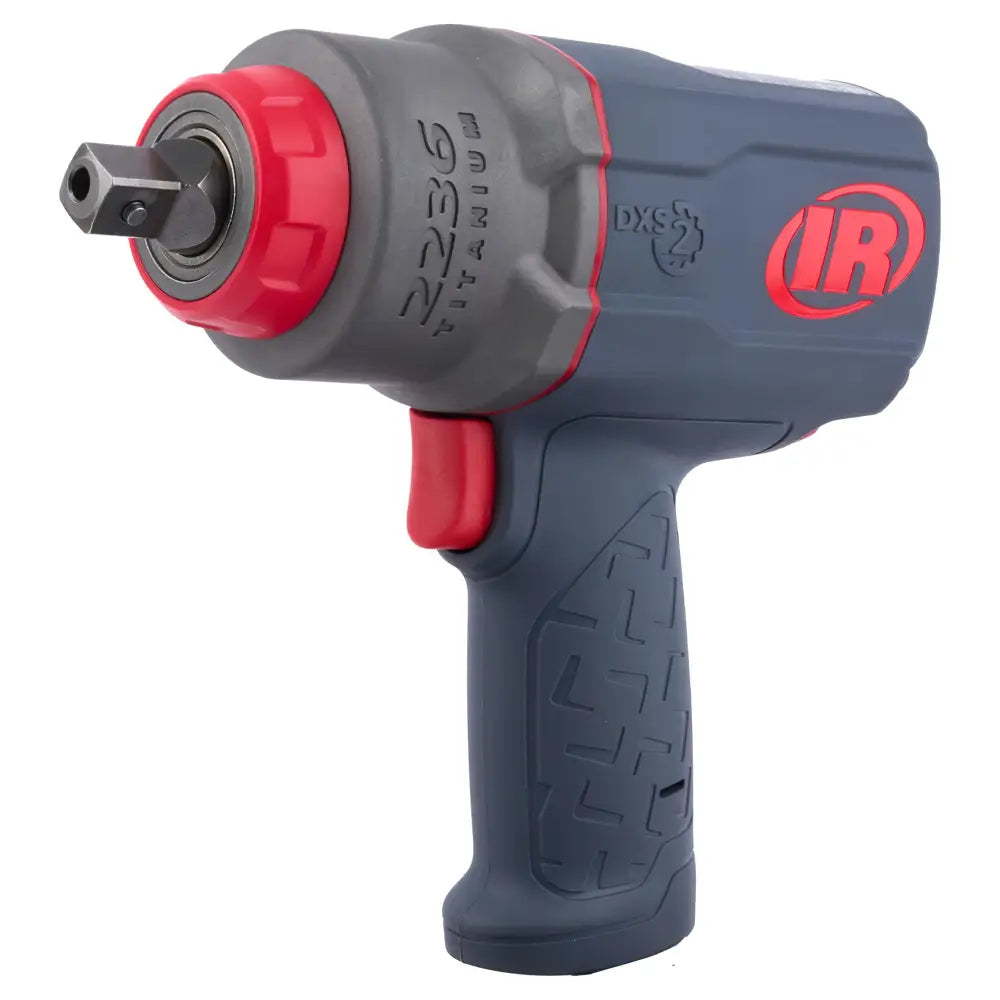

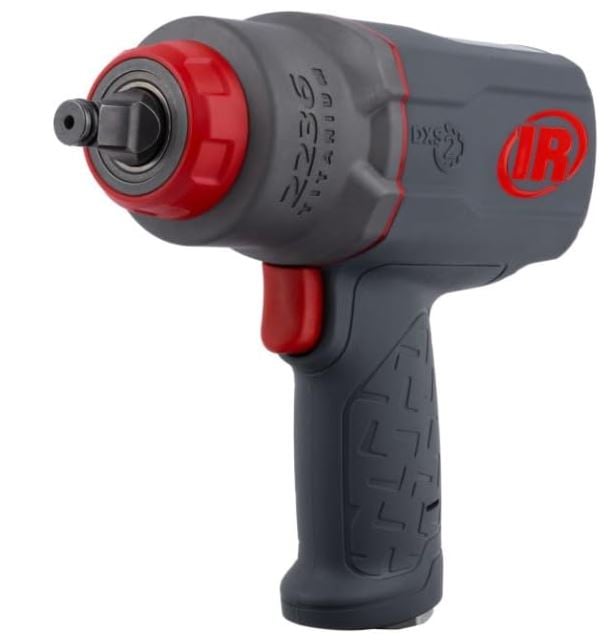

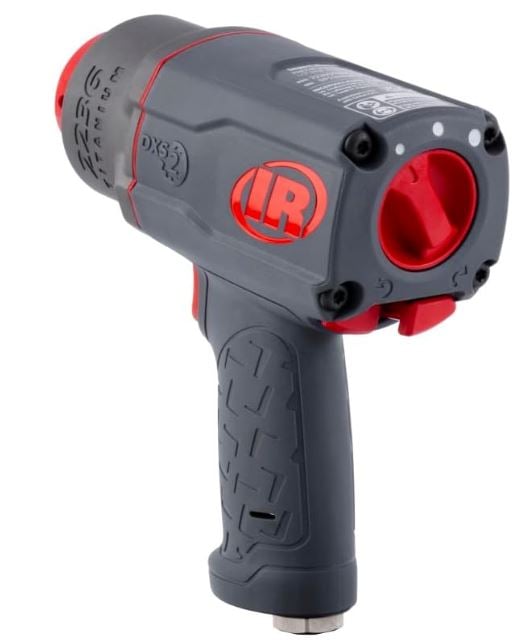

The INGERSOLL RAND 2236QTIMAX DXS2 1/2" Air Impact Wrench features a patented Drive Xchange System that allows for swapping anvils without torque-draining adapters. This pneumatic impact wrench delivers 1,500 ft-lbs of breakaway torque. The titanium hammer case provides durability, while the new airflow path design reduces noise. It operates at a maximum free speed of 8500 RPM.

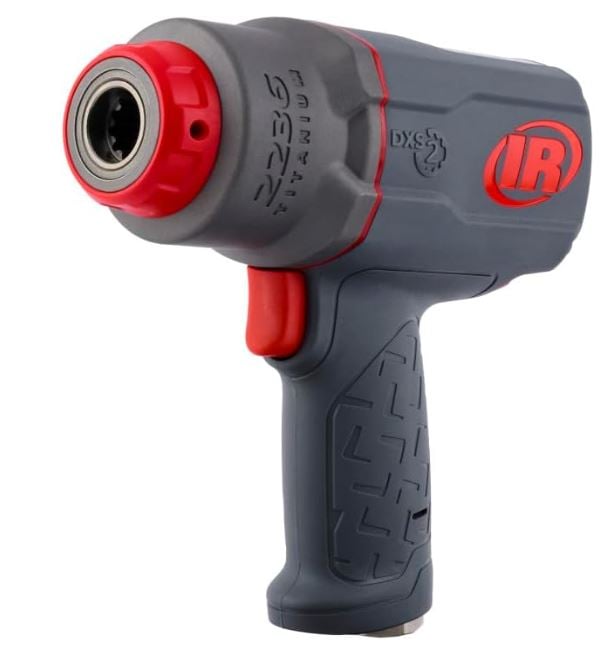

- Patented Drive Xchange System allows anvil swapping without losing power.
- Delivers 1,500 ft-lbs of breakaway torque.
- Features a durable titanium hammer case and a quiet operation.
Product Highlights
The INGERSOLL RAND 2236QTIMAX impact wrench offers versatility and power for technicians, with a focus on durability and ease of use.
Product Information
Standard Information
-
Brand: INGERSOLL RAND
-
Manufacturer Part Number: 2236QTIMAX
Technical Specifications
-
Model: 2236QTIMAX
-
Configuration: Pistol
-
Actuation: Trigger
-
Drive Size (in): 1/2
-
Drive Type: Square
-
Breakaway Torque ft-lb (Nm): 1500 (2034)
-
Max Reverse Torque ft-lb (Nm): 1000 (1356)
-
Blows per Minute: 1350
-
Max Free Speed (RPM): 8500
-
Impacting Sound Level dB(A) (pressure/power): 94.2
-
Length in (mm): 7.36 (187)
-
Air Inlet NPT (in): 1/4
-
Min Hose Size in (mm): 3/8 (10)
-
Impact Rate: 1350 IPM
-
Pneumatic or Battery: Pneumatic
-
Socket Attatchment System: Friction Ring
