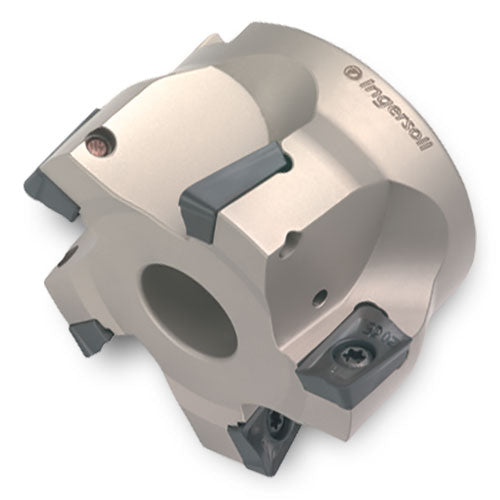

Ingersoll INGCU-3017401 2J1E Series HI-POS Indexable Face Mill 2.5 in Cutting Dia

Product Description

The Ingersoll INGCU-3017401 is a 2J1E Series HI-POS Indexable Face Mill designed for efficient cutting. It features a cutting diameter of two point five inches and an overall length of one point five seven inches. This face mill allows for a maximum depth of cut of zero point six six inches and utilizes AOMT insert style, accommodating six inserts.

• Right hand cutting direction
• Compatible with various AOMT inserts
• Through coolant feature for effective chip removal

Product Highlights

This face mill is suitable for various milling tasks, ensuring precision in metalworking applications.

Product Information

Standard Information

• Brand: Ingersoll Cutting Tool
• Part Number: INGCU-3017401

Technical Specifications

• ANSI Code: 2J1E-25R02
• Cutting Angle: 90 degrees
• Cutting Direction: Right Hand
• ISO Code: 2J1E-25R02
• Insert Compatibility: AOMT180504FR-P, AOMT180504R-HS, AOMT180508FR-P, AOMT180508R, AOMT180508R-HS, AOMT180516FR-P, AOMT180516R, AOMT180516R-HS, AOMT180524FR-P, AOMT180524R, AOMT180532FR-P, AOMT180532R
• Number of Inserts: 6
• Series: 2J1E
• Cutting Diameter: 2.5 inches
• Overall Length: 1.57 inches
• Insert Style: AOMT
• Maximum Depth of Cut: 0.66 inches
• Arbor Hole Diameter: 0.75 inches
• Lead Angle: 90 degrees
• Through Coolant: Yes
