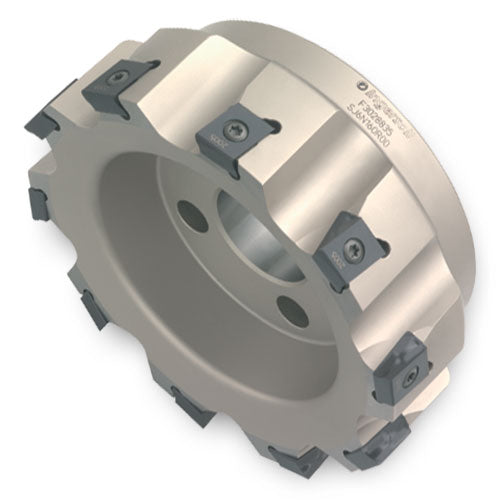

Ingersoll INCU-3019625 SJ6N Series S-Max Indexable Face Mill, 3 in Cutting Dia - Replacement MPN

Product Description

The Ingersoll SJ6N Series S-Max Indexable Face Mill with MPN INCU-3019625 features a cutting diameter of three inches and an overall length of two point thirty-eight inches. This face mill can accommodate a maximum depth of cut of zero point sixty-eight inches. The DPM insert style allows for easy insert replacement and maintenance. Designed for right hand cutting, this tool is suitable for various milling applications.

• Cutting diameter: three inches.
• Overall length: two point thirty-eight inches.
• Insert compatibility: DPM434R001, DPM434R002, DPM434R004.

Product Highlights

This face mill offers reliable performance for machining operations, especially in industrial settings. The right hand cutting direction suits a variety of tasks. It's designed for use with multiple insert types, adding to its versatility.

Product Information

Standard Information

• Brand: Ingersoll
• MPN: INCU-3019625

Technical Specifications

• ANSI Code: SJ6N-03R01
• Cutting Angle: Ninety degrees
• Cutting Direction: Right Hand
• ISO Code: SJ6N-03R01
• Insert Compatibility: DPM434R001, DPM434R002, DPM434R004
• Number of Inserts: Five
• Series: SJ6N
• Cutting Diameter: Three inches
• Overall Length: Two point thirty-eight inches
• Insert Style: DPM
• Maximum Depth of Cut: Zero point sixty-eight inches
• Arbor Hole Diameter: One inch
• Lead Angle: Ninety degrees
• Through Coolant: No
