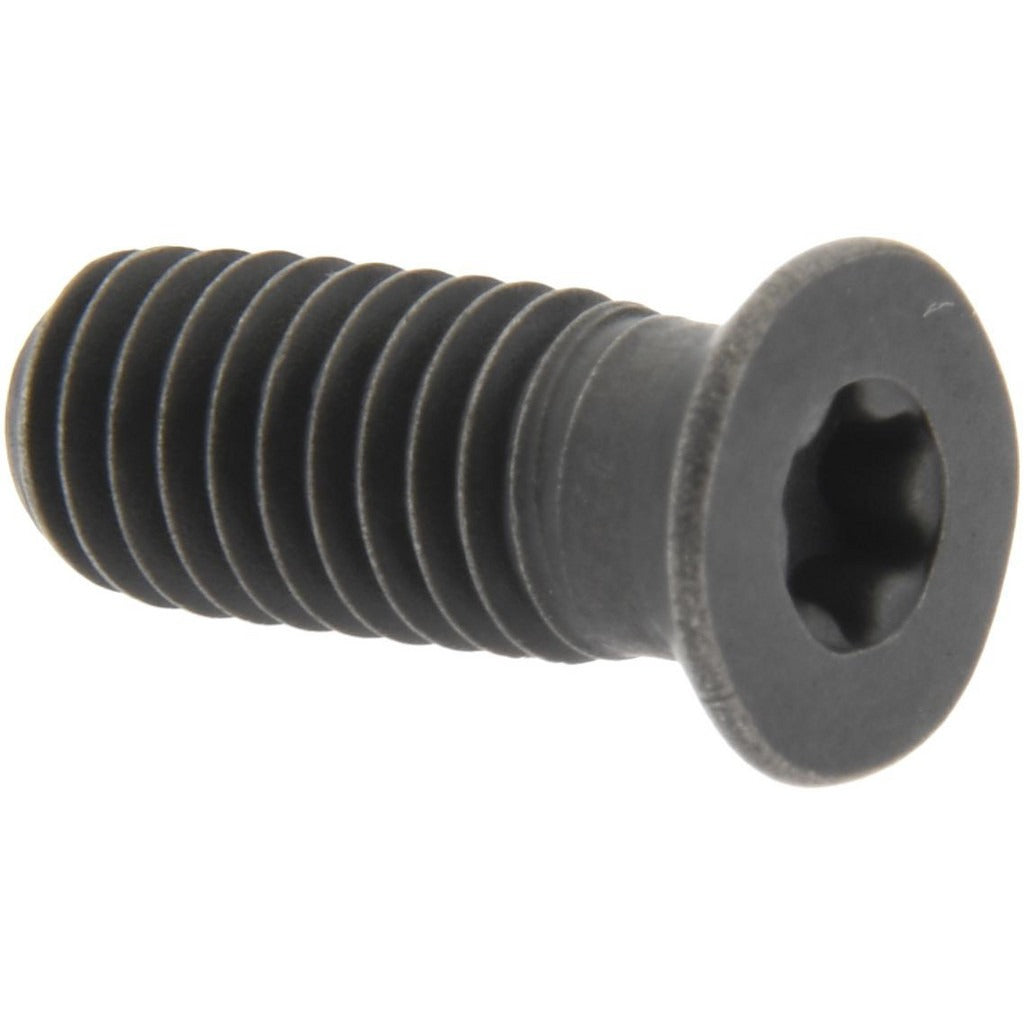

Ingersoll Cutting Tools 7000095 Indexable Insert Cap Screw

Product Description

The INGERSOLL CUTTING TOOLS 7000095 is a flat-head cap screw designed to secure indexable inserts in milling, turning, and boring toolholders. It features a T15 Torx drive and a 10-32 unified fine thread, providing reliable clamping force with minimal risk of cam-out during tightening. At 0.485 inches in overall length, this screw is sized for standard indexable insert pockets found on a wide range of toolholders. It is installed by machinists and toolroom technicians as part of routine insert changes or toolholder maintenance. The small form factor and precise thread form keep insert seating consistent across high-volume production runs.

This cap screw is suited for use in CNC machining centers, manual lathes, and milling setups where indexable carbide or cermet inserts are clamped by a central screw. Typical applications include insert replacement during production runs, toolholder reconditioning, and stocking spare hardware to minimize downtime. It is sold individually but subject to a minimum order quantity of 10 pieces, making it appropriate for shop-level stocking in toolrooms or maintenance departments.

Key Features

• T15 Torx drive reduces cam-out risk during insert clamping
• 10-32 unified fine thread for precise, repeatable torque application
• Flat head design seats flush within standard indexable insert pockets
• 0.485-inch overall length fits common indexable toolholder configurations
• Insert-compatible hardware suitable for routine insert change cycles

Compatibility

Designed as an OEM-style replacement cap screw for indexable insert toolholders requiring a 10-32 thread, T15 Torx drive, flat-head screw measuring 0.485 inches in overall length.

Installation Notes

Installation is performed by machinists or toolroom technicians using a calibrated T15 Torx key or torx bit driver. Always power down and lock out the machine spindle before changing inserts or hardware. Use the toolholder manufacturer's recommended torque specification for the insert clamp screw - do not overtighten, as this can strip the thread or crack the insert. Inspect the screw threads and pocket threads for wear or damage before reinstalling.
