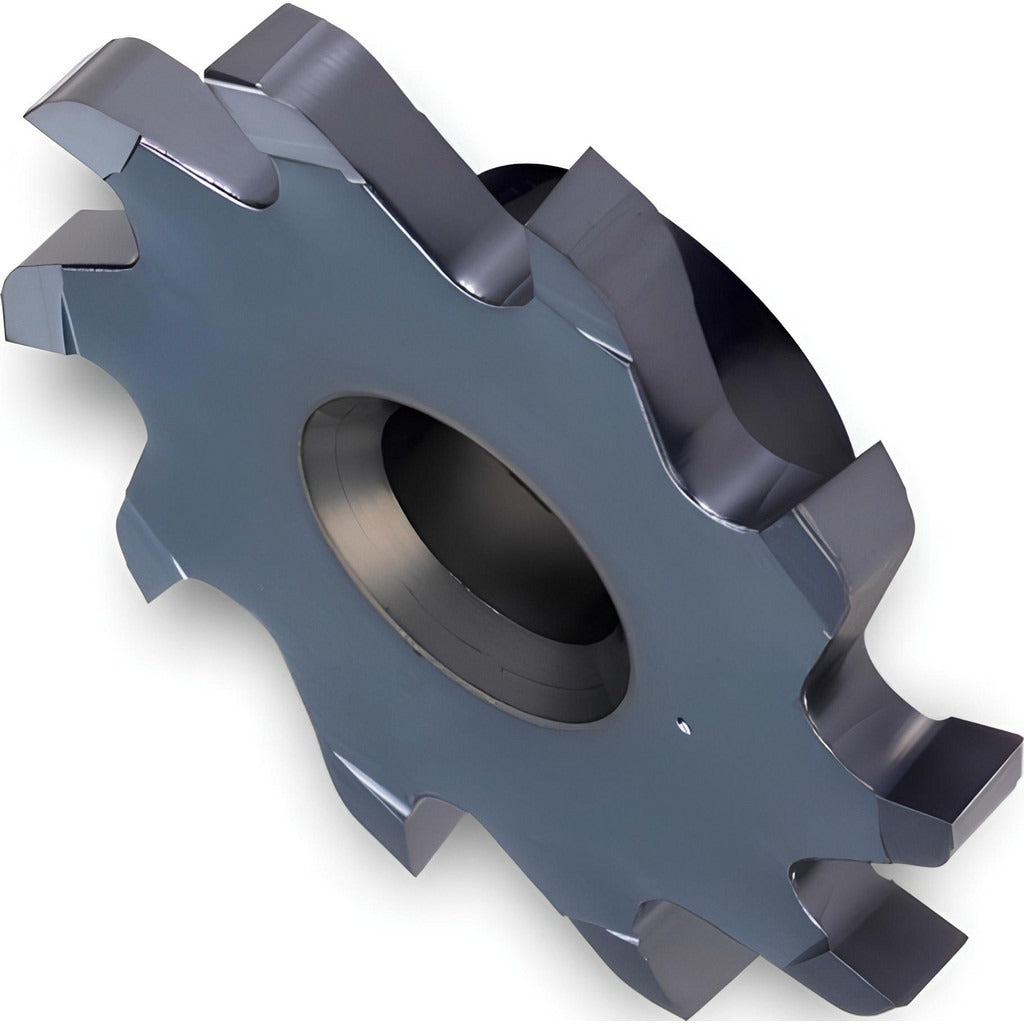

Ingersoll Cutting Tools 6324384 T-slot Milling Insert

Product Description

The INGERSOLL CUTTING TOOLS 6324384 is a carbide T-slot milling tip insert designed for indexable milling operations in demanding material removal applications. Built in the 19T style series, this right-hand insert carries a manufacturer grade of IN2005 with a TiAlN coating applied via PVD process. The insert delivers a maximum depth of cut of 11.00 mm (0.433 inches) across a cutting diameter of 39.70 mm (1.563 inches) with a cutting width of 8.00 mm (0.315 inches). Licensed machinists, toolroom specialists, and CNC operators use this insert in production and job-shop environments where T-slot cutting accuracy and edge life are critical.

This insert is suited for milling T-slots in workpieces made from steel, stainless steel, cast iron, superalloys, and titanium, covering material codes P, M, K, and S. It is designed for use in indexable T-slot milling cutter bodies compatible with the 19T insert series. Typical applications include milling machine table slots, fixture plates, and precision T-slot channels across both horizontal and vertical milling setups. The 90-degree included angle geometry is standard for T-slot profile work.

Key Features

• 19T style series insert with IN2005 carbide grade for extended tool life in multi-material applications
• TiAlN coating via PVD process improves heat resistance and wear performance at elevated cutting speeds
• 10-flute configuration supports efficient chip evacuation during T-slot passes
• Right-hand cutting orientation with 90-degree included angle for accurate T-slot profile geometry
• Corner radius of 10.16 mm (0.400 inches) reduces stress concentration at cutting edges
• Compatible workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium

Compatibility

Designed for use with indexable T-slot milling cutter bodies that accept 19T series inserts. Manufacturers catalog number 19T39780LRRN04 identifies the associated cutter body reference. Confirm cutter body pocket dimensions and insert seating specifications before installation.

Installation Notes

Insert replacement and indexing should be performed by a qualified machinist or toolroom technician with the machine powered down and locked out per OSHA lockout/tagout procedures. Use the correct torque wrench and insert screw specified by the cutter body manufacturer when seating the insert. Inspect the pocket seat and clamping screw for wear or damage before installing a new insert. Do not exceed the cutter body manufacturer's rated RPM or depth-of-cut specifications for this insert style.
