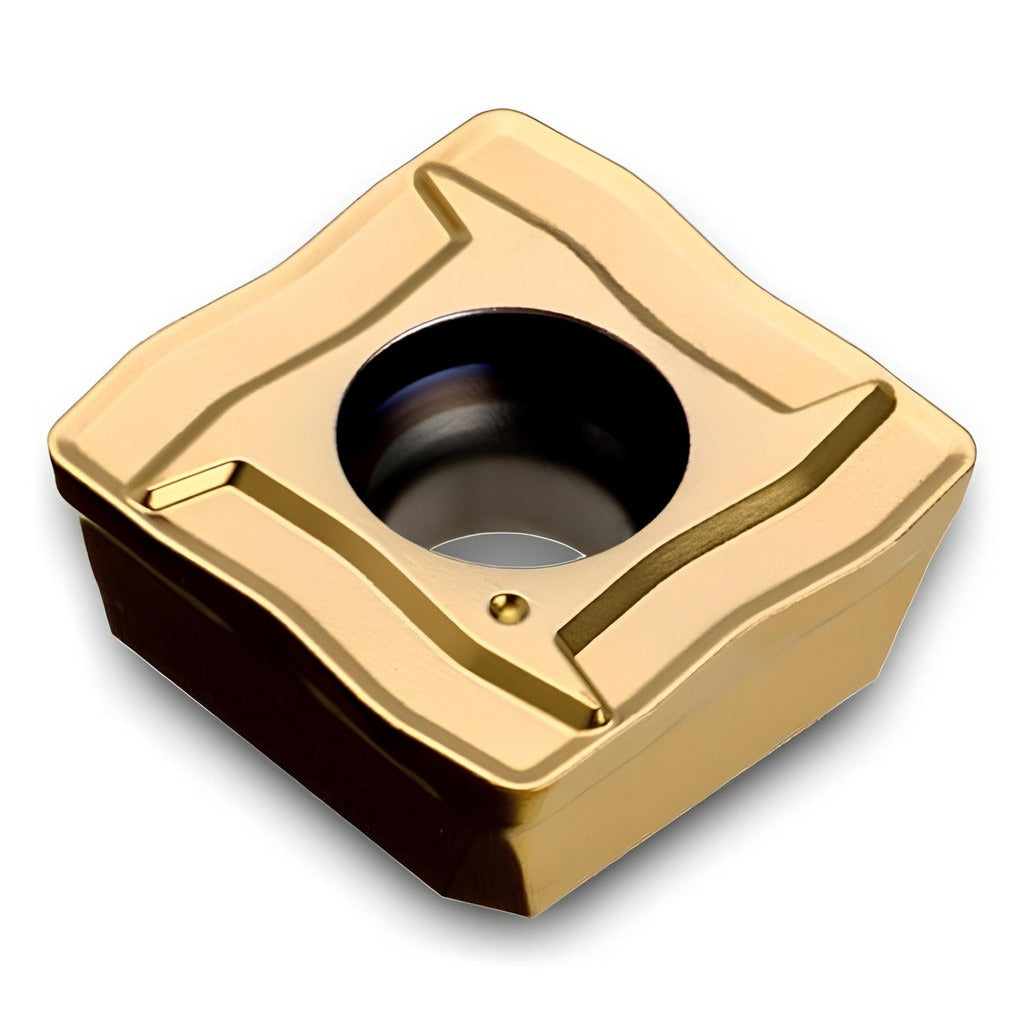

Ingersoll Cutting Tools 6301092 Indexable Drill Insert

Product Description

The INGERSOLL CUTTING TOOLS 6301092 is a carbide indexable drill insert designed for use in QR-style indexable drill bodies. Manufactured to the SOMT insert style in grade IN2505, this insert features a PVD-applied TiAlN and TiN dual-layer coating that supports high cutting speeds and extends edge life in demanding drilling applications. The square insert shape delivers four usable cutting edges, and the positive rake geometry reduces cutting forces during chip formation. With an inscribed circle of 0.362 inches and a corner radius of 1/32 inches, it is installed by machinists and CNC operators in production and job-shop environments.

This insert is suited for use in compatible QR-style indexable drill holders and is applied in ferrous and non-ferrous drilling operations across general machining, metalworking, and production manufacturing settings. The PS chipbreaker geometry is designed for controlled chip evacuation at moderate to high feed rates. The neutral hand orientation allows use in standard drill body configurations without handedness restrictions.

Key Features

• Carbide substrate in manufacturer grade IN2505 for wear resistance in metal cutting
• PVD-applied TiAlN and TiN coating for extended edge life and heat resistance
• Four cutting edges per insert reduce per-edge tooling cost
• Positive rake geometry lowers cutting forces and reduces heat generation
• PS chipbreaker supports controlled chip formation and evacuation
• Neutral hand orientation fits standard QR-style indexable drill bodies

Compatibility

Designed for use with QR-style indexable drill bodies accepting SOMT09T308 inserts. Verify seat geometry, clamp type, and holder specification before installation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or CNC tooling technician. Ensure the drill body and insert pocket are clean and free of chips or debris before seating the insert. Use the correct torx or hex key specified by the drill body manufacturer when tightening the clamping screw - do not over-torque. Confirm insert seating and edge condition before resuming cutting operations.
