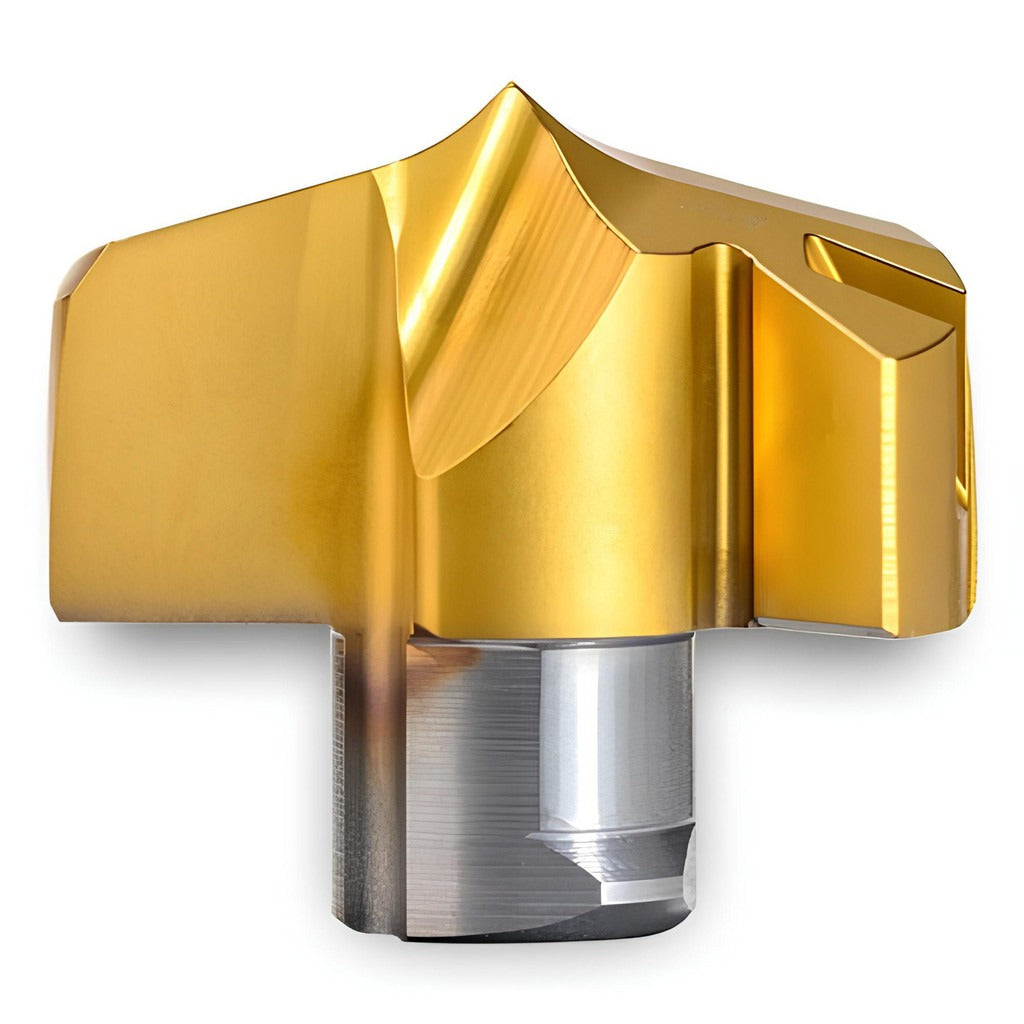

Ingersoll Cutting Tools 6185637 Drill Tip 9/16 in Carbide

Product Description

The INGERSOLL CUTTING TOOLS 6185637 is a replaceable drill tip engineered for high-performance drilling in steel and cast iron applications. Part of the TPC series, this solid carbide tip carries a manufacturer grade of IN2505 and is compatible with material grades P15 and P30. The 140-degree drill point angle and self-centering point geometry allow accurate entry without a pilot hole, reducing setup time on CNC and manual machining operations. A TiAlN and TiN PVD coating provides thermal and abrasion resistance during demanding cuts. Machining professionals and tool-room technicians install these tips as consumable replacements on modular drill bodies.

This tip is designed for use in drilling and spot drilling operations on steel and cast iron workpieces. It fits insert seat size 14 and is compatible with TPC-series modular drill bodies that accept the ISO number TPC1429R01 IN2505. The helical flute design with regular spiral promotes efficient chip evacuation, and the coolant-through capability allows internal coolant delivery directly to the cutting zone, extending tip life and maintaining dimensional control in production environments.

Key Features

• Solid carbide construction with IN2505 grade for wear resistance in P and K material groups
• TiAlN and TiN PVD coating for elevated heat and abrasion resistance
• 140-degree included angle with self-centering point for accurate, pilot-free entry
• Coolant-through design for internal coolant delivery to the cutting edge
• 2-flute helical configuration with regular spiral for reliable chip evacuation
• Clamp-style insert holding method for secure seating and repeatable positioning

Compatibility

Designed for use with TPC-series modular drill bodies that accept insert seat size 14 and ISO designation TPC1429R01 IN2505. Primary workpiece materials are steel (P) and cast iron (K), covering material grades P15 and P30.

Installation Notes

Installation is performed by machining technicians using the appropriate torx or clamping key specified by the drill body manufacturer. Power down and lock out the machine spindle before seating or removing the tip. Verify the insert seat is clean and free of chips before clamping to ensure proper seating and runout control. Follow the drill body manufacturer's clamping procedure to avoid tip damage or premature failure.
