Ingersoll Cutting Tools 6130692 Replaceable Drill Tip 1 in

Product Description

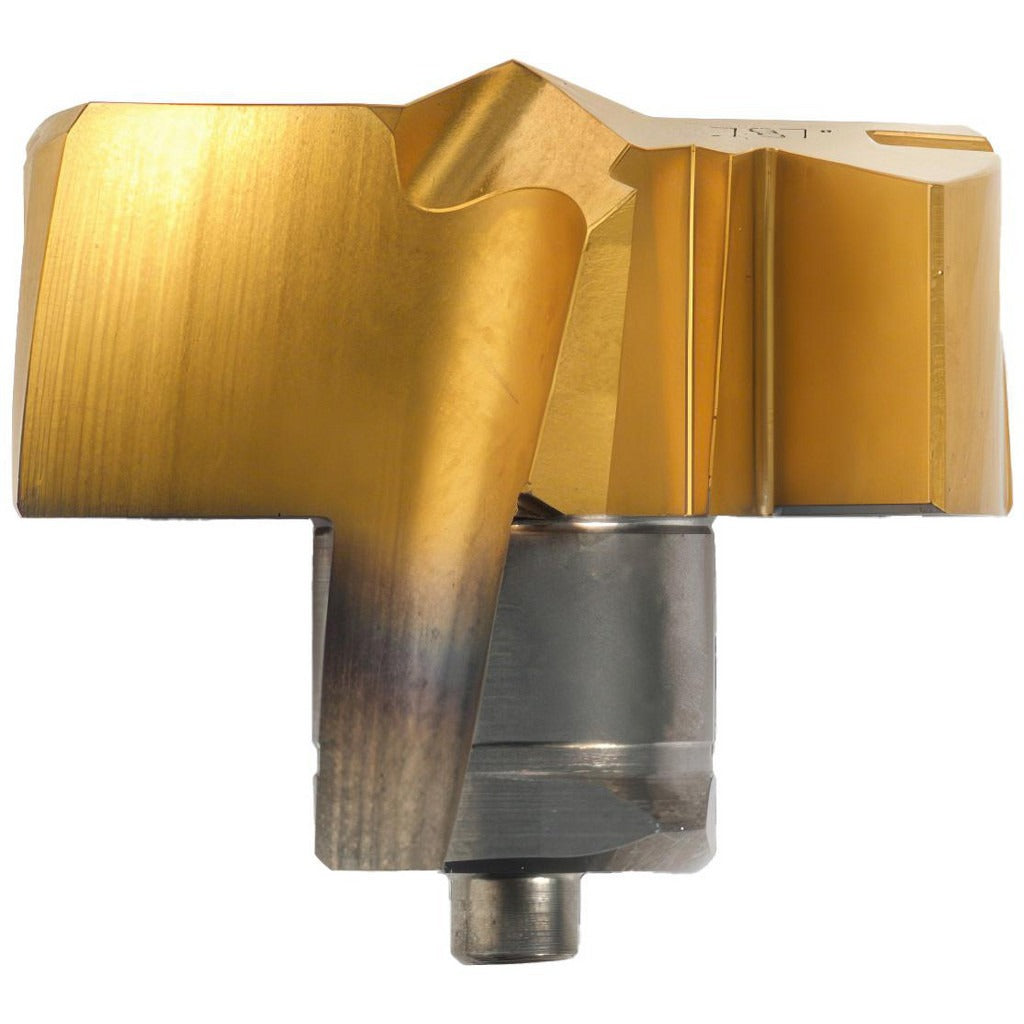

The INGERSOLL CUTTING TOOLS 6130692 is a replaceable drill tip designed for use with TPF-series indexable drill bodies. Built from solid carbide and coated with a PVD-applied TiAlN/TiN finish, this tip delivers extended tool life across a wide range of workpiece materials. It features a 1.0000-inch cutting diameter, a 90-degree drill point angle, and straight flutes with two flutes total. Coolant-through capability is integrated, supporting high-pressure coolant delivery directly to the cutting zone. The tip mounts via clamp into an insert seat size 25 and conforms to ANSI standards. Installation and replacement are performed by machinists and toolroom technicians on CNC drilling centers and machining centers.

This replaceable tip is suited for flat-bottom drilling, through-hole drilling, and coolant-through drilling operations on a broad spectrum of materials including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The ISO designation is TPF2540R01 IN2505. It is compatible with TPF-series drill bodies requiring a seat size 25 insert. The overall projection is 0.4450 inches and the functional length is 0.3700 inches, making it appropriate for shallow-to-moderate depth drilling applications where a flat-bottom entry is required.

Key Features

• Solid carbide construction with PVD TiAlN/TiN coating for heat and wear resistance
• Coolant-through design channels cutting fluid directly to the tip for chip evacuation and thermal control
• 90-degree included angle enables flat-bottom hole entry
• Grade IN2505 carbide substrate rated for steel, stainless, cast iron, non-ferrous, superalloys, and hard materials (material grades P15, P30, M15, M35, S05, S20)
• Two straight flutes for efficient chip removal in short-chipping and long-chipping materials
• Clamp-held insert seat size 25 for repeatable tip indexing without grinding

Compatibility

Designed for use with TPF-series indexable drill bodies requiring a seat size 25 replaceable tip. ISO designation TPF2540R01 IN2505 confirms fitment in compatible Ingersoll TPF drill assemblies.

Installation Notes

This tip is installed and replaced by machinists or toolroom technicians using the appropriate clamp key or torx wrench specified for the TPF drill body. Power down and lock out the machine spindle before removing or seating the insert. Ensure the insert pocket is clean and free of chips or debris before seating the new tip to prevent seating errors and premature tip damage. Verify coolant-through passages are clear and unobstructed before resuming operation.
