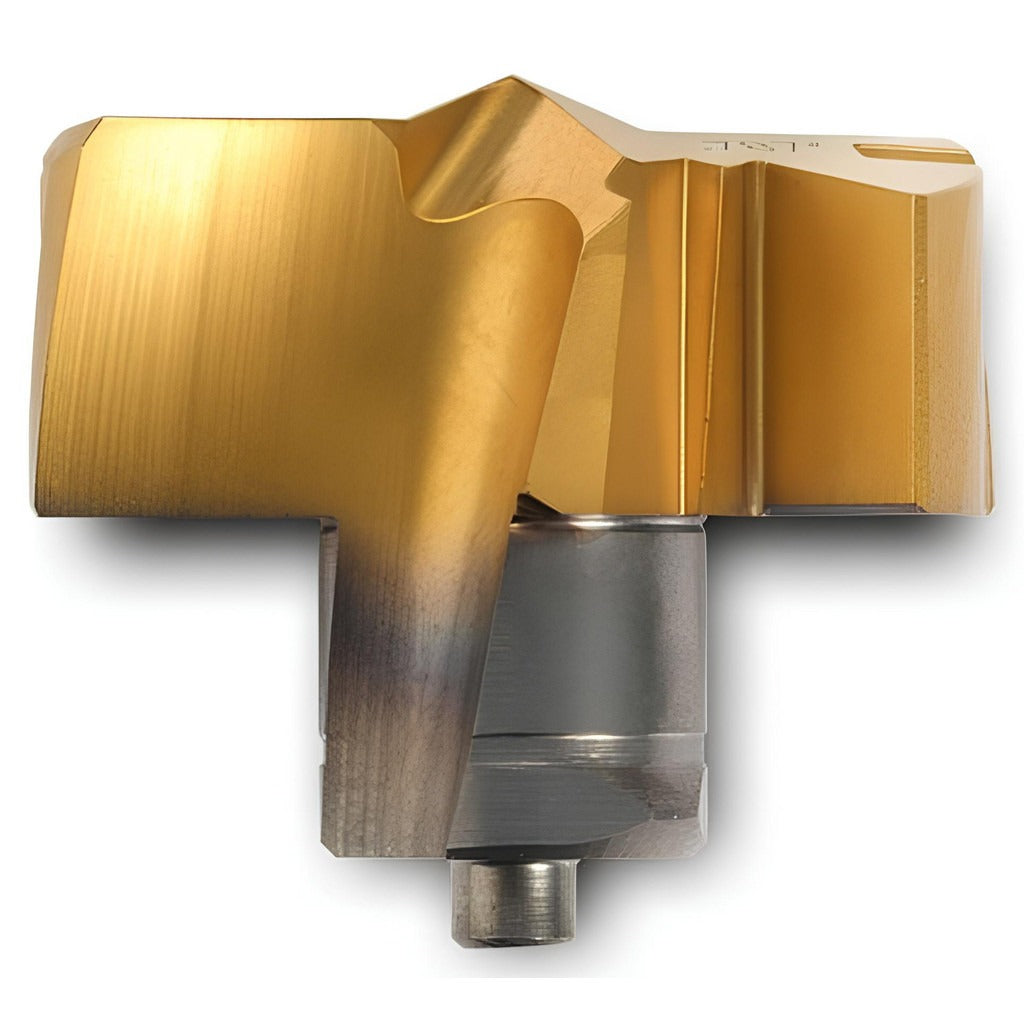

Ingersoll Cutting Tools 6125292 Drill Tip 17mm Carbide Tpf

Product Description

The INGERSOLL CUTTING TOOLS 6125292 is a replaceable solid carbide drill tip designed for use with modular drill bodies in high-productivity machining environments. Part of the TPF series, this tip features a 17.00mm cutting diameter, a 90-degree drill point angle, and a straight flute configuration. The PVD-applied TiAlN and TiN dual coating extends tool life and supports elevated cutting speeds across a broad range of workpiece materials. It is installed and replaced by machinists and tooling technicians as part of an indexable drilling system, reducing downtime compared to reground tooling.

This tip is suited for drilling operations in steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The coolant-through design channels cutting fluid directly to the cutting edge, making it well-suited for deep-hole drilling, flat-bottom hole applications, and high-feed drilling cycles where chip evacuation and thermal management are critical. Its ISO designation is TPF1750R01 IN2505, and the IN2505 grade is rated for material grades P15, P30, M15, M35, S05, and S20, covering a wide range of ISO workpiece classifications.

Key Features

• 17.00mm cutting diameter with 90-degree included angle for standard drill point geometry
• Solid carbide construction in manufacturer grade IN2505 for wear resistance and toughness
• PVD-applied TiAlN and TiN coating for extended tool life at elevated cutting temperatures
• Coolant-through capability for effective chip evacuation and edge cooling
• Straight flute, two-flute design optimized for flat-bottom and through-hole drilling
• Clamp-style insert holding for secure seating and repeatable positioning

Compatibility

Designed for use with modular drill bodies accepting TPF series replaceable tips with a 17mm insert seat size, per ISO designation TPF1750R01 IN2505. Confirm compatibility with the specific drill body model before ordering.

Installation Notes

Installation is performed by a machinist or tooling technician with the machine powered down and spindle locked. Use the appropriate torx or clamp screw driver as specified by the drill body manufacturer to seat the tip securely against the insert pocket. Do not overtighten or use impact tools on the clamping screw. Verify seating and runout before returning the tool to service.
