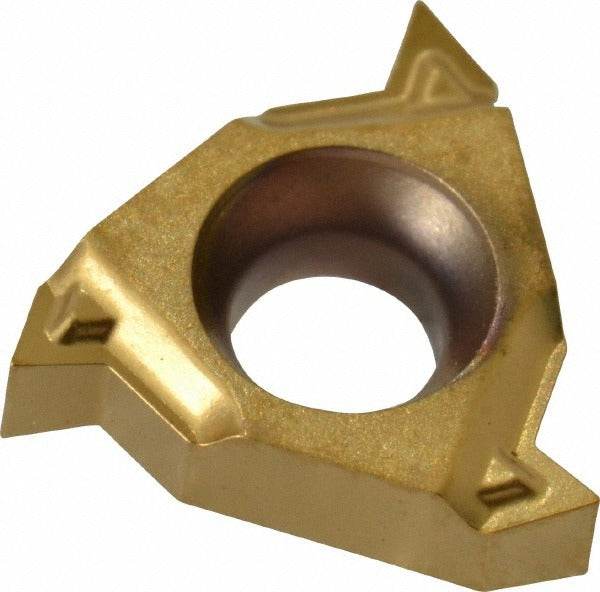

Ingersoll Cutting Tools 5920246 Threading Insert Iso 60 Degree

Product Description

The INGERSOLL CUTTING TOOLS 5920246 is a solid carbide laydown threading insert designed for external ISO thread cutting operations. Built to the 16ERM insert style with an inscribed circle of 0.188 inches, this insert handles a thread pitch range of 16 to 48 threads per inch, covering 1.50 mm pitch in the ISO standard. The bright uncoated finish is suited for applications where coating is not required or where base carbide grade IC50M offers the right wear resistance for the material being threaded. It is a right-hand insert with a 60-degree included angle and is installed in compatible laydown threading toolholders by machinists and tooling technicians.

This insert is used in CNC turning centers and manual lathes for cutting external ISO threads on a range of workpiece materials. The M chipbreaker geometry supports controlled chip flow during threading passes. Applications typically include threaded shaft production, fastener manufacturing, and precision component threading where ISO thread form accuracy is required. The T-THREAD series designation identifies the insert family for toolholder matching. Minimum order quantity is 5 units, with individual packaging per insert.

Key Features

• Solid carbide construction with bright uncoated finish for direct carbide-to-material contact
• Right-hand, external thread cutting geometry with 60-degree included angle
• Covers 16 to 48 threads per inch and 1.50 mm pitch ISO threading range
• M chipbreaker for controlled chip evacuation during threading operations
• Insert size code 08 with 0.188-inch inscribed circle for compact toolholder compatibility
• IC50M carbide grade engineered for threading performance across a range of workpiece materials

Compatibility

Designed for use in laydown threading toolholders accepting 16ERM-style inserts in the T-THREAD series. Confirm toolholder seat geometry and insert pocket dimensions before installation.

Installation Notes

Laydown threading inserts are installed by qualified machinists following standard CNC or manual lathe tooling procedures. Power down and lock out the machine before changing inserts. Use the appropriate torx or hex key to the toolholder manufacturer's specified seating procedure to ensure proper insert contact against the pocket seat. Inspect the insert pocket for debris or damage before seating a new insert.
