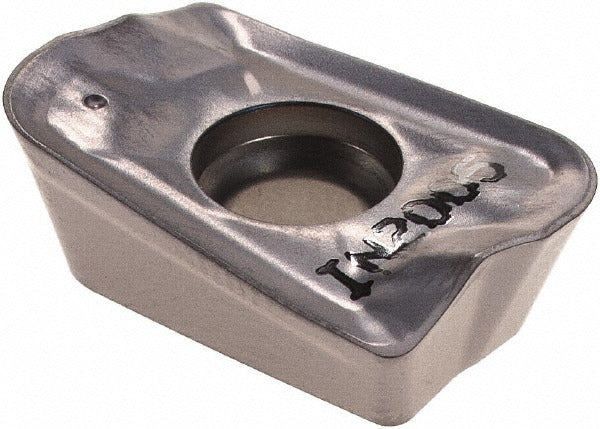

Ingersoll Cutting Tools 5873166 Milling Insert IN2005 Carbide

Product Description

The INGERSOLL CUTTING TOOLS 5873166 is a solid carbide milling insert designed for high-performance face and shoulder milling operations. Carrying the manufacturer grade IN2005 with a TiAlN PVD coating, this insert operates in the AOMT series and features a right-hand, parallelogram shape with a positive rake geometry. It measures 0.683 inches in length, 0.421 inches inscribed circle diameter, and 0.218 inches thick, with a 0.125 inch corner radius. Two sharp cutting edges make this insert well suited for demanding material removal on difficult-to-machine workpiece materials. Licensed machinists and tooling specialists install this insert in compatible AOMT-series cutter bodies.

This insert is intended for use in CNC milling applications across industries that regularly machine cast iron, stainless steel, carbon and alloy steel, superalloys, and titanium. The IN2005 grade with TiAlN coating provides the thermal resistance and edge toughness required for interrupted cuts and high-feed strategies common in aerospace, die and mold, and general metalworking environments. The screw-clamping holding method ensures repeatable seating and reliable edge security during tool changes in production settings.

Key Features

• Solid carbide substrate with TiAlN PVD coating for elevated heat and wear resistance
• Positive rake geometry reduces cutting forces and improves surface finish
• Two sharp cutting edges per insert for extended usable life
• Right-hand orientation with 85-degree included angle for precise corner and shoulder milling
• Screw-holding method ensures secure, repeatable insert clamping
• Conforms to both ANSI and ISO standards for broad toolholder compatibility

Compatibility

Designed for use with INGERSOLL CUTTING TOOLS cutter series 12J1G, 12L1G, 22J3G, 22J5G, 2J1G, and 2L1G. ANSI Code: AOMT170532R IN2005. ISO Code: AOMT170352R-IN2005. Insert size code 170532. Sold individually; minimum order quantity is 10 units.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician following the cutter body manufacturer's torque and seating procedures. Ensure the machine spindle is fully stopped and locked out before changing inserts. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Follow all applicable shop safety protocols and machine tool manufacturer guidelines when handling carbide inserts.
