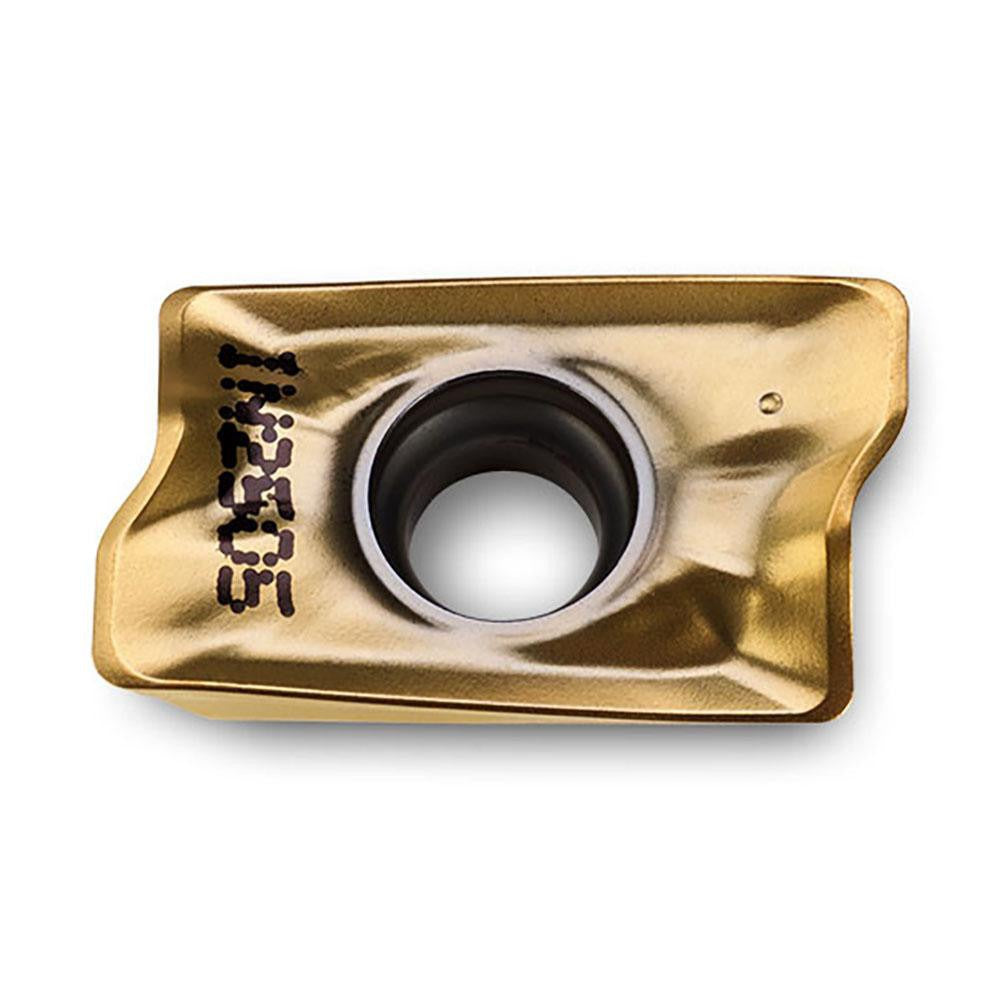

Ingersoll Cutting Tools 5873039 Milling Insert AOMT170508R

Product Description

The INGERSOLL CUTTING TOOLS 5873039 is a solid carbide milling insert in the AOMT series, designed for face and shoulder milling operations in metal cutting applications. This right-hand, single-sided insert carries grade IN2510 fine-grain carbide with a PVD-applied TiAlN and TiN dual-layer coating for extended tool life in demanding cuts. It measures 0.728 inches in length, 0.421 inches in inscribed circle diameter, and 0.218 inches thick. The parallelogram body features a sharp cutting edge style with a positive rake geometry and a 1/32 inch corner radius, providing clean chip formation across two cutting edges. Fixation is via screw clamp into compatible cutter bodies.

This insert is suited for milling cast iron and non-ferrous metals in both roughing and finishing passes where a positive rake insert reduces cutting forces and heat generation. The AOMT170508R profile with grade IN2510 is a common selection for face mills running in K and N material classes per ISO designation. It is installed by machinists and toolroom technicians in CNC and manual milling centers where insert-style tooling is specified. The screw-on holding method provides repeatable seating and indexing between edges.

Key Features

• IN2510 fine-grain solid carbide grade with PVD TiAlN and TiN dual coating for wear resistance
• Positive rake geometry with sharp cutting edge for reduced cutting forces on non-ferrous and cast iron workpieces
• 1/32 inch corner radius (0.0310 inches) for controlled corner engagement
• Two cutting edges per insert for extended usable life before replacement
• Right-hand orientation with screw-clamp holding method for secure, repeatable positioning
• Meets ANSI and ISO standards under code AOMT170508R IN2510

Compatibility

Designed for use with cutter series 12J1G, 12L1G, 12N1G, 22J3G, 22J5G, 2J1G, and 2L1G as specified by the manufacturer. Confirm cutter body pocket geometry and hand designation before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always power down and lock out the spindle before seating or indexing inserts. Use a calibrated torque screwdriver appropriate for the cutter body specification to avoid cracking the carbide substrate. Inspect the pocket seating surface for chips or debris before installing a new insert.
