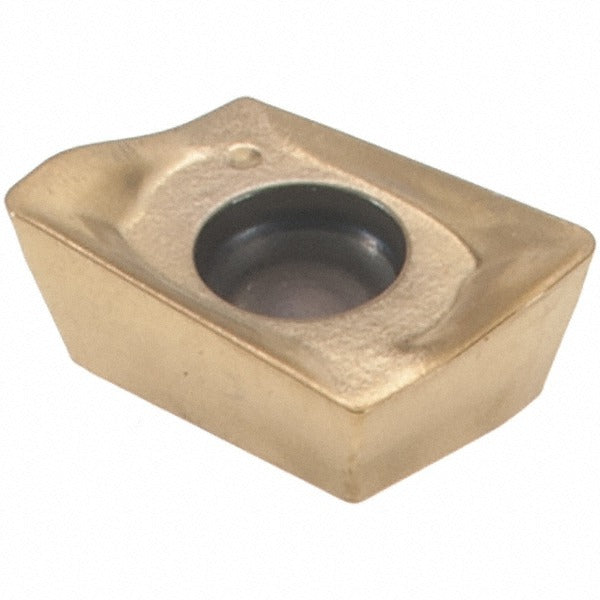

Ingersoll Cutting Tools 5813372 Milling Insert AOMT060204R

Product Description

The INGERSOLL CUTTING TOOLS 5813372 is a solid carbide milling insert in the AOMT series, designed for high-performance milling operations on steel, stainless steel, superalloys, and titanium. It carries manufacturer grade IN2530, a coarse-grain carbide substrate with a PVD-applied TiAlN and TiN coating for wear resistance and heat management at the cutting edge. The insert measures 0.228 inches in length, 0.166 inches in inscribed circle diameter, and 0.103 inches thick. It features a positive rake geometry with a sharp cutting edge style and a 0.015-inch corner radius. Licensed machinists and toolroom professionals install this insert in compatible milling cutter bodies using a screw-holding method.

This insert is suited for face milling, shoulder milling, and similar milling applications in both production and job-shop environments. Its positive rake and sharp edge make it effective for cutting steel and stainless steel workpieces where clean shear and reduced cutting forces are priorities. It is also rated for superalloys and titanium, making it a practical choice for aerospace, energy, and heavy industrial machining work. The right-hand designation and parallelogram insert shape define its orientation and seating in the cutter body. Each insert provides two cutting edges, extending useful tool life per piece.

Key Features

• Solid carbide construction with coarse-grain substrate for toughness in interrupted and continuous cuts
• PVD TiAlN and TiN dual coating for elevated heat resistance and extended edge life
• Positive rake geometry with sharp cutting edge style reduces cutting forces on difficult materials
• Two cutting edges per insert for cost efficiency in high-volume milling operations
• 0.015-inch corner radius balances edge strength with surface finish quality
• Right-hand orientation with screw-holding method for secure, repeatable seating

Compatibility

Compatible with Ingersoll cutter series 12_1D, 12J1D, and 22J3D. Conforms to ANSI and ISO standards under code AOMT060204R IN2530.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always power down and lock out the spindle before changing inserts. Use the designated clamping screw and a calibrated torque driver to seat the insert securely in the pocket without over-torquing the screw. Inspect the pocket and seating surfaces for chips or debris before installing a fresh insert to ensure proper contact and runout.
