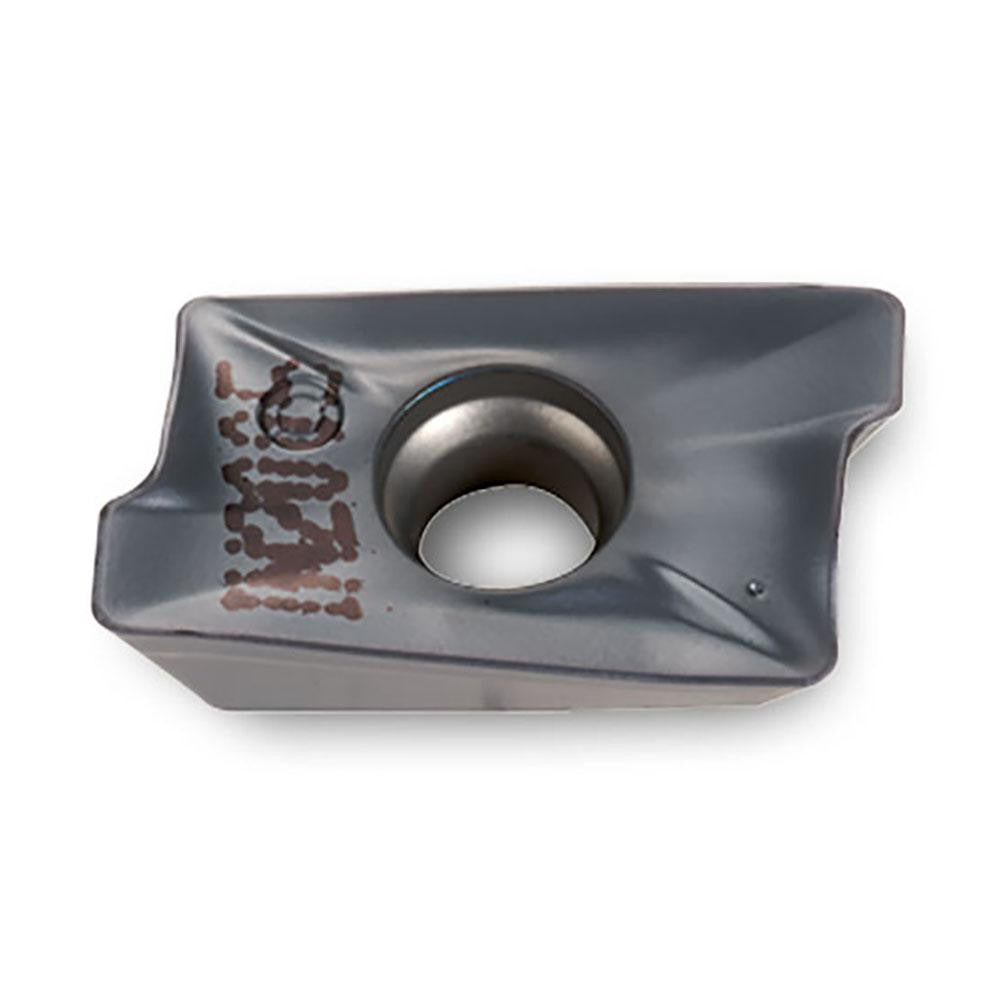

Ingersoll Cutting Tools 5804906 Milling Insert AOMT180508R IN2005

Product Description

The INGERSOLL CUTTING TOOLS 5804906 is a solid carbide milling insert designed for high-performance material removal in demanding milling applications. Identified by ISO code AOMT180508R IN2005 and ANSI code APEH64R01 IN2005, this insert features a parallelogram shape with a positive rake geometry and an 11-degree relief angle. The cutting edge is sharp-ground with a corner radius of 0.031 inches, delivering clean entry and reduced cutting forces. A PVD-applied TiAlN coating provides thermal resistance and wear protection across extended tool life. The insert is secured by screw clamping and is intended for installation by machinists and tooling technicians in CNC milling operations.

This insert is suited for milling cast iron, stainless steel, carbon and alloy steel, superalloys, and titanium. It carries primary workpiece material codes P, M, K, and S under ISO classification, covering a broad range of production machining scenarios. Compatible cutter series include 12J1E, 12S1E, 22J3E, 23J6G, 2J1E, and 4W2A from INGERSOLL CUTTING TOOLS. The right-hand configuration and single-sided design make it a straightforward drop-in for qualifying toolholders in those families.

Key Features

• Solid carbide micrograin substrate for rigidity and edge retention under interrupted cuts
• PVD TiAlN coating delivers heat resistance and reduced built-up edge across workpiece material codes P, M, K, and S
• Positive rake geometry with 11-degree relief angle reduces cutting forces and heat generation
• Sharp cutting edge style with 0.031-inch corner radius for clean finish in steel and superalloy milling
• 2 cutting edges per insert on a single-sided parallelogram body
• Screw-clamp holding method ensures repeatable seating and positioning in compatible cutter bodies

Compatibility

Compatible with INGERSOLL CUTTING TOOLS cutter series 12J1E, 12S1E, 22J3E, 23J6G, 2J1E, and 4W2A. Conforms to ANSI and ISO insert standards. ISO code AOMT180508R IN2005; ANSI code APEH64R01 IN2005.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before removing or installing inserts. Use the correct torque wrench and manufacturer-specified screw hardware when seating the insert to avoid clamping surface damage. Inspect the cutter pocket and clamping screw for wear or debris before installation to ensure accurate insert positioning.
