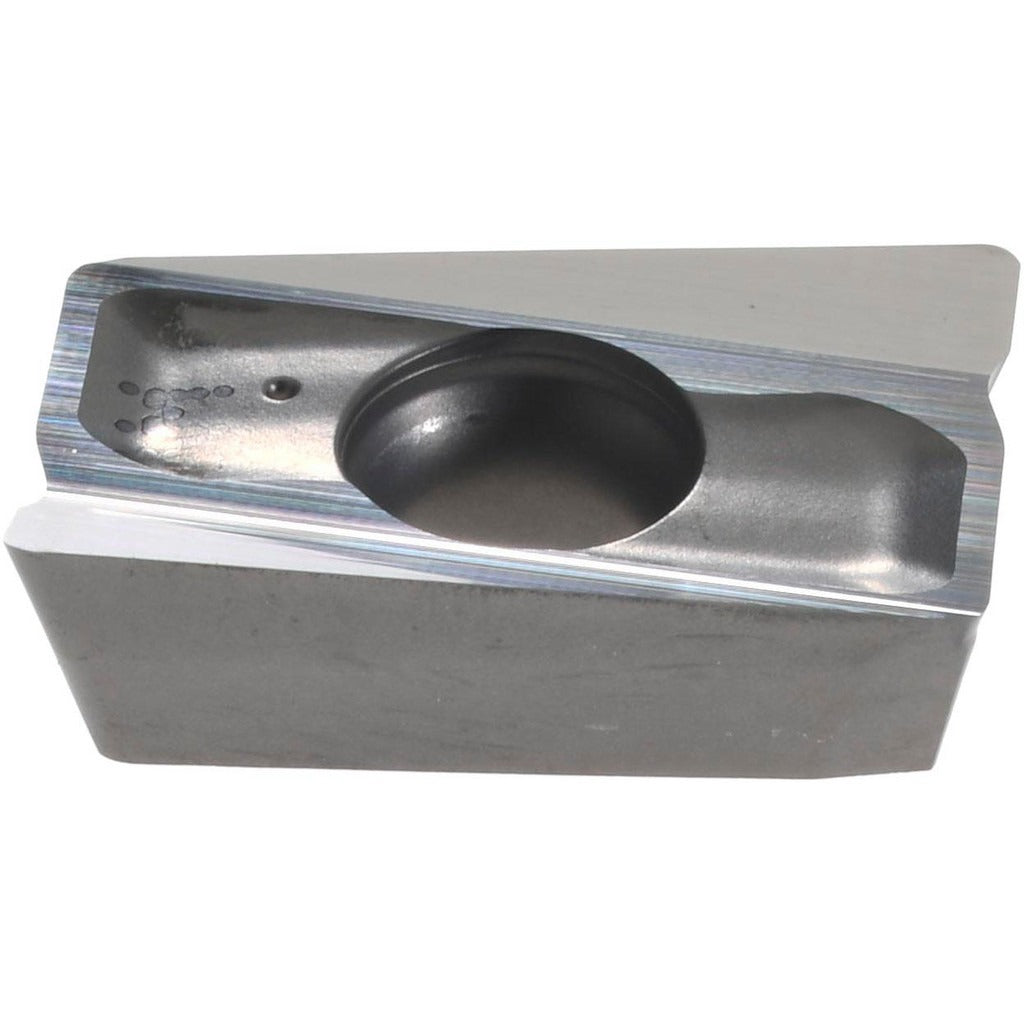

Ingersoll Cutting Tools 5802407 Milling Insert IN30M

Product Description

The INGERSOLL CUTTING TOOLS 5802407 is a solid carbide milling insert designed for precision material removal in metalworking applications. Manufactured to ISO designation APCT160408FR-HS and ANSI code APLS53R01 S IN30M, this parallelogram-shaped insert features a bright uncoated finish in the IN30M coarse grain carbide grade. It delivers 2 cutting edges per insert with a sharp cutting edge style, a positive rake geometry, and an 11-degree relief angle. The corner radius measures 0.031 inches, and the insert is screw-held for secure toolholder engagement. Licensed machinists and toolroom technicians use this insert for high-precision milling work.

This insert is intended for use on non-ferrous metal workpieces, making it well suited for aluminum, copper, brass, and similar materials where sharp, uncoated carbide geometry excels. The right-hand cutting orientation and positive rake are optimized to reduce cutting forces and deliver clean surface finishes in light to moderate milling cuts. It is a single-sided insert with no chip breaker, which is appropriate for applications requiring unobstructed chip flow on gummy or ductile non-ferrous stock.

Key Features

• Solid carbide construction in IN30M coarse grain grade for toughness in non-ferrous milling
• Bright uncoated finish preserves sharp edge geometry on aluminum and other non-ferrous metals
• Positive rake angle with 11-degree relief reduces cutting forces and heat generation
• Sharp cutting edge style with 0.031-inch corner radius for clean surface finish
• Right-hand orientation, screw-held insert holding method for repeatable seating
• 2 cutting edges per insert; single-sided design

Compatibility

Compatible with the following cutter series: 12J1B, 12N1B, 12S1B, 22J3B, 22J5B, and 2J1B. This insert conforms to ANSI and ISO standards and carries insert size code 53 within the APLS series.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians following standard indexable insert procedures. Power down and lock out the machine spindle before seating or indexing the insert. Use the correct torx or hex key to tighten the clamping screw to the toolholder manufacturer's specified torque - do not overtighten, as carbide inserts are brittle and will crack under excess clamping force. Inspect the insert pocket seat and screw for wear or contamination before installation to ensure proper seating and runout.
