Ingersoll Cutting Tools 5801934 Milling Insert IN1030

Product Description

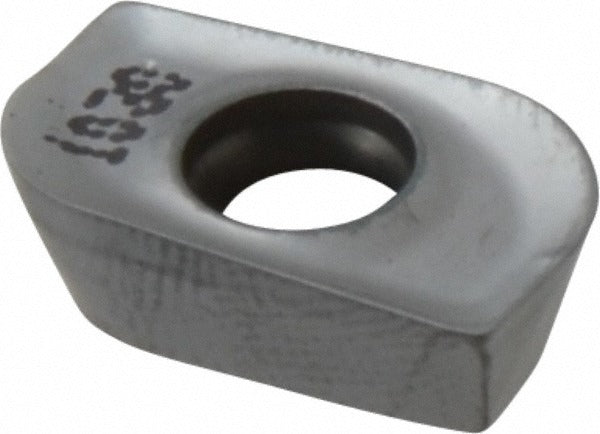

The INGERSOLL CUTTING TOOLS 5801934 is a solid carbide milling insert designed for high-performance metal cutting in demanding machining environments. Offered in the APKT160448R ISO geometry with manufacturer grade IN1030, this right-hand, single-sided insert features a TiCN coating applied via PVD process, which provides excellent wear resistance and edge integrity. The parallelogram-shaped insert carries a positive rake angle, an 11-degree relief angle, and two cutting edges per insert. It measures 0.636 inches in length, 0.375 inches in inscribed circle diameter, and 0.206 inches thick. Coarse grain carbide substrate supports high toughness in interrupted cuts. Installed by machinists and toolroom technicians on compatible milling cutters.

This insert is intended for milling operations on steel, stainless steel, superalloys, and titanium workpieces - material application codes P, M, and S. It fits into screw-held insert pockets and is suited for both roughing and finishing passes where a sharp cutting edge style is specified. The positive rake geometry helps reduce cutting forces on difficult-to-machine alloys. Compatible cutter series include 12J1B, 12J4B, 22J3B, 22J5B, 23J6G, and 2J1B. Sold individually; minimum order quantity is 10 inserts.

Key Features

• Solid carbide construction with coarse grain substrate for toughness and edge retention
• TiCN PVD coating for improved wear resistance across steel, stainless, and superalloy cuts
• Positive rake, sharp cutting edge style reduces cutting forces on difficult alloys
• Right-hand, single-sided parallelogram insert with 2 usable cutting edges
• 11-degree relief angle and 0.187-inch corner radius reduce chipping at the edge
• Conforms to ANSI code APEB53R06 IN1030 and ISO code APKT160448R

Compatibility

Designed for use with INGERSOLL cutter series 12J1B, 12J4B, 22J3B, 22J5B, 23J6G, and 2J1B. Insert is secured by screw-holding method in compatible toolholders accepting the APEB53 insert size.

Installation Notes

Installation is performed by machinists or toolroom technicians using the appropriate torx or hex key for the insert clamping screw - consult the cutter body documentation for fastener size and recommended seating procedure. Always de-energize and lock out the machine spindle before changing inserts. Inspect the insert pocket seating surface for chips or debris before seating the new insert to ensure proper contact and tool height repeatability. Do not reuse damaged or excessively worn inserts.
