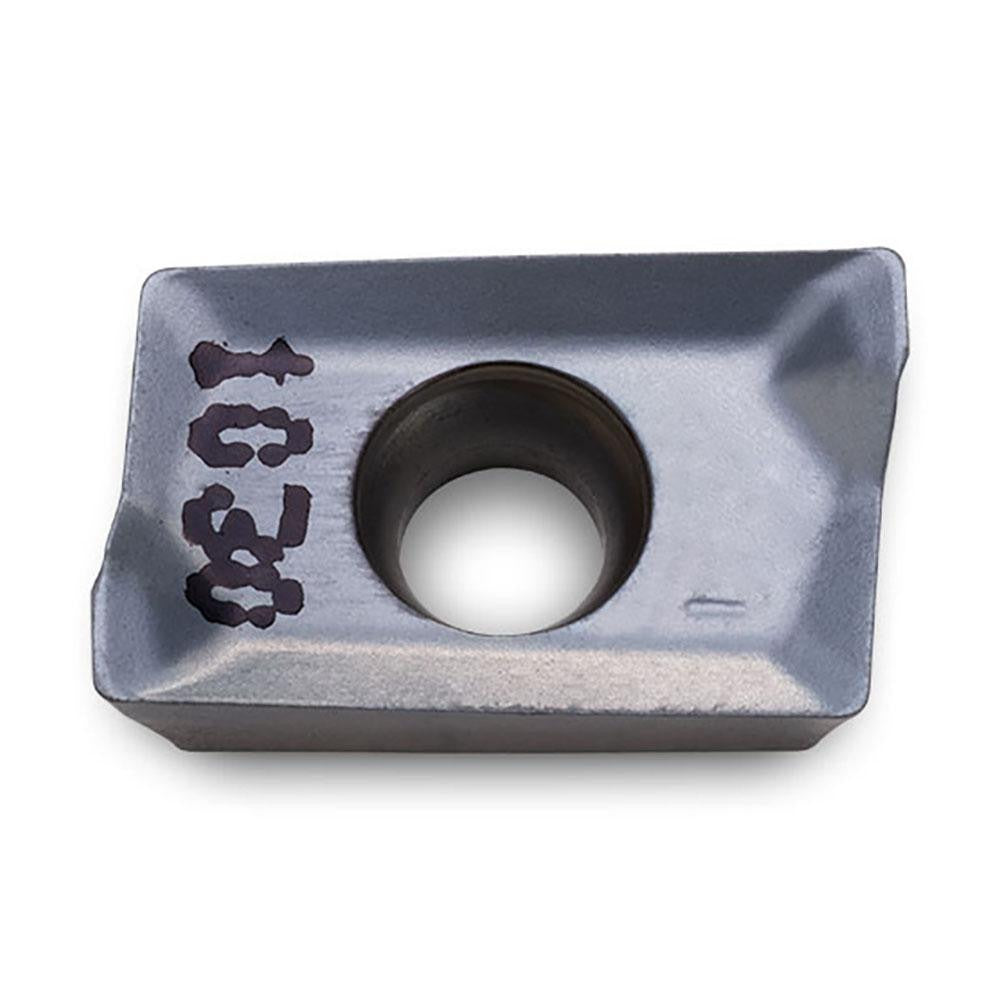

Ingersoll Cutting Tools 5801128 Milling Insert Solid Carbide

Product Description

The INGERSOLL CUTTING TOOLS 5801128 is a solid carbide milling insert designed for high-efficiency material removal in non-ferrous metal applications. Identified by ISO code APKT120304R-HS IN30M and ANSI code APLV42R02 IN30M, this insert features a parallelogram shape with a positive rake angle and sharp cutting edge style. The uncoated, bright-finish IN30M coarse-grain carbide grade delivers consistent performance on aluminum, copper, brass, and similar non-ferrous workpiece materials. With two cutting edges per insert and a right-hand orientation, it is engineered for screw-held toolholders in the APLV series.

This insert is suited for face milling, shoulder milling, and high-feed milling operations on CNC machining centers and manual mills processing non-ferrous metals. The HS chip breaker geometry promotes smooth chip evacuation, reducing built-up edge on gummy materials like aluminum alloys. Shops running production runs or job-shop work on non-ferrous components will find the IN30M grade well matched to high surface-speed conditions. A minimum order quantity of 10 units applies, with individual packaging per insert.

Key Features

• Solid carbide construction with coarse-grain IN30M grade optimized for non-ferrous metals
• Uncoated bright finish reduces material adhesion on aluminum and copper alloys
• Positive rake angle with sharp cutting edge for low cutting forces
• HS chip breaker promotes efficient chip control at high surface speeds
• Right-hand, single-sided insert with screw-held mounting for secure toolholder engagement
• Two cutting edges per insert extend usable tool life per unit

Compatibility

Compatible with APLV-series cutter bodies including series 12_1Q, 12J1Q, 12S1Q, 22J*Q, 22J3Q, and 2J1Q. Conforms to ANSI and ISO insert standards.

Installation Notes

Installation is performed by machining technicians or toolroom personnel. Power down and lock out the machine spindle before seating or indexing the insert. Use the manufacturer-specified torx or hex key at the recommended clamp screw torque for the toolholder body - refer to the cutter body documentation for fastener specifications. Inspect the insert pocket seating surface for chips or debris before mounting to ensure full contact and prevent premature edge failure.
