Ingersoll Cutting Tools 5614086 Milling Insert Carbide

Product Description

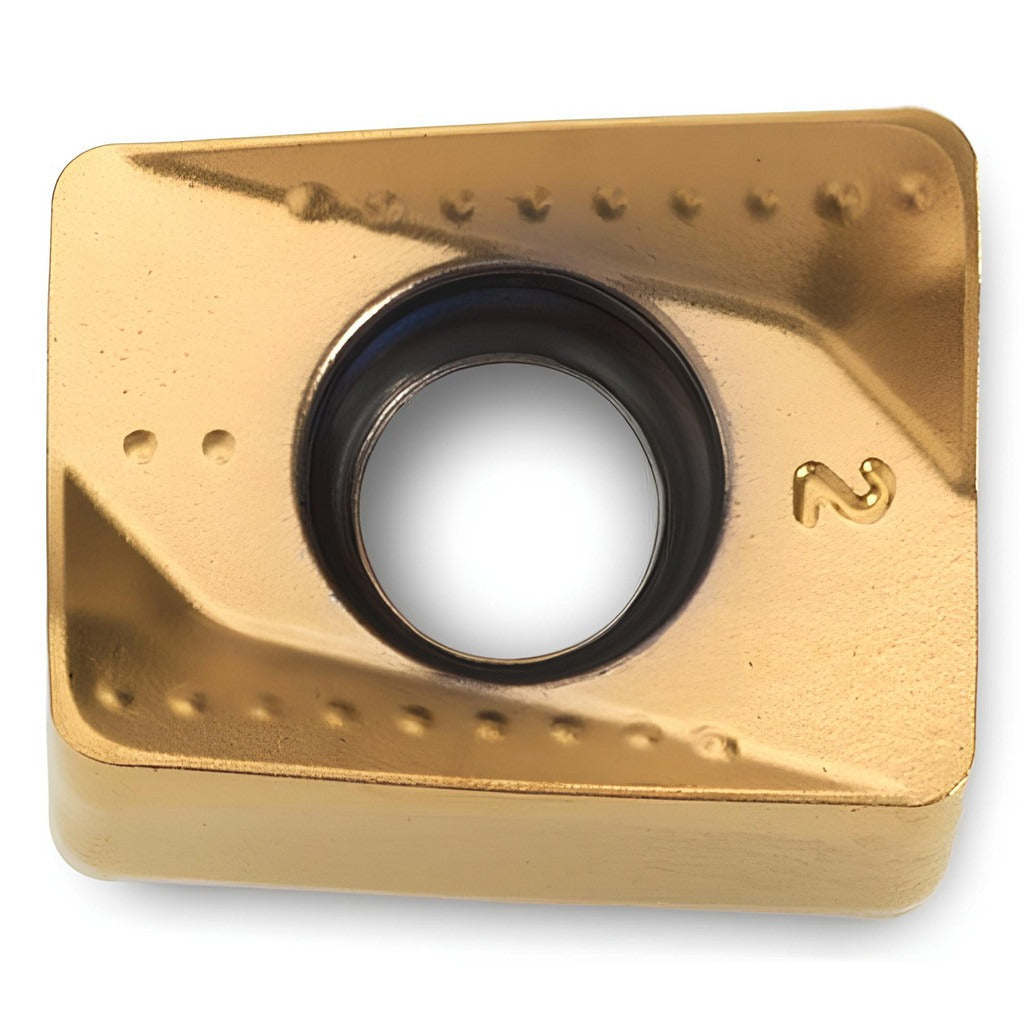

The INGERSOLL CUTTING TOOLS 5614086 is a solid micrograin carbide milling insert designed for high-performance face and shoulder milling operations. Featuring an ANXU rectangular insert style with a right-hand orientation and negative rake geometry, this insert carries a PVD-applied TiAlN and TiN dual coating in manufacturer grade IN2505. With four usable cutting edges and a double-sided configuration, it delivers extended tool life in demanding cutting environments. The insert measures 0.472 inches in length, 0.362 inches in width, and 0.338 inches in thickness, with a 1/32-inch corner radius. It is installed via screw-holding method and conforms to both ANSI and ISO standards.

This insert is suited for milling steel, stainless steel, cast iron, superalloys, titanium, and hard materials across a range of workpiece material codes P, M, K, S, and H. It is appropriate for use in production and job-shop environments where consistent edge performance on difficult-to-machine materials is required. The ANXU series design makes it compatible with cutter bodies in the 1TJ1Q and TJ5Q series. Licensed machinists and toolroom technicians are the primary installers in CNC and manual milling applications.

Key Features

• Solid micrograin carbide substrate for high hardness and wear resistance
• PVD TiAlN and TiN dual coating improves heat resistance and edge retention
• Double-sided insert with 4 cutting edges reduces per-edge tooling cost
• Negative rake geometry with sharp cutting edge style for controlled chip formation
• 1/32-inch corner radius balances edge strength and surface finish
• Conforms to ANSI and ISO standards, ANSI/ISO code ANXU120608R IN2505

Compatibility

Compatible with INGERSOLL CUTTING TOOLS cutter series 1TJ1Q and TJ5Q. Designed as a screw-held replacement insert for ANXU-style milling cutter bodies conforming to ANSI and ISO insert standards.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before seating or indexing inserts. Use the manufacturer-specified torque wrench and insert screw for the cutter body to avoid seat damage or screw failure. Inspect the insert pocket and clamping screw for wear or debris before installing a new insert.
