Ingersoll Cutting Tools 5120131 Replaceable Drill Tip 13mm

Product Description

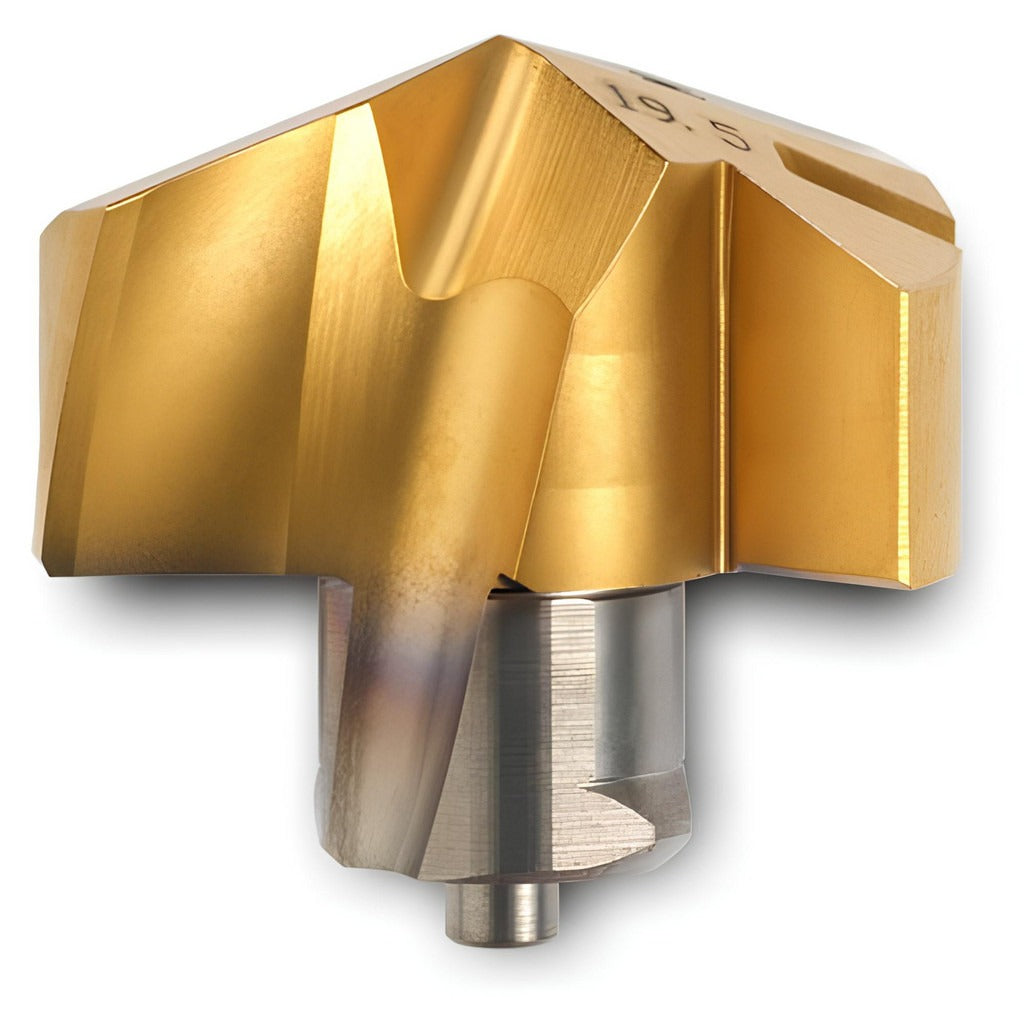

The INGERSOLL CUTTING TOOLS 5120131 is a replaceable drill tip designed for indexable drilling systems used in precision machining environments. Manufactured from solid carbide with a TiAlN/TiN PVD coating, this tip delivers extended tool life and heat resistance in demanding cutting applications. It carries a 140-degree point angle and features a helical flute design with two flutes, making it well-suited for controlled chip evacuation. The tip seats in an Insert Seat Size 13 and supports coolant-through delivery for thermal management during high-speed drilling operations. Licensed machinists and toolroom technicians working on CNC machining centers are the primary users of this insert style.

This replaceable drill tip is engineered for drilling and spot drilling applications in stainless steel and other ISO M-class workpiece materials, including austenitic and ferritic grades. The TMA series style and Grade IN2505 carbide substrate with M15/M35 material grade classification make it appropriate for wet and coolant-through setups in production environments. It conforms to ANSI standards and carries the ISO designation TMA1300R01 IN2505. Typical installations involve horizontal or vertical CNC machining centers where indexable drill bodies accept TMA-series replaceable tips and clamp holding is used.

Key Features

• Solid carbide substrate with TiAlN/TiN PVD coating for heat resistance and extended wear life
• 140-degree included point angle for reduced thrust force and accurate entry
• Coolant-through capability for chip flushing and thermal control at the cutting edge
• Two helical flutes with regular spiral for consistent chip flow
• Insert Seat Size 13 with clamp holding method for secure, repeatable indexing
• Rated for ISO M-class workpiece materials including stainless steel grades M15 and M35

Compatibility

Designed for use in TMA-series indexable drill bodies that accept Insert Seat Size 13 replaceable tips with clamp-style holding. Conforms to ANSI standards with ISO designation TMA1300R01 IN2505. Verify seat size and body compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the spindle fully stopped and machine power isolated. Use the appropriate torx or clamp screw driver specified by the drill body manufacturer to seat the tip firmly without overtightening. Ensure the coolant-through ports in the tip align with the body coolant channels before final clamping. Inspect the seat for chips or contamination before each tip change to maintain runout tolerances.
