Ingersoll Cutting Tools 5120067 Replaceable Drill Tip 17 Mm

Product Description

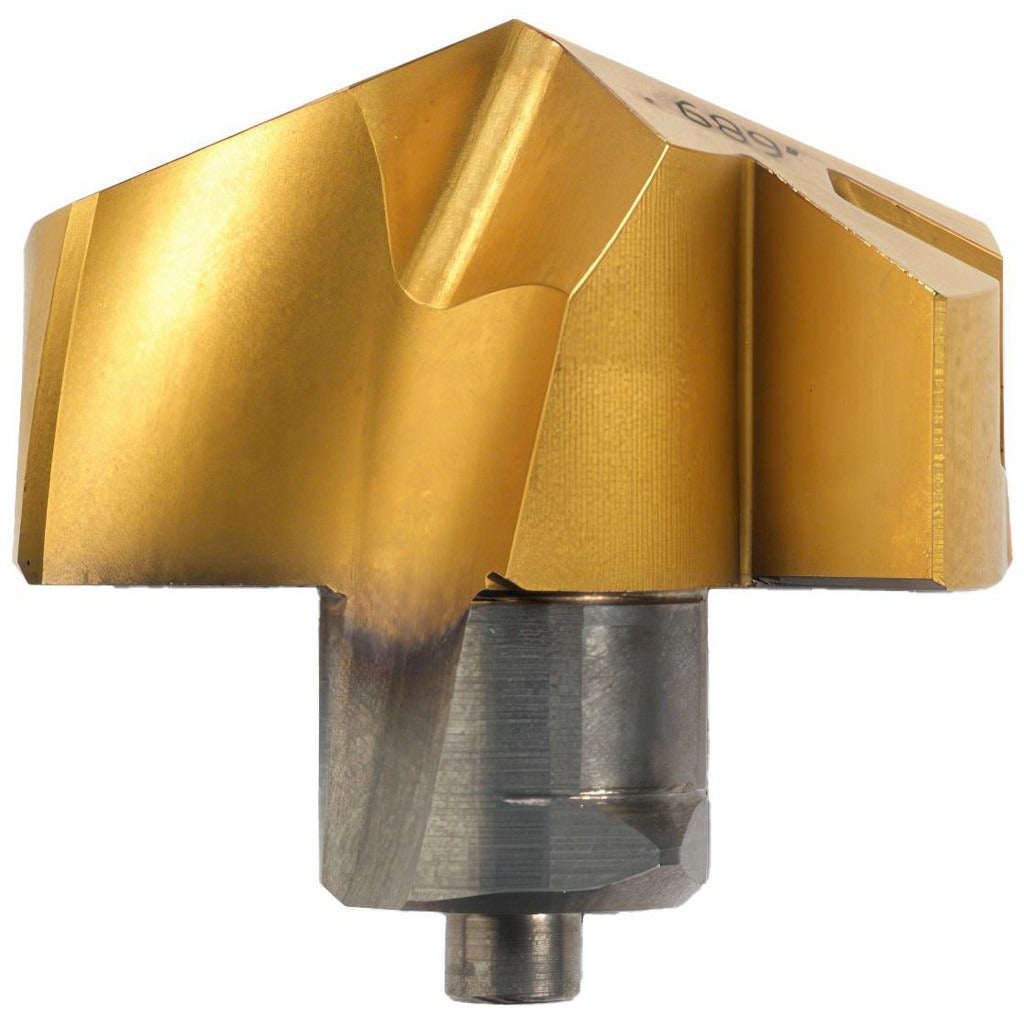

The INGERSOLL CUTTING TOOLS 5120067 is a replaceable drill tip engineered for precision drilling in steel and similar P-class workpiece materials. Carrying ISO designation TPA1670R01 IN2505, this tip features a 17.00 mm cutting diameter and a 140-degree drill point angle suited for standard entry and spot drilling applications. The solid carbide construction is finished with a PVD-applied TiAlN/TiN dual coating that extends tool life under demanding cutting conditions. Internal coolant-through channels deliver cutting fluid directly to the cutting zone, reducing heat buildup and improving chip evacuation. Licensed machinists and CNC operators install this tip as part of a modular indexable drill system.

This replaceable drill tip is designed for use in steel machining operations, including through-hole drilling and spot drilling on CNC machining centers and drill presses equipped with coolant-through spindle capability. It seats into insert seat size 16 toolholders within the TPA series modular drill platform. Applicable workpiece material grades are P15 through P30, making it well suited for carbon steels, alloy steels, and similar ferrous materials commonly encountered in general machining and production environments.

Key Features

• 17.00 mm cutting diameter with a 140-degree standard drill point angle
• Solid carbide tip in manufacturer grade IN2505 for wear resistance in steel
• PVD-applied TiAlN/TiN dual coating for extended tool life and heat resistance
• Coolant-through design channels fluid directly to the cutting edge
• Two helical flutes with regular spiral for consistent chip evacuation
• Clamp-style insert holding method compatible with TPA series seat size 16 holders

Compatibility

Designed as a direct-fit replaceable tip for TPA series modular indexable drill toolholders using insert seat size 16, as identified by ISO designation TPA1670R01 IN2505. Meets ANSI standards. UNSPSC Code: 23242105.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with indexable drill systems. Ensure the spindle is fully stopped and the machine is locked out before seating or removing the drill tip. Clean the seat pocket and mating surfaces before installation to ensure proper seating and accurate runout. Verify coolant-through passages are clear and aligned with the holder before resuming operation.
