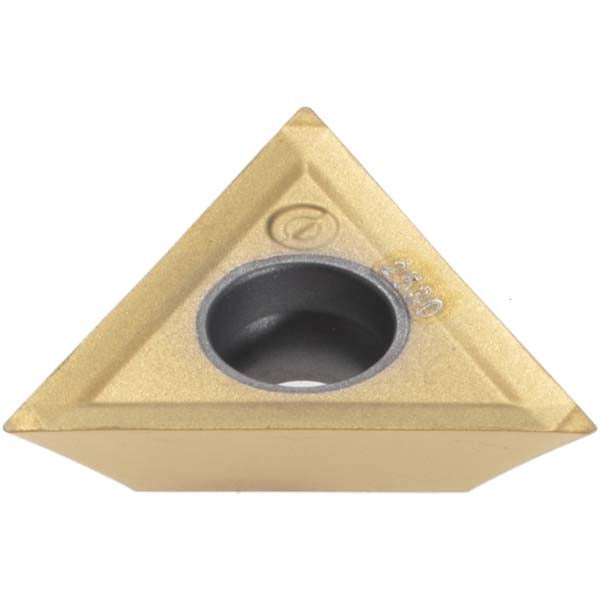

Ingersoll Cutting Tools 5110213 Indexable Drill Insert

Product Description

The INGERSOLL CUTTING TOOLS 5110213 is a carbide indexable drill insert designed for use in indexable drilling operations on CNC machining centers and drill presses. It carries the TFLT15TF insert style in grade IN2530, featuring a PVD-applied TiAlN and TiN dual coating for extended tool life and thermal resistance. The insert has a 60-degree triangle shape with three cutting edges, a 0.554-inch inscribed circle, a thickness of 0.156 inches, and a corner radius of 0.010 inches. The positive rake geometry and TF chipbreaker promote controlled chip formation and reduced cutting forces in demanding materials. Licensed machinists, toolroom technicians, and CNC operators install this insert in production and job-shop environments.

This insert is suited for drilling steel, stainless steel, super-alloys, and titanium - ISO material groups P, M, and S. It is designed for use in FAK-style compatible drills and matches the TFLT series insert system. The neutral cutting direction makes it appropriate for standard drilling applications without directional restriction. Typical use cases include through-hole and blind-hole drilling in aerospace, automotive, and general metalworking production runs where consistent tool life and chip control across tough materials are required.

Key Features

• Carbide substrate with PVD TiAlN and TiN dual coating for heat and wear resistance
• 60-degree triangle shape with three usable cutting edges to extend insert value
• Positive rake geometry with TF chipbreaker for controlled chip formation
• 0.010-inch corner radius for edge strength in interrupted cuts and tough alloys
• IN2530 grade optimized for steel, stainless steel, super-alloys, and titanium
• Compatible with FAK-style indexable drill bodies in the TFLT insert series

Compatibility

Designed for use with FAK-style compatible indexable drill bodies accepting TFLT series inserts, insert size code 15. ANSI code TFLP32-03 J; ISO code TFLT15T303N.

Installation Notes

Installation is performed by qualified machinists or CNC toolroom personnel. Power down and lock out the machine spindle before seating or indexing the insert. Use the correct torx or hex key to the tool manufacturer's specified seating procedure - do not overtighten the clamping screw. Inspect the insert pocket for chips or debris before each insert change to ensure proper seating and runout.
