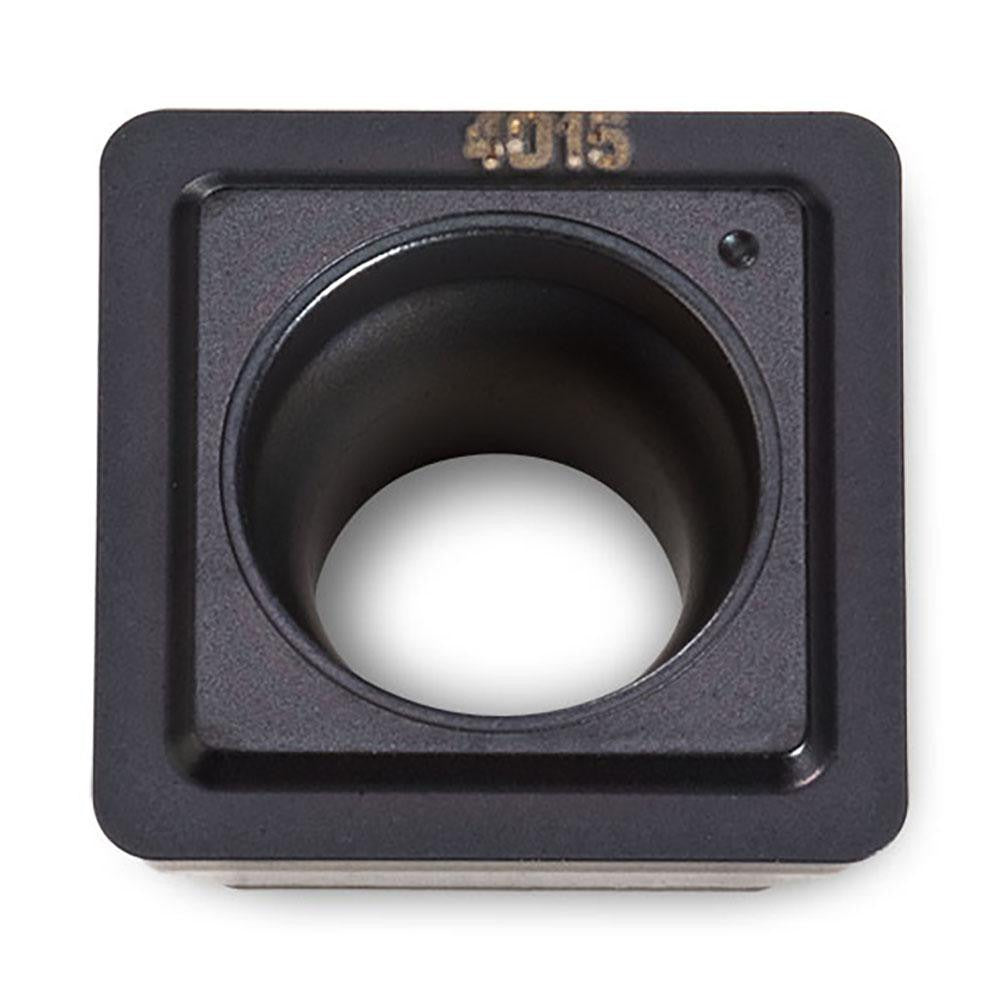

Ingersoll Cutting Tools 5100996 Indexable Drill Insert

Product Description

The INGERSOLL CUTTING TOOLS 5100996 is a square indexable drill insert designed for use in indexable drilling applications across metalworking and machining operations. Built to the SHLT090408N-FS standard, this insert carries the IN1030 manufacturer grade and features a PVD-applied TiCN coating that extends cutting life in demanding environments. The insert geometry delivers a positive rake angle with a neutral cutting direction and an FS chipbreaker for controlled chip evacuation. With a 0.372-inch inscribed circle, 0.181-inch thickness, and a 0.030-inch corner radius, it is engineered for dimensional consistency and repeatable insert indexing. Four cutting edges maximize tool economy per insert.

This insert is intended for use in compatible indexable drills within the 15S and DHU drill styles. It is suited for machining steel, stainless steel, super-alloys, and titanium, corresponding to material grade classifications C1, C2, and C6. Typical applications include production drilling in job shop and manufacturing environments where consistent hole quality and tool life across high-strength workpiece materials are required. Licensed machinists and CNC operators working with indexable drilling systems will find this insert fits standard SHLT-series toolholders.

Key Features

• IN1030 grade carbide substrate with PVD TiCN coating for wear resistance on steel and high-alloy materials
• Positive rake, neutral cutting direction with FS chipbreaker for effective chip control
• Square insert shape with 90-degree included angle and four usable cutting edges
• 0.372-inch inscribed circle and 0.030-inch corner radius per ANSI/ISO code SHLT090408N-FS
• Compatible with 15S and DHU indexable drill styles
• PVD coating process preserves edge sharpness and substrate integrity at the cutting edge

Compatibility

Designed for use with compatible 15S and DHU indexable drill styles using SHLT-series insert seats. Insert size code 09, ANSI and ISO designation SHLT090408N-FS.

Installation Notes

Insert seating and torque should follow the toolholder manufacturer specifications for SHLT-seat indexable drills. Always power down and lock out the machine spindle before indexing or replacing inserts. Use the correct Torx or hex key as specified by the drill body manufacturer to secure the clamping screw. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert to ensure proper contact and repeatability.
