Ingersoll Cutting Tools 4208162 Replaceable Drill Tip 22mm

Product Description

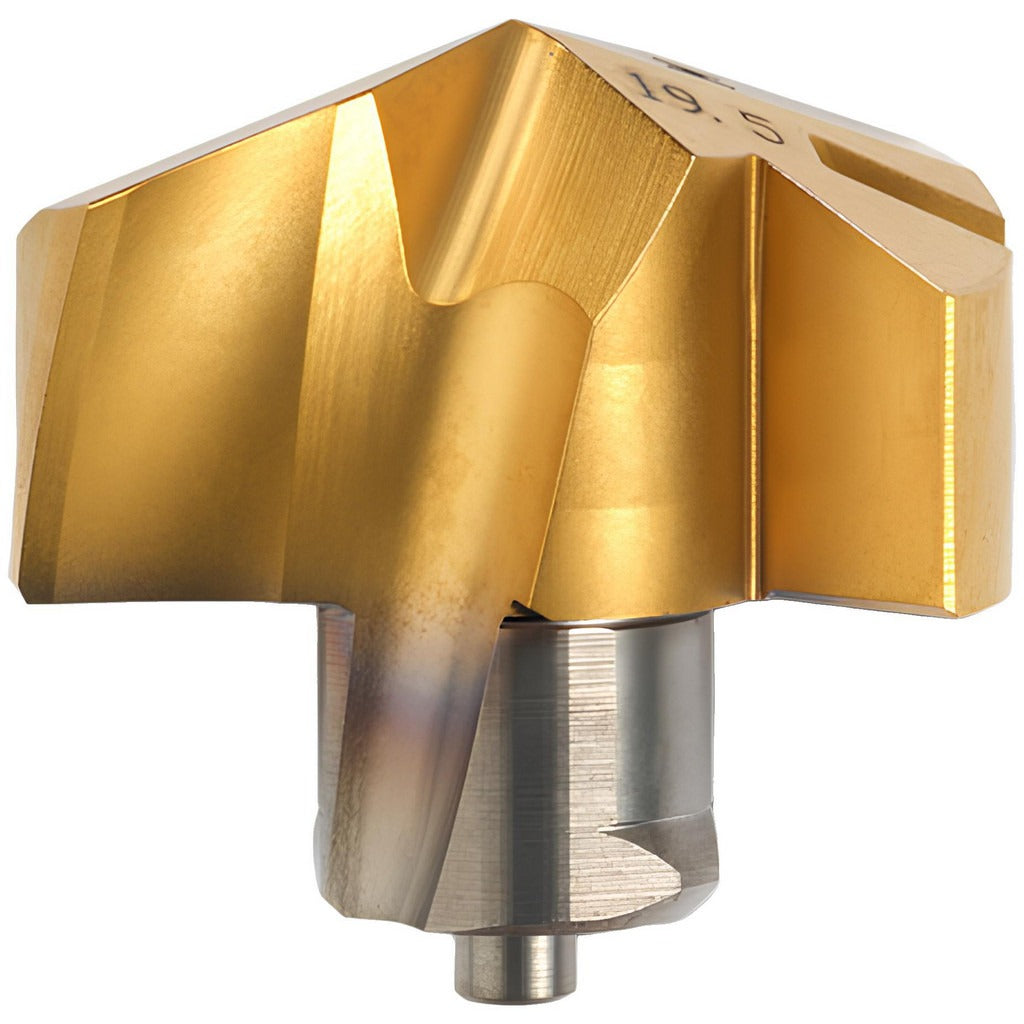

The INGERSOLL CUTTING TOOLS 4208162 is a replaceable drill tip designed for high-performance drilling in demanding machining environments. Identified by ISO number TMA2240R01 IN2505, this tip is constructed from solid carbide and coated with a PVD-applied TiAlN/TiN dual coating for extended wear resistance and thermal stability. The 22.00 mm cutting diameter and 140-degree point angle make it well suited for accurate hole entry and clean chip evacuation. It features two helical flutes and integrated coolant-through capability, supporting high-speed, high-feed drilling strategies. Machinists and CNC operators install this tip into compatible TMA-series modular drill bodies.

This replaceable drill tip is engineered primarily for drilling and spot drilling in stainless steel, corresponding to ISO material group M (M15, M35). The TMA series modular design allows quick tip changes at the machine without removing the drill body, reducing downtime in production environments. Coolant-through delivery keeps the cutting zone temperature controlled and aids chip flushing in deep-hole applications. It is appropriate for both horizontal and vertical machining centers in industrial manufacturing and job-shop settings.

Key Features

• 22.00 mm cutting diameter with a 140-degree included point angle for accurate hole entry
• Solid carbide construction with PVD-applied TiAlN/TiN coating for heat and wear resistance
• Coolant-through design for effective chip evacuation and thermal management
• Two helical flutes with regular spiral geometry for consistent chip flow
• Clamp-held insert in seat size 22 for secure, repeatable seating in TMA-series bodies
• ISO grade IN2505 optimized for stainless steel (M15, M35) machining

Compatibility

Designed for use with TMA-series modular drill bodies accepting seat size 22 inserts. ISO designation TMA2240R01 IN2505 identifies the correct body and seat pairing. Verify seat size and series compatibility with the drill body before installation.

Installation Notes
