Ingersoll Cutting Tools 2913901 Milling Insert IN4030 Carbide

Product Description

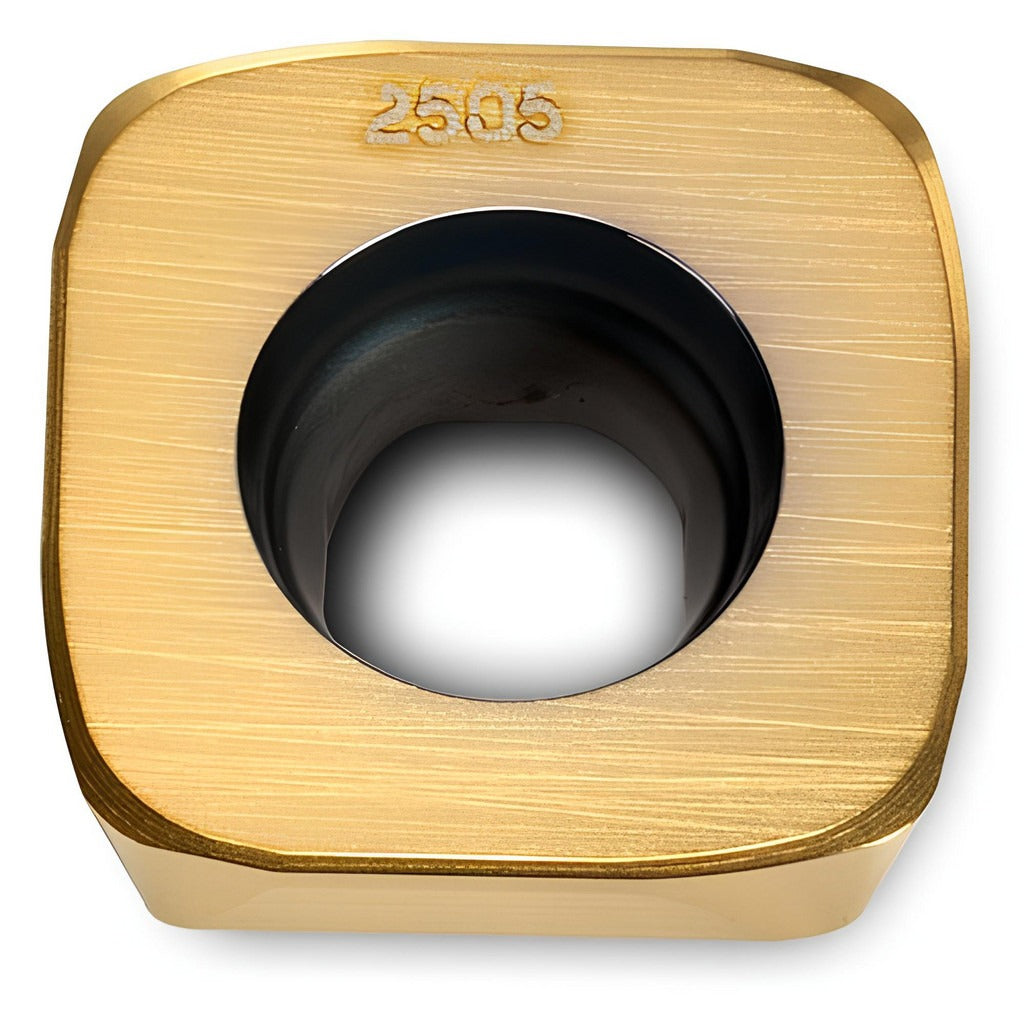

The INGERSOLL CUTTING TOOLS 2913901 is a square solid carbide milling insert in the IN4030 grade, designed for indexable milling applications in demanding metalworking environments. It features a dual PVD coating of TiAlN and AlCrO, providing thermal resistance and wear protection during high-speed cutting operations. The insert measures 0.5118 inches in diameter inscribed circle (13.00 mm), with a thickness of 0.2 inches and a 15-degree relief angle. With four cutting edges and a sharp cutting edge style, this right-hand insert is sized under the ANSI/ISO code SDXS1305MPR-MR1 J IN4030. It is installed by CNC machinists and toolroom technicians working in production milling setups.

This insert is suited for milling steel, stainless steel, cast iron, superalloys, and titanium, covering ISO material groups P, M, K, and S. The positive rake geometry and MR1 chip breaker promote controlled chip flow and reduced cutting forces, making it effective in both roughing and semi-finishing passes. The maximum depth of cut is 11.40 mm. It is a single-sided insert held in place by screw clamping and is not designed for double-sided use. Typical applications include face milling, shoulder milling, and pocketing operations in aerospace, energy, and general machining environments.

Key Features

• IN4030 grade solid carbide with coarse grain material for toughness and edge retention
• Dual PVD coating: TiAlN and AlCrO for heat resistance and extended tool life
• Four cutting edges with sharp cutting edge style for reduced cutting forces
• Positive rake angle of 15 degrees with MR1 chip breaker for controlled chip evacuation
• Right-hand insert with screw holding method for secure, repeatable indexing
• Compatible with SDXS series cutter bodies including 15M1P and 5M5P

Compatibility

Designed for use with SDXS series cutter bodies, specifically compatible with cutter series 15M1P and 5M5P. ANSI and ISO code: SDXS1305MPR-MR1 J IN4030.

Installation Notes

This insert is installed by qualified machinists or toolroom technicians using the appropriate torx or hex key for the clamping screw. Always power down and lock out the machine spindle before indexing or replacing inserts. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert. Follow the cutter body manufacturer's guidelines for screw torque and insert seating to ensure proper clamping and runout.
