Ingersoll 125-A-207 Alignment Shim

Product Description

The INGERSOLL 125-A-207 Alignment Shim is a component for the Ingersoll Rand Model 125-A Needle Scaler. It is used within the tool's assembly. All replacement parts listed under other manufacturers are Texas Pneumatic substitute parts. The manufacturer’s part numbers are listed for reference only.

• Component for Ingersoll Rand Model 125-A Needle Scaler
• Part of the tool's internal assembly
• Texas Pneumatic substitute parts

Product Highlights

The INGERSOLL 125-A-207 Alignment Shim is essential for maintaining the functionality of the Ingersoll Rand Model 125-A Needle Scaler.

Product Information

Standard Information

• Brand: INGERSOLL
• Manufacturer Part Number: 125-A-207

Technical Specifications

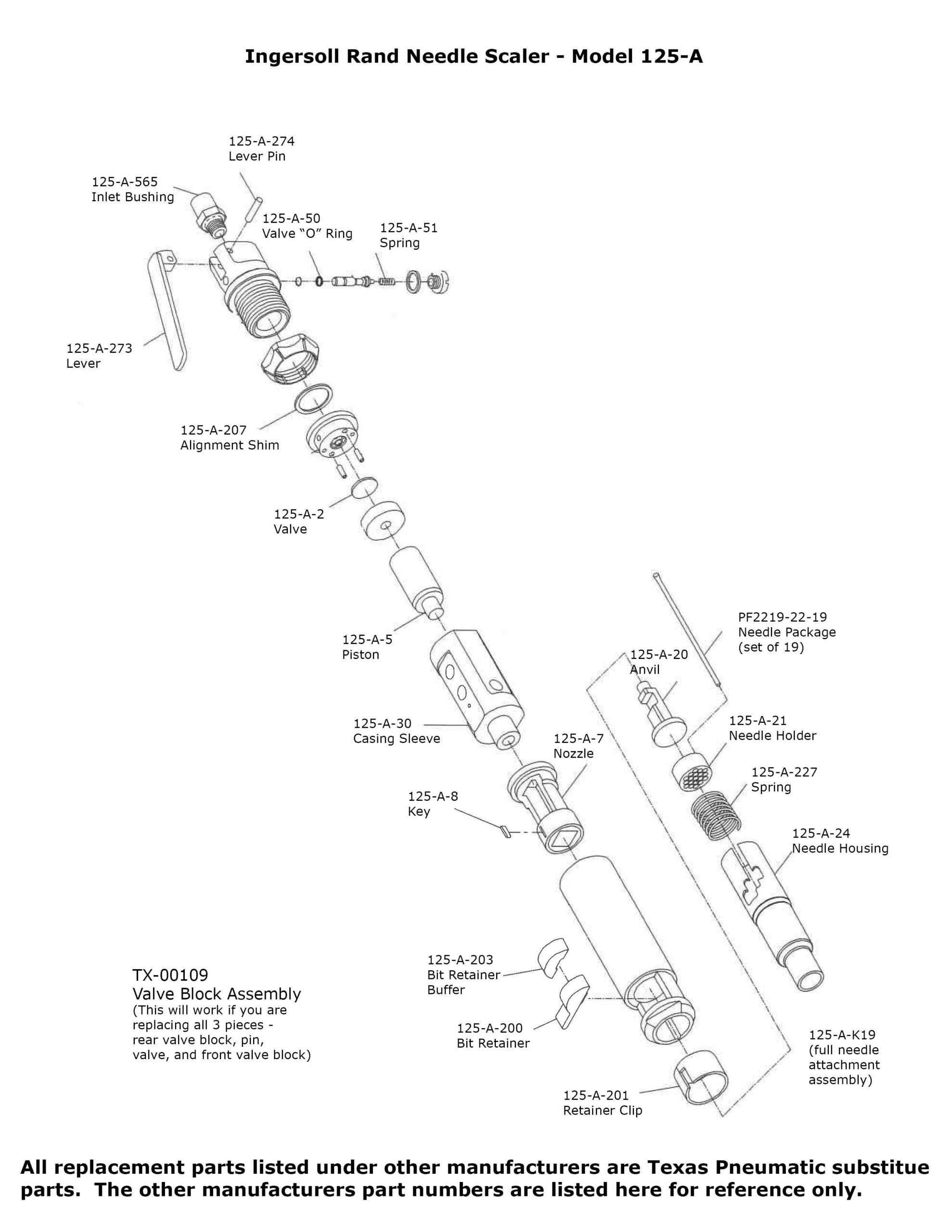

• Part Number: 125-A-160, 125-A-53, 125-A-50, 125-A-49, 125-A-51, 125-A-52, 125-A-109, 125-A-273, 125-A-274, 125-A-565, 125-A-27, 125-A-207, 125-A-4, 125-A-32, 125-A-2, 125-A-3, 125-A-5, 125-A-A10, 125-A-10, 125-A-30, 125-A-7, 125-A-8, 125-A-200, 125-A-203, 125-A-201, WARNING-6-99, 107-304, 125-A-K19, PF2219-22-19, 125-A-21, 125-A-227, 125-A-20, 125-A-24
• Description: Backhead, Throttle Valve Stem O-Ring, Valve O-Ring, Throttle Valve, Spring, Gasket, Valve Cap, Lever, Lever Pin, Inlet Bushing, Locking Ring, Alignment Shim (QTY. 2), Rear Valve Block, Pin (QTY. 2), Valve, Front Valve Block, Piston, Casing Assembly, Casing, Casing Sleeve, Nozzle, Key, Bit Retainer, Bit Retainer Buffer, Retainer Clip, Warning Label, Oil Daily Label, Needle Attachment, Needle Package (QTY. 19), Needle Holder, Spring, Anvil, Needle Housing
