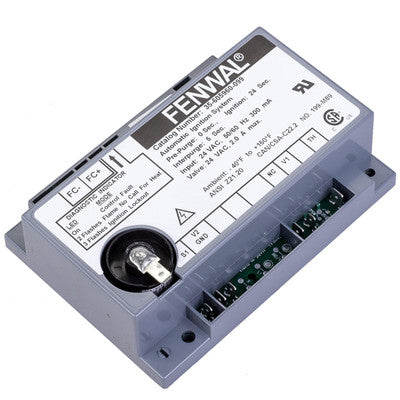

Infrasave JP-2573-FW direct spark ignition module 24 VAC Fenwal 35-605960-099

Product Description

The INFRASAVE JP-2573-FW is a Direct Spark Ignition Module designed for HVAC heating systems. This module features an automatic ignition system with a 0-second pre-purge, 24-second ignition time, and a 5-second interpurge. It operates on 24 VAC, 50/60 Hz, 300 mA input, supporting a 24 VAC, 2.0 AM max valve. The module functions in ambient temperatures from -40F to 160F and includes an LED diagnostic indicator, making it suitable for Schwank and Infrasave brand heaters.

• Direct Spark Ignition Module for reliable heating system control.
• Automatic ignition system with precise timing for pre-purge, ignition, and interpurge.
• Integrated LED diagnostic indicator for easy troubleshooting and status monitoring.

Product Highlights

This module provides automatic ignition control for Schwank and Infrasave heaters, featuring a wide operating temperature range and diagnostic feedback.

Product Information

Standard Information

• Brand: INFRASAVE
• Manufacturer Part Number: JP-2573-FW

Technical Specifications

• Product ID: JP-2573-FW
• Cross Reference Part Number: 35-605960-099
• Pre-Purge Time: 0 sec
• Ignition Time: 24 sec
• Interpurge Time: 5 sec
• Input Voltage: 24 VAC
• Input Frequency: 50/60 Hz
• Input Current: 300 mA
• Valve Rating: 24 VAC, 2.0 AM max
• Ambient Temperature Range: -40F to 160F
• Diagnostic Feature: LED indicator
• Compatible Brands: Schwank and Infrasave
