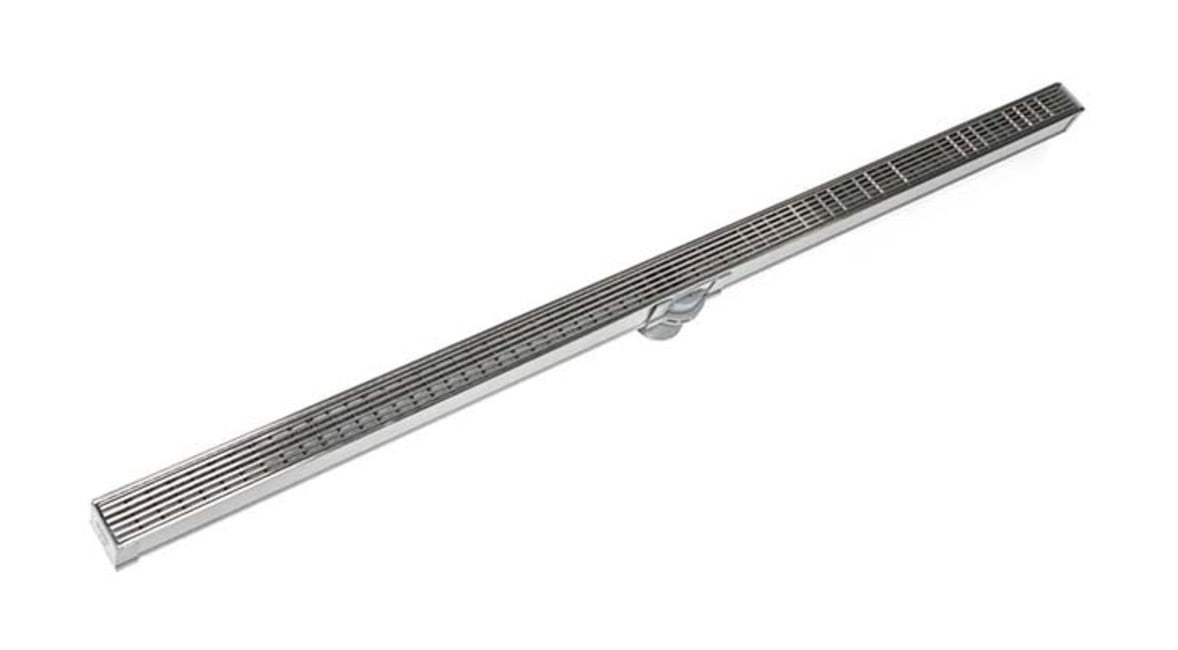

Infinity SAG-3848-SS S-PVC Series Complete Kit with 1-1/2-inch Wedge Wire Grate (48 in)

Product Description

The Infinity SAG-3848-SS is a site-sizable S-PVC series complete linear drain kit featuring a 1-1/2-inch wedge wire grate and a PVC channel. The 48 in channel can be trimmed on site and outlet placement adjusted; the removable top section allows access for cleaning. Construction includes a 12 gauge, 316 stainless steel wedge wire grate with a PVC channel, overall width 1-7/8 in, and capacity 9 gallons per minute per outlet. The kit does not include a drain body.

• Site-sizable 48 in S-PVC channel with field-adjustable length and outlet placement
• 12 gauge 316 stainless steel wedge wire grate, removable top for cleaning; overall width 1-7/8 in
• Includes 48 in grate, 45-13/16 in PVC channel, stop ends, and 2-3/16 in outlet assembly; capacity 9 gpm per outlet

Product Highlights

Site-sizable 48 in linear drain kit with 1-1/2 in outlet, 316 stainless wedge wire grate, 9 gpm capacity per outlet.

Product Information

Standard Information

• Brand: INFINITY
• Manufacturer Part Number: SAG-3848-SS

Technical Specifications

• Brand: Infinity
• MPN: SAG-3848-SS
• Series: S-PVC
• Product Type: Linear drain kit
• Length: 48 in
• Channel Length: 45-13/16 in
• Grate Type: Wedge wire
• Grate Material: 316 stainless steel
• Grate Gauge: 12 gauge
• Channel Material: PVC
• Body Material: Threaded plastic body (with stainless steel components)
• Finish: Satin stainless
• Overall Width: 1-7/8 in
• Capacity: 9 gallons per minute per outlet
• Site-sizable: Yes
• Includes: 48 in grate; 45-13/16 in PVC channel; stop ends; 2-3/16 in outlet assembly
• Outlet Size: 1-1/2 in
• Outlet assembly size: 2-3/16 in
• Requires: 2 in clamp-down floor drain with 2 in throat (strainer size) — not included
• Compatibility: PVC/vinyl liner, lead/copper pan, hot mop, rubber liner, fiberglass
• Construction: 12 gauge, 316 stainless steel wedge wire grate with PVC channel
• Weight: 11.00 lb
• SKU: SAG3848SS
• UPC: 817179010187
• Status: Discontinued (December 17, 2025)
• Drain body included: No
