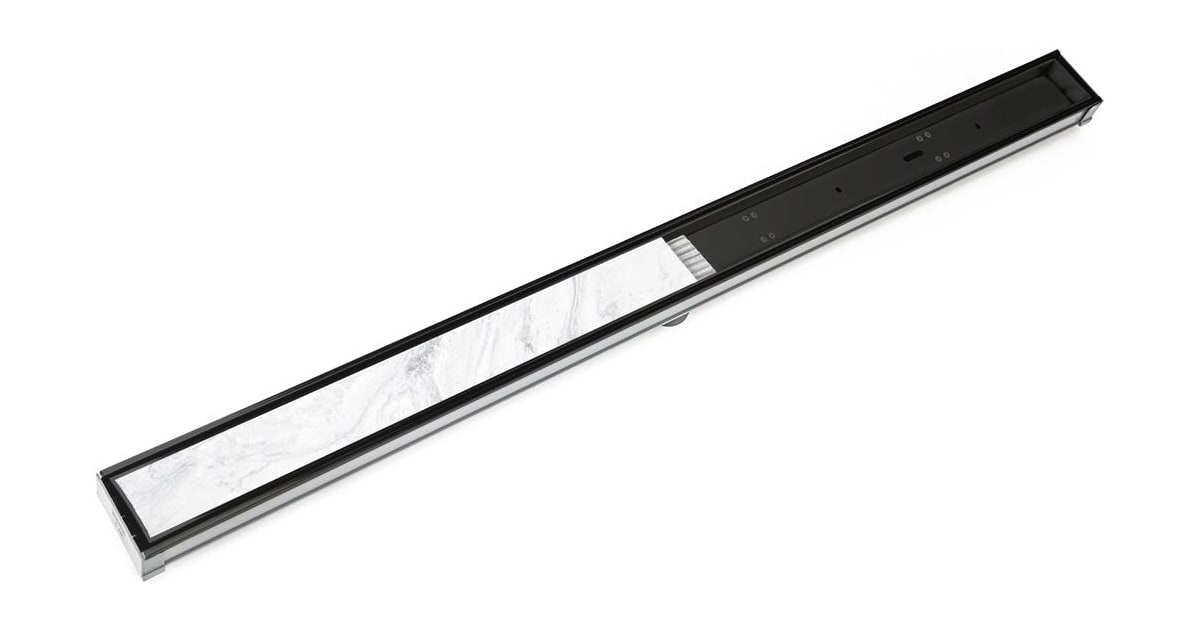

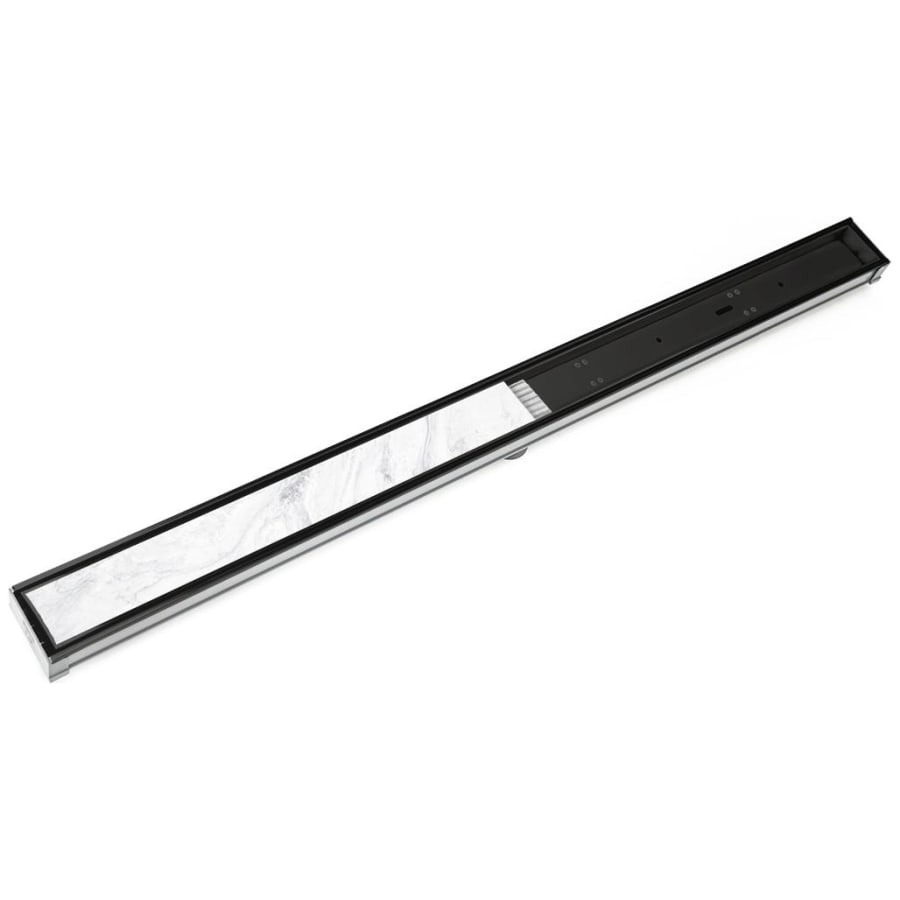

Infinity S-LTIF-6560-BK Site Sizable Stainless Steel Low Profile Linear Drain Kit 60 in Replacement S-LTIF-6560-BK

Product Description

Infinity S-LTIF-6560-BK is a 60-inch site-sizable low-profile linear drain kit that features a 12-gauge 304 stainless steel tile-in top grate and a PVC channel; the drain body is required. The kit includes grate, channel components, lift-out key, hair catcher, stop ends, and outlet assembly, accepts flooring up to 3/8 in, provides 9 gallons per minute flow, and is compatible with PVC/vinyl liner, lead/copper pan, hot mop, rubber liner, and fiberglass.

• 60 in site-sizable low-profile linear drain kit with 2-1/2 in tile-insert frame and 12-gauge 304 stainless steel grate
• Includes grate, channel components, lift-out key, hair catcher, stop ends, and outlet assembly; drain body not included
• Accepts flooring up to 3/8 in, 2 in drain connection, 9 gallons per minute capacity, compatible with common waterproofing methods

Product Highlights

60 in site-sizable low-profile linear drain kit with 2-1/2 in tile insert frame, 12-gauge 304 stainless steel grate, PVC channel, 9 gpm capacity

Product Information

Standard Information

• Brand: INFINITY
• Manufacturer Part Number: S-LTIF-6560-BK
• Country of Origin: USA

Technical Specifications

• Brand: Infinity
• Manufacturer Part Number: S-LTIF-6560-BK
• Model: S-LTIF 6560 BK
• Collection: Site Sizable
• Series: S-PVC (Low Profile)
• Length: 60 in
• Maximum Overall Length: 60 in
• Width: 3 in
• Height: 1.5 in
• Tile Insert Frame: 2-1/2 in
• Grate Gauge: 12 gauge
• Grate Material: 304 stainless steel
• Channel Material: PVC
• Material: PVC; 304 stainless steel
• Drain Connection Size: 2 in
• Drain Cover Style: Tile Insert
• Flow Capacity: 9 gallons per minute
• Accepts Flooring Thickness: Up to 3/8 in
• Included Components: Grate, channel components, lift out key, hair catcher, stop ends, outlet assembly (drain body required)
• Drain Body: Not included (drain body required)
• Compatible Waterproofing: PVC/vinyl liner; lead/copper pan; hot mop; rubber liner; fiberglass
• ADA Compliant: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.2
• Certifications: ASME; CSA; UPC
• Country of Origin: USA
• Made In America: Yes
