Infinity CDIH-22 cdih 22 Hot Mop Compact Clamp Down Drain 2 inches Throat, 2 inches Outlet

Product Description

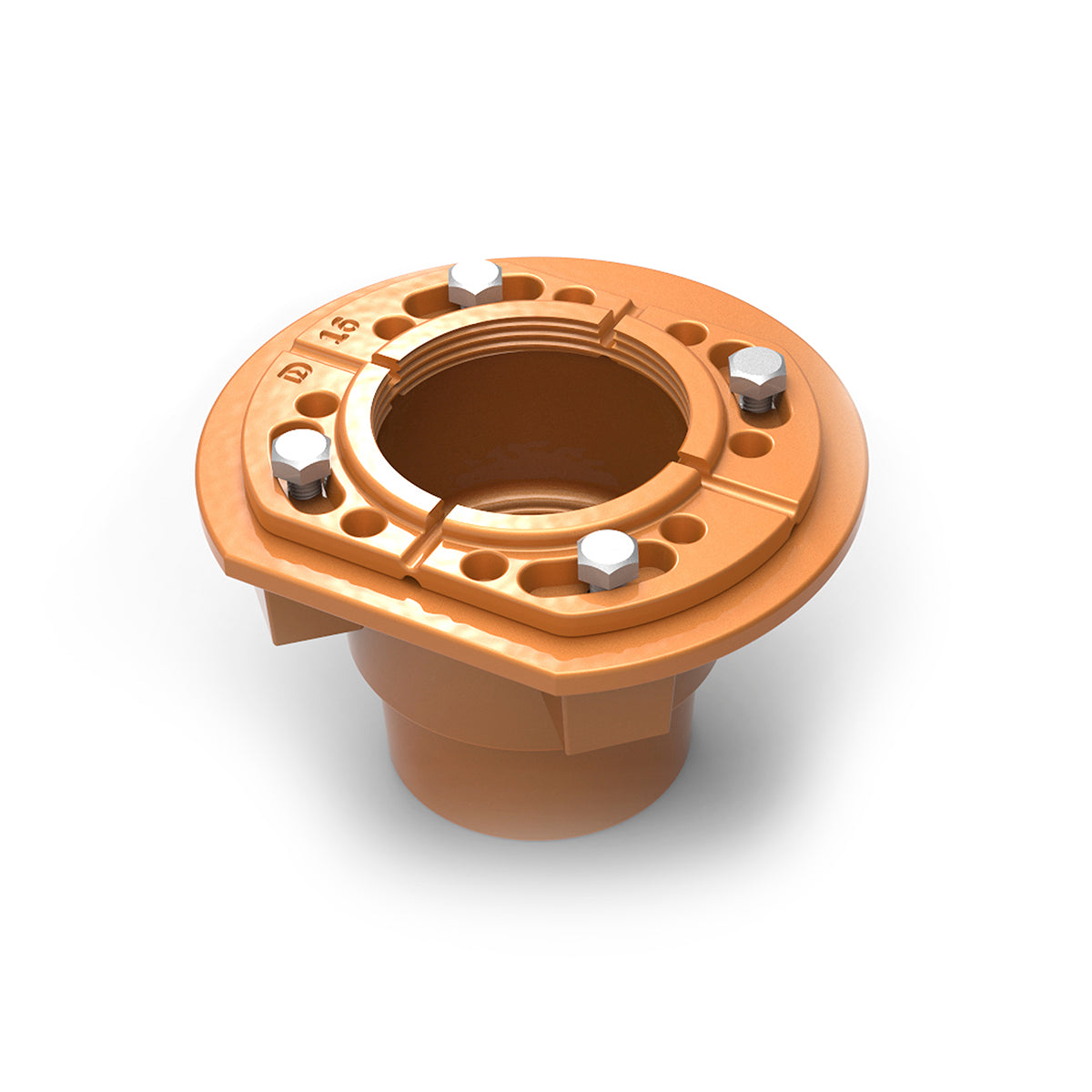

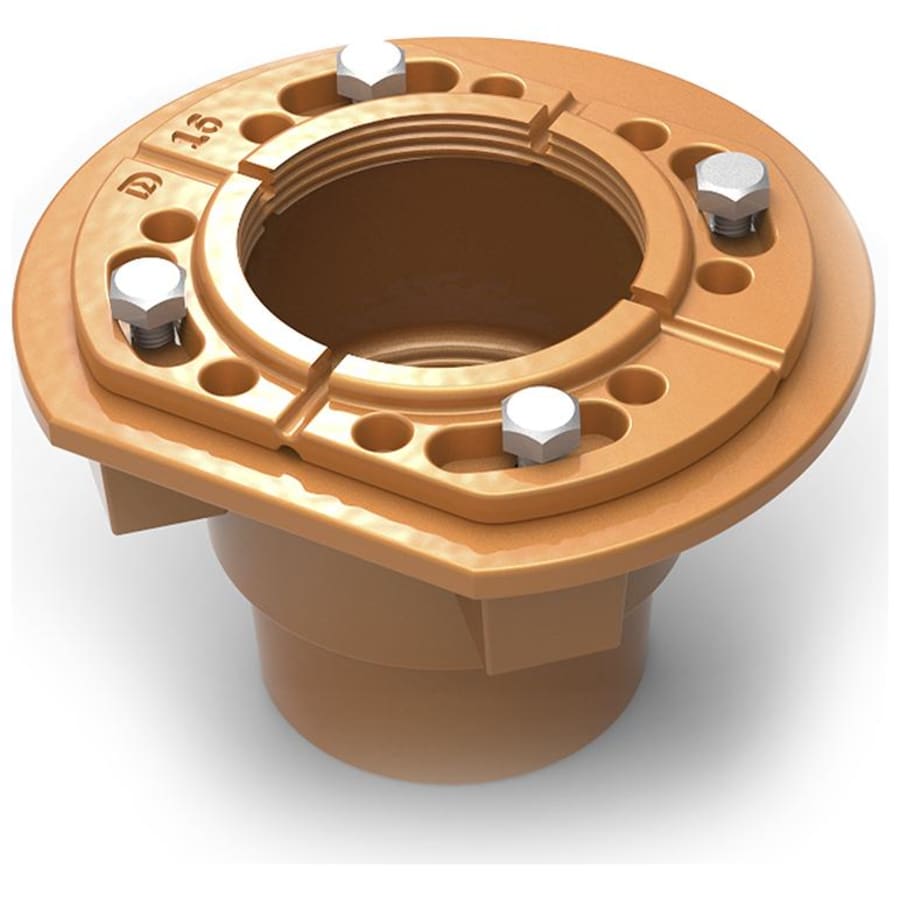

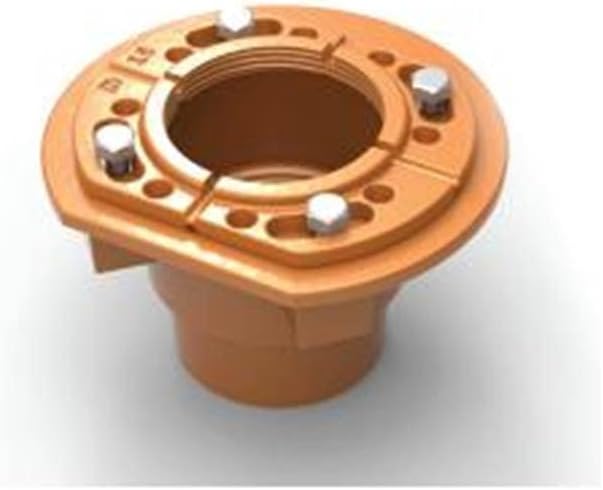

The INFINITY CDIH-22 is a cast iron compact clamp down floor drain designed for hot mop applications. It features a 2" throat and a 2" outlet. The drain is compatible with traditional waterproofing methods, including PVC/vinyl liners, lead pans, rubber liners, and fiberglass. Dimensions are 4-1/2" L x 3-3/4" W x 3-1/16" H.

• Constructed of cast iron ensuring durability and reliability
• Ideal for linear drain installation against a wall
• Compatible with traditional waterproofing: PVC / vinyl liner, lead / copper pan, hot mop, rubber liner, fiberglass

Product Highlights

The INFINITY CDIH-22 drain is ideal for hot mop applications and ensures durability with its cast iron construction.

Product Information

Standard Information

• Brand: INFINITY
• Manufacturer Part Number: CDIH-22
• Country of Origin: USA

Technical Specifications

• Throat Size: 2"
• Outlet Size: 2"
• Length: 4-1/2"
• Width: 3-3/4"
• Height: 3-1/16"
• Waterproofing Compatibility: PVC/Vinyl liner, Lead pan, Rubber liner, Fiberglass
• Manufacturer: Infinity Drain
• Part Number: CDIH 22
• Item model number: CDIH 22
• Material: Cast Iron
• Item Package Quantity: 1
• Drain Connection Size: 2"
• Capacity: 9 gallons-per-minute
• Shape: Round
• ADA: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.2
• Certifications: ASME, CSA, UPC
• CSA Code: B125.2
