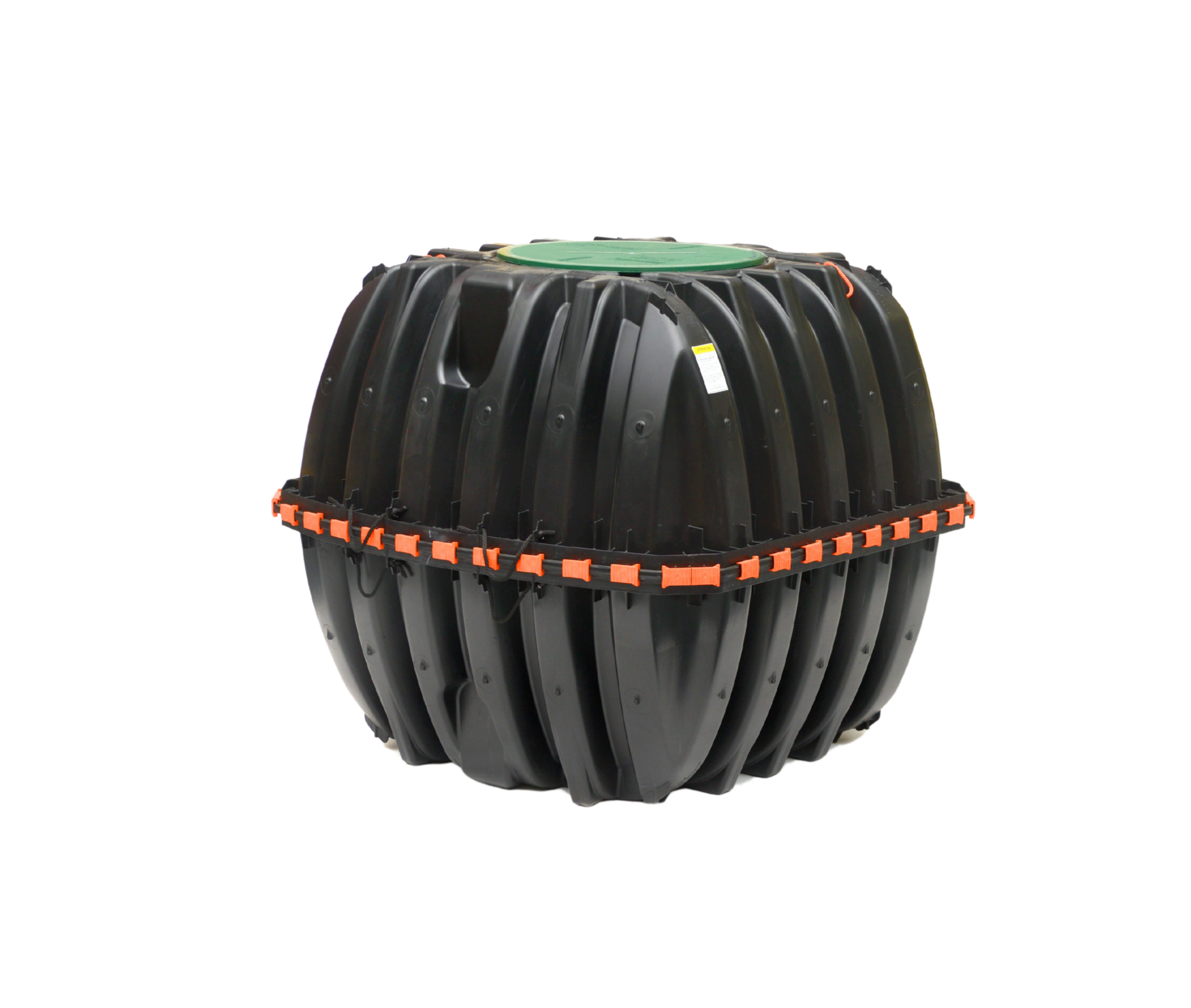

Infiltrator im-540 Septic Pump Tank 552 Gallon

Product Description

The INFILTRATOR im-540 is a lightweight, injection-molded plastic septic and pump tank engineered for residential and light commercial wastewater systems. Rated at 552 gallons total capacity, it measures 61.7 inches wide by 64.9 inches long by 54.6 inches tall and weighs 169 pounds. The watertight construction uses injection-molded plastic to deliver long-term strength and resistance to groundwater infiltration. The 24-inch access port accommodates custom-fit risers and heavy-duty lids available from INFILTRATOR. Licensed septic system contractors and plumbers are the typical installers for this tank.

The im-540 is suited for non-traffic burial applications in residential and light commercial septic systems, functioning as a primary septic tank or a pump tank in a multi-tank system. Minimum burial depth is 6 inches and maximum burial depth is 48 inches. The tank must not be installed in areas subject to vehicular traffic loads. Its lightweight design simplifies handling and placement during installation compared to traditional concrete alternatives.

Key Features

• 552-gallon total capacity suitable for residential septic and pump applications
• Injection-molded plastic construction provides watertight, long-term structural integrity
• Lightweight at 169 pounds for easier handling and placement on the job site
• 24-inch access port compatible with INFILTRATOR custom-fit risers and heavy-duty lids
• Burial depth range of 6 inches minimum to 48 inches maximum
• Non-traffic rated design — not approved for installation under vehicular load areas

Compatibility

Designed for use with INFILTRATOR custom-fit risers and heavy-duty lids. Intended for non-traffic residential and light commercial septic and pump tank installations.

Installation Notes

Installation must be performed by a licensed septic system contractor or plumber in accordance with applicable local and state onsite wastewater regulations. Excavate to the required depth, ensuring stable, level bedding material before setting the tank. Do not place the tank in any location subject to vehicular or heavy equipment traffic after installation. Verify burial depth falls within the 6-inch minimum and 48-inch maximum range specified for this tank.

Technical Specifications

• Total Capacity: 552 gallons
• Width: 61.7 inches
• Length: 64.9 inches
• Height: 54.6 inches
• Access Port Diameter: 24 inches
• Weight: 169 pounds
• Minimum Burial Depth: 6 inches
• Maximum Burial Depth: 48 inches
• Application: Non-traffic burial

Standard Information

• Brand: INFILTRATOR
• Manufacturer Part Number: im-540
