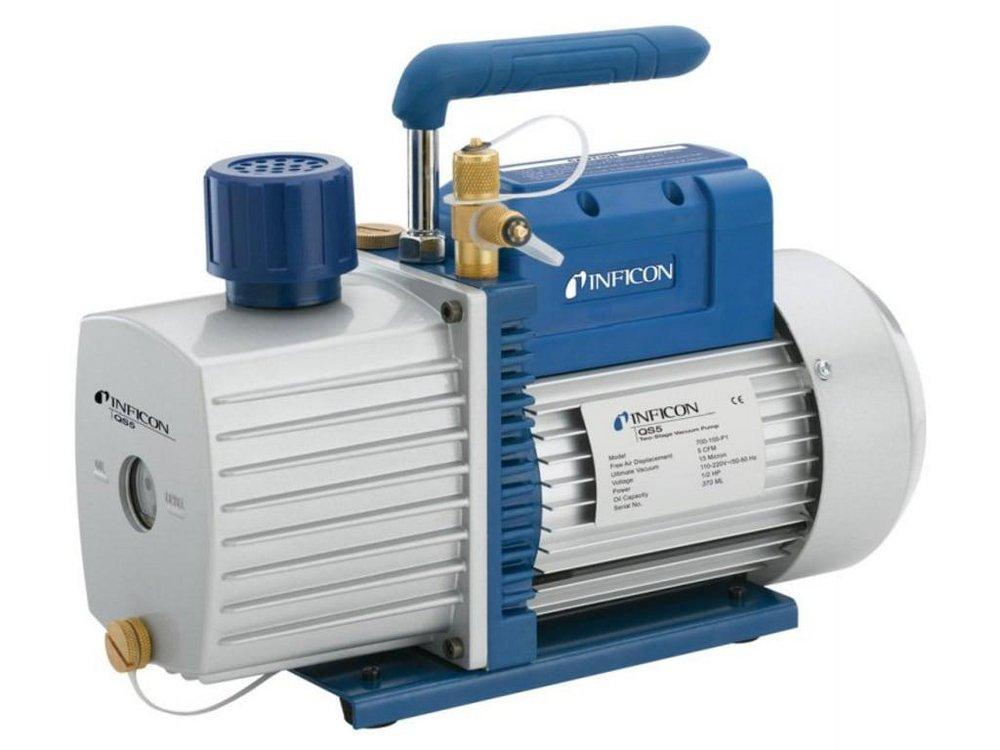

Inficon 700-100-P1 QS5 Vacuum Pump 5 CFM Replacement MPN

Product Description

The Inficon QS5 Vacuum Pump with MPN 700-100-P1 offers an effective solution for quick and thorough vacuum applications. This pump operates with 5 CFM rated displacement and achieves ultimate vacuum down to 15 microns. Its design is focused on both affordability and durability, making it suitable for various HVAC tasks.

• Two-stage rotary vane pump for deep vacuum capability
• Thermally protected motor for safe operation
• Includes power cord and vacuum pump oil

Product Highlights

This pump incorporates essential features like a large oil sight glass and an oil demister, allowing easy maintenance during service calls.

Product Information

Standard Information

• Brand: Inficon
• MPN: 700-100-P1

Technical Specifications

• Power: 1/2 HP
• Voltage: 115/230 Volts
• Weight: 24 Pounds
• Dimensions: 20 in (Length) x 11 in (Width) x 15 in (Height)
• Air Flow Capacity: 5 CFM
• Operating Temperature Range: 32-122°F
• Consumer Warranty: 2 Years
