Product Description

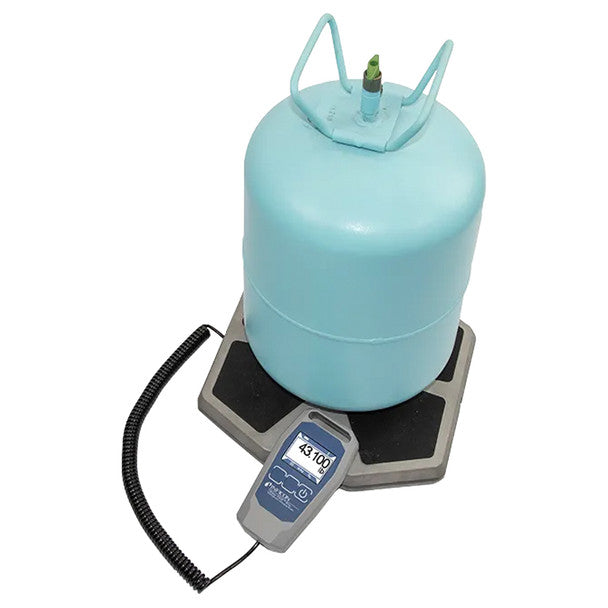

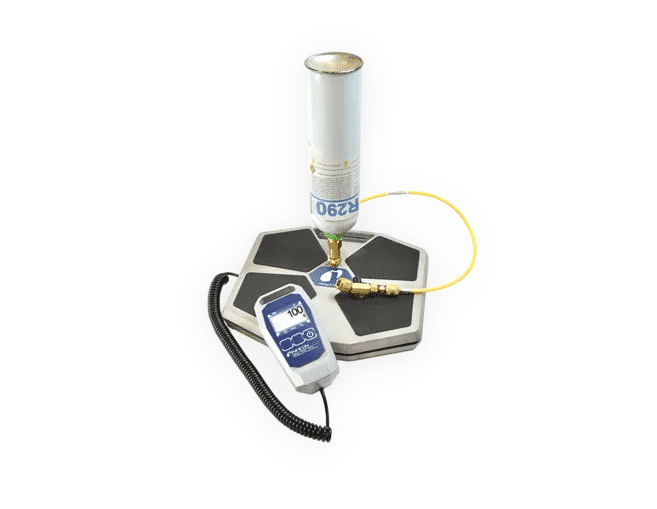

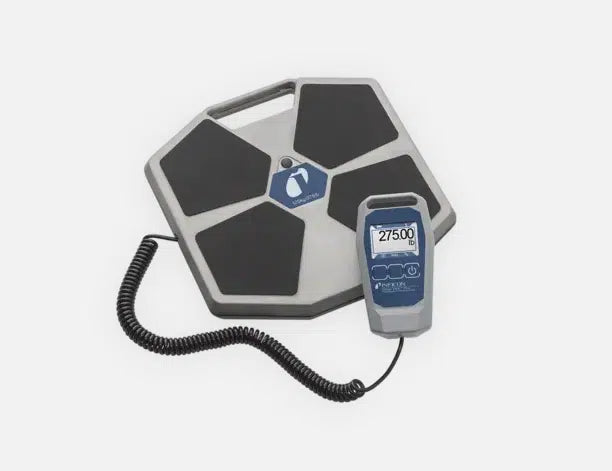

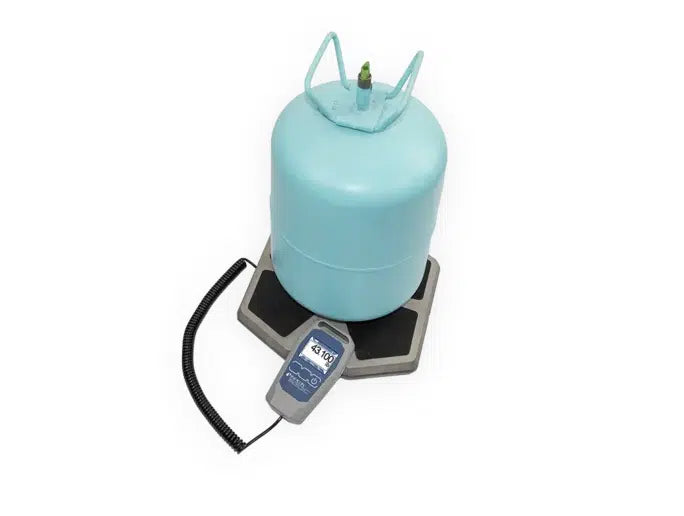

The INFICON 501-202-G1 Wey-TEK Pro is a refrigerant charging scale with a 275 lb. capacity platform for weighing large tanks. It offers 0.1 oz (3 g) display resolution for accurate small, critical charges. The scale features an intuitive wired handpiece with a bright, backlit display for operation. Bluetooth connectivity allows cordless use via a free mobile app, providing additional features and remote upgrades. It is compatible with an optional small charge adapter kit for A3 refrigerant bottles.
- 275 lb. (125 kg) capacity platform designed for various tank sizes and HVACR applications
- Wired handpiece with bright, backlit LCD display for clear operation
- Bluetooth connectivity with a free mobile app for enhanced functionality
Product Highlights
Versatile refrigerant charging scale with high capacity and precise resolution for various applications.
Product Information
Standard Information
-
Brand: INFICON
-
Manufacturer Part Number: 501-202-G1
-
Country of Origin: United States
Technical Specifications
-
Product Type: Charging Scale
-
Capacity: 275 lbs (125 kg)
-
Battery Type: AA
-
Battery Life: 150 Hours
-
Accuracy: +/- 0.06% of reading or +/- 3 g (whichever is greater)
-
Display Resolution: 0.1 oz (3 g)
-
Display Type: Color Backlit LCD
-
Display Units: lb, oz, lb/oz, kg, g
-
Power Source: 3 AA batteries
-
Item Weight: 6.35 lb. (2880 g)
-
Platform Dimensions (W x L x H): 11.0 x 11.0 x 1.5 in. (28.0 x 28.0 x 3.7 cm)
-
Platform Diagonal: 13.25 in. (33.5 cm)
-
Certifications: A2L Certified, IP44, CE, UKCA
-
Scale Type: Floor Scale
-
Measurement Method: Digital
-
Material: Metal
