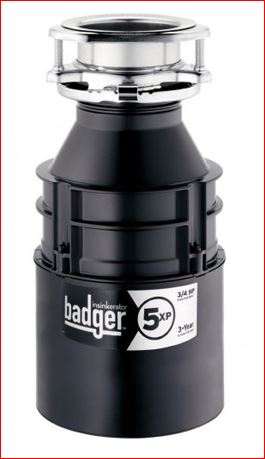

In-sink-erator BADGER-5XP W/cord Garbage Disposal 3/4 Hp

Product Description

The IN-SINK-ERATOR BADGER-5XP W/CORD is a continuous feed garbage disposal built for residential kitchen drain systems. Powered by a 3/4 HP motor spinning at 1725 RPM, it handles everyday food waste with a 26 oz grinding chamber and discharges through a standard 1-1/2 inch drain connection. The unit arrives with a power cord attached, making it ready for direct connection to a standard 120 VAC outlet. Constructed with a galvanized steel grinding system and finished in waterborne grey enamel, it is sized at 12-5/8 inches in height for compact under-sink installation. Licensed plumbers and experienced DIYers are the typical installers for this unit.

The BADGER-5XP W/CORD is designed for residential continuous feed operation, meaning the motor runs while the cold water and waste are fed in during normal use. It draws 9.5 amps at 120 VAC and 60 Hz, which fits standard residential kitchen electrical circuits. Its compact profile makes it suitable for installations where under-sink cabinet space is limited. This disposal is intended for single-family residential applications and standard residential kitchen plumbing configurations.

Key Features

• 3/4 HP motor with 1725 RPM grinding speed for consistent residential food waste processing
• 26 oz grinding chamber capacity
• Continuous feed operation for straightforward everyday use
• Standard 1-1/2 inch drain outlet fits common residential drain assemblies
• Galvanized steel construction with waterborne grey enamel finish
• Power cord included — no hardwiring required for standard outlet installations
• ASSE Listed, cULus Listed, IAPMO Listed, and UPC Standard compliant

Compatibility

Designed as an OEM-style residential continuous feed disposal for standard 1-1/2 inch kitchen drain configurations. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed plumber or qualified technician in accordance with local plumbing codes and the IPC. Shut off power to the kitchen circuit and close the water supply before beginning work. The included power cord connects to a standard grounded 120 VAC outlet — do not modify or extend the cord. Verify the drain flange, mounting assembly, and discharge tube connections are secure and leak-free before restoring power and water.

Technical Specifications

• Type: Continuous Feed
• Motor Output: 3/4 HP
• Grinding Speed: 1725 RPM
• Grinding Chamber Capacity: 26 oz
• Voltage Rating: 120 VAC
• Amperage Rating: 9.5 A
• Frequency Rating: 60 Hz
• Drain Connection: 1-1/2 inches
• Height: 12-5/8 inches
• Material: Galvanized Steel
• Finish: Waterborne Grey Enamel
• Certifications: ASSE Listed, cULus Listed, IAPMO Listed, UPC Standard
• Country of Origin: Domestic

Standard Information

• Brand: IN-SINK-ERATOR
• Manufacturer Part Number: BADGER-5XP W/CORD
