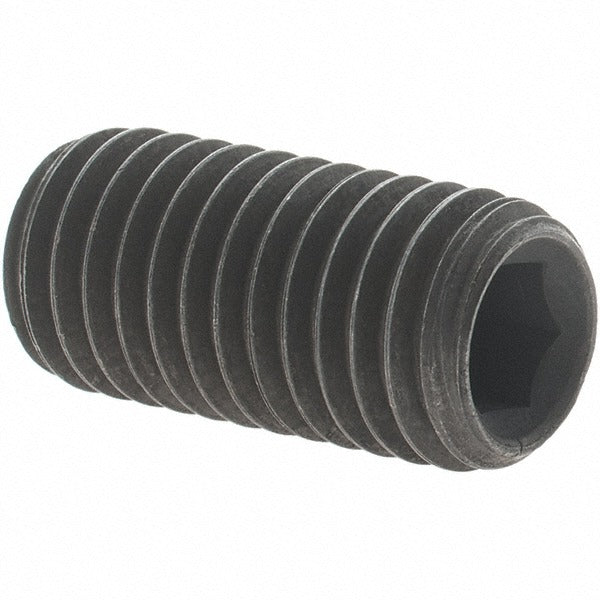

Import SS6S12025-010B Set Screw M12 X 1.75 25mm Cup Point

Product Description

The IMPORT SS6S12025-010B is a metric cup point set screw designed for secure, vibration-resistant fastening in mechanical assemblies. It features an M12 x 1.75 thread and a 25 mm overall length, with a 6 mm hex drive for installation with a standard hex key. Manufactured from alloy steel to Grade 14.9 (45H), this fastener meets DIN 916 standard, making it a reliable choice for high-load clamping applications where the cup point must bite into a shaft or mating surface to resist rotation or axial movement.

Cup point set screws of this specification are widely used in industrial and mechanical trade applications including shaft collars, gear hubs, pulleys, sprockets, and similar power transmission components. The M12 thread size and 25 mm length suit medium to heavy-duty assemblies where positive locking force is required. Installation is typically performed by millwrights, maintenance mechanics, or machine builders working to standard torque specifications for Grade 14.9 alloy fasteners.

Key Features

• M12 x 1.75 metric thread with 25 mm overall length for precise fitment in standard M12 tapped holes
• Cup point geometry bites into shaft surface to provide positive resistance against rotation and axial movement
• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• 6 mm hex drive compatible with standard hex keys and L-wrenches
• Conforms to DIN 916 fastener standard for dimensional consistency
• Minimum order quantity of 10 pieces ensures availability for production or maintenance stocking

Compatibility

Designed as a DIN 916 standard metric set screw for use in any M12 x 1.75 internally threaded bore requiring a cup point fastener in mechanical power transmission and industrial assembly applications.

Installation Notes

Installation requires a 6 mm hex key or T-handle driver. Confirm the mating bore thread is M12 x 1.75 and free of debris or damage before driving the screw. Apply thread-locking compound or specified preload torque per applicable engineering standards for the assembly. Always de-energize and lock out machinery before servicing any fasteners on rotating components.
