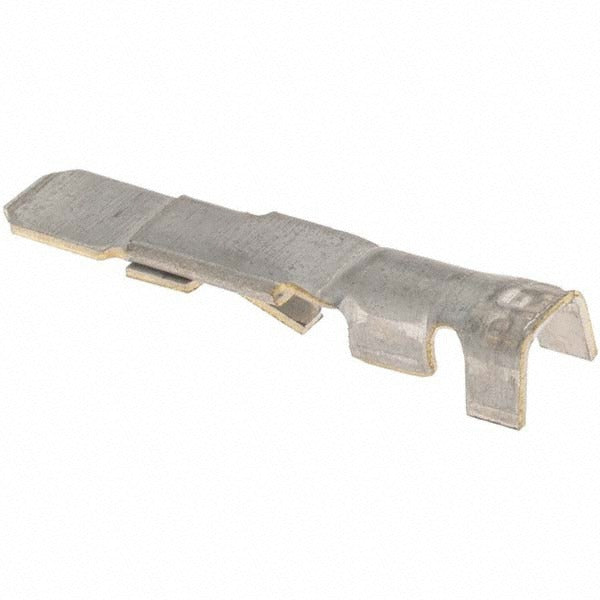

Import PCM-19 Noninsulated Male Tab Terminal 20-18 Awg

Product Description

The IMPORT PCM-19 is a noninsulated male tab terminal designed for crimp-style electrical connections in low-voltage wiring applications. It accepts 20 to 18 AWG wire and features a brass contact body with tin plating for reliable conductivity and corrosion resistance. This terminal is sold individually but requires a minimum order of 50 units, making it suited for production assembly, panel wiring, and field service work where bulk quantities are needed. Electricians and electronics technicians use this type of terminal when a clean, compact male tab connection is required without an insulating sleeve.

The PCM-19 is commonly used in control wiring, electrical panel assemblies, HVAC low-voltage circuits, and light commercial wiring applications. Its noninsulated design is appropriate where post-crimp sleeving or heat shrink is applied separately, or where a bare tab is required for a specific connector housing. Compatible wire range of 20 to 18 AWG covers most low-voltage control circuit conductors encountered in residential and light commercial service work.

Key Features

• Noninsulated male tab design for crimp termination without a built-in sleeve
• Brass contact material with tin plating for conductivity and corrosion resistance
• Compatible with 20 to 18 AWG wire for low-voltage control circuit use
• Crimp connection type for fast, tool-based termination in the field or at the bench
• Sold individually with a minimum order quantity of 50 units

Compatibility

Designed as an OEM-style crimp tab terminal for use in low-voltage control wiring, panel assemblies, and electrical harness applications requiring a noninsulated male tab on 20 to 18 AWG conductors.

Installation Notes

Installation is performed by electricians or electronics technicians using a ratcheting or appropriate crimp tool rated for the terminal and wire gauge. De-energize any circuit before terminating or inspecting connections. Strip wire to the manufacturer-recommended length before inserting into the terminal barrel and applying the crimp. If post-crimp insulation is required, apply heat shrink or a suitable sleeve after crimping per applicable NEC requirements.
