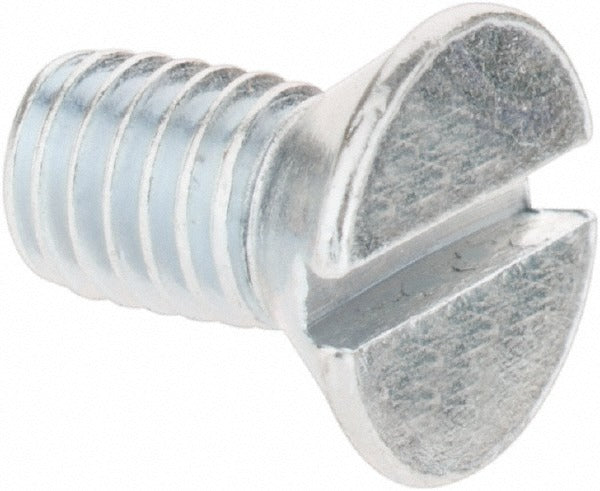

Import MSFFI-1000370-100BX 10-32 X 3/8 in Flat Head Slotted Screw

Product Description

The IMPORT MSFFI-1000370-100BX is a 10-32 x 3/8-inch flat head slotted machine screw made from Grade 2 steel with a zinc-plated finish. The flat head profile sits flush with the mating surface when properly countersunk, making it well suited for panel assemblies, electrical enclosures, and HVAC equipment where a smooth surface finish is required. The zinc plating provides basic corrosion resistance for indoor and light-duty applications. This fastener meets ANSI B 18.6.7 M, DIN 963, ISO 2009, and JIS B 1101 standards. Sold in a box of 100, it is intended for trade and production use where consistent fastener supply is needed across service and assembly work.

This screw is appropriate for light mechanical assembly in residential and commercial settings. Common applications include securing electrical panels, control board brackets, HVAC equipment covers, plumbing fixture hardware, and general sheet metal or light-gauge steel assemblies. The 10-32 unified fine thread engages cleanly in tapped holes in steel, aluminum, and plastic substrates. The overall length of 3/8 inches is measured as a full overall dimension, with the length under head also measuring 3/8 inches, indicating a fully threaded shank from head to tip.

Key Features

• 10-32 unified fine thread for precise engagement in tapped metal and plastic holes
• Flat head profile allows flush or countersunk seating in mating materials
• Slotted drive accepts standard flat-blade screwdrivers and power driver bits
• Grade 2 steel construction with zinc-plated finish for basic corrosion protection
• Meets ANSI B 18.6.7 M, DIN 963, ISO 2009, and JIS B 1101 fastener standards
• Sold in a box of 100 units for production, service, and maintenance stock

Compatibility

Designed as a standard 10-32 x 3/8-inch flat head slotted machine screw compatible with any application requiring a unified fine thread fastener of this size and head style conforming to ANSI B 18.6.7 M, DIN 963, ISO 2009, or JIS B 1101 specifications.

Installation Notes

Installation is performed with a flat-blade screwdriver or slotted power driver bit sized for the screw head. Ensure the receiving hole is properly tapped to 10-32 UNF before driving the fastener. For flush seating, the mating surface should be countersunk to the appropriate flat head angle. Do not overtorque, as Grade 2 steel has lower proof load than Grade 5 or Grade 8 fasteners and is not intended for high-stress structural connections.
