Import BDNA-KP65020 7/32 Inch Hss Jobber Drill Bit

Product Description

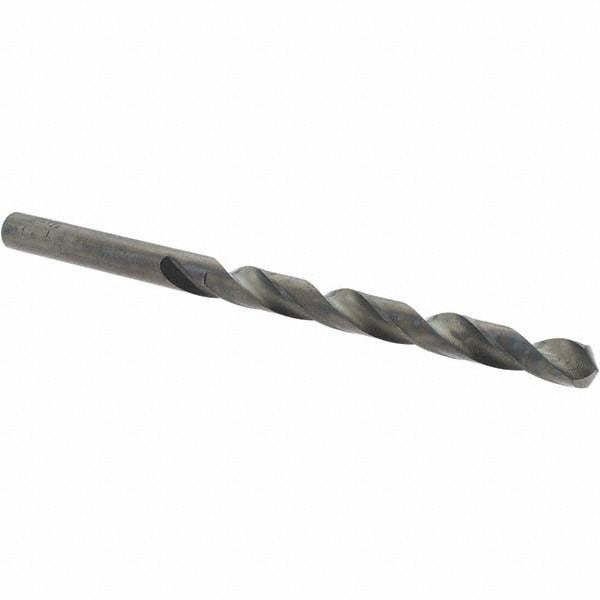

The IMPORT BDNA-KP65020 is a jobber-length twist drill bit designed for general-purpose drilling in metal, wood, plastics, and similar materials. It measures 7/32 inch (0.2188 inch decimal) in diameter with a 118-degree standard point angle and a right-hand spiral flute for efficient chip evacuation. The bit is manufactured from high speed steel with an oxide coating to reduce friction and extend service life under normal drilling conditions. At 3-3/4 inches overall length with a 2-1/2 inch flute length, it fits standard three-jaw drill chucks via its straight-cylindrical shank. Machinists, maintenance technicians, pipefitters, and general tradespeople keep this size on hand for common pilot and through-hole work.

This drill bit is suited for light-duty to moderate drilling tasks across residential and commercial maintenance, fabrication shops, and field service applications. The web-thinned, tapered-web construction reduces the thrust required at the point, making it easier to start a hole accurately without a center punch on many materials. It is a single-piece consumable sold individually and is appropriate wherever a standard 7/32 inch hole is required.

Key Features

• 7/32 inch (0.2188 inch) diameter with straight-cylindrical shank for universal chuck compatibility
• 118-degree standard point angle with web-thinned, tapered-web tip for reduced entry thrust
• High speed steel construction handles general-purpose drilling across common trade materials
• Oxide coating reduces surface friction and aids in heat dissipation during use
• Right-hand regular spiral flute promotes consistent chip removal and cleaner hole finish
• 3-3/4 inch overall length suits standard jobber-length applications in most drill chucks

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with any standard three-jaw drill chuck or drill press that accepts a straight-cylindrical shank in the 7/32 inch size range.

Installation Notes

Installation is performed by machinists, maintenance mechanics, or qualified tradespeople using a hand drill, drill press, or similar drilling equipment. Secure the workpiece before drilling and ensure the chuck is fully tightened on the shank before operation. Always wear appropriate eye protection when drilling. Inspect the bit for cracks or excessive wear before each use and replace if the cutting edges are damaged.
