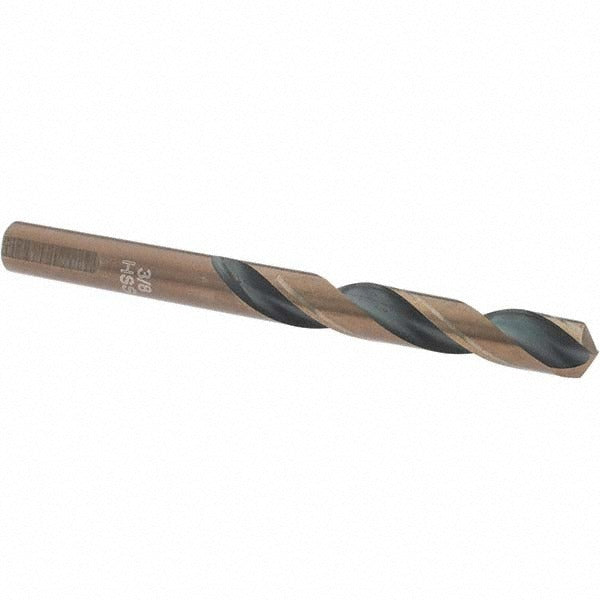

Import BDNA--20920-1 Mechanics Drill Bit 3/8 in Hss

Product Description

The IMPORT BDNA--20920-1 is a mechanics-length drill bit designed for general-purpose drilling in metal and ferrous materials. Built from high-speed steel with an oxide finish, it features a 135-degree split point that reduces walking and allows drilling to start without a center punch. The Weldon flat shank with three flats locks securely into compatible chucks to prevent slipping under torque. At 4.25 inches overall length with a 2.6875-inch flute, this bit suits applications where a jobber-length bit would be too long for confined spaces or short-reach drilling fixtures. Right-hand spiral flutes clear chips efficiently during through-hole and blind-hole operations.

This bit is suited for use in machine shops, maintenance facilities, and fabrication environments where drilling into carbon steel, cast iron, high alloy steel, stainless steel, and high tensile strength alloys is routine. The mechanics-length body keeps deflection low in drill press and mill setups. The parallel web configuration and web-thinned geometry reduce thrust requirements, making it practical for hand drilling and machine drilling alike. It is sold individually and fits standard Weldon-shank toolholders.

Key Features

• 135-degree split point reduces bit walking and cutting thrust on hard metals
• High-speed steel construction withstands the heat generated during metal drilling
• Weldon flat shank with three flats prevents rotation in compatible toolholders
• Oxide finish provides light corrosion resistance and reduces friction
• Mechanics length keeps the bit compact for confined-space and machine setups
• Web-thinned, parallel web geometry lowers feed pressure requirements

Compatibility

Designed for use with Weldon-shank toolholders and chucks that accept a 3/8-inch diameter shank. Compatible workpiece materials include carbon steel, cast iron, high alloy steel, high tensile strength alloy, stainless steel, and general steel stock.

Installation Notes

This bit is installed and removed by a qualified machinist or maintenance technician. Secure the Weldon shank fully into the toolholder and tighten all set screws against the flats before drilling. Power down and de-energize any machine tool before changing bits. Use appropriate cutting fluid or coolant for stainless steel and high alloy materials to extend bit life, as this bit does not support through-coolant delivery.
