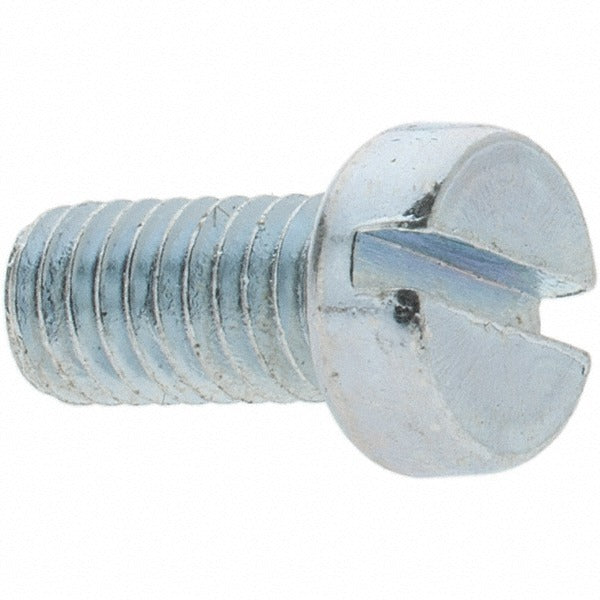

Import 43256 M6x1 12mm Cheese Head Slotted Machine Screw

Product Description

The IMPORT 43256 is a metric machine screw with a cheese head profile and slotted drive, manufactured from steel with a zinc-plated finish. It carries a Grade 4.8 strength rating and conforms to DIN 84 and ISO 1207 dimensional standards. The thread is M6x1, and the length under head measures 12 millimeters. This fastener is installed without a washer and is suited for light to medium clamping applications in fabricated assemblies, enclosures, and mechanical sub-assemblies. Maintenance technicians, millwrights, and general trade professionals use this screw where a low-profile head and standard slotted drive are specified.

This screw is appropriate for metric-dimensioned assemblies in commercial and light industrial settings. The cheese head geometry provides a larger bearing surface than a pan head while keeping a cylindrical, low-profile shape. The zinc plating offers basic corrosion resistance for indoor or light-duty environments. It is typically used in panel mounting, equipment housings, and general mechanical assembly where M6 thread size and 12 mm fastener length are called out by the design specification.

Key Features

• M6x1 thread with 12 mm length under head per DIN 84 and ISO 1207
• Cheese head profile provides cylindrical, low-profile clamping surface
• Slotted drive for standard flat-blade screwdriver or bit installation
• Grade 4.8 steel construction for light to medium load applications
• Zinc-plated finish for basic corrosion resistance in indoor environments
• No washer included; length measurement taken from under head

Compatibility

Designed as a standard metric replacement fastener for assemblies specifying DIN 84 or ISO 1207 cheese head slotted machine screws in M6x1 thread size with a 12 mm under-head length.

Installation Notes

Install using a flat-blade screwdriver or slotted bit sized for M6 cheese head fasteners. Confirm mating thread depth and material before torquing; Grade 4.8 fasteners are not rated for high-tension structural joints. De-energize and lock out any equipment before fastener service on electrical enclosures or powered assemblies. Minimum order quantity is 50 pieces.
