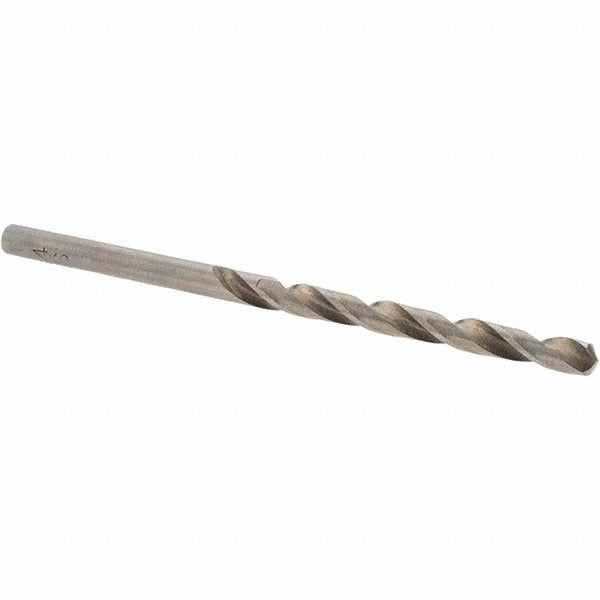

Import -22358-B Jobber Drill Bit 9/64 in Hss 118 Deg

Product Description

The IMPORT -22358-B is a jobber-length drill bit designed for general-purpose drilling in metal, wood, and plastic. It is machined from high speed steel with a bright uncoated finish and features a standard 118-degree split point with web thinning for improved centering and reduced thrust on entry. The straight cylindrical shank seats securely in standard three-jaw chucks. At 2-7/8 inches overall length with a 1-3/4 inch flute length, this bit suits benchtop drill presses and handheld power drills common in HVAC, plumbing, electrical, and general fabrication work.

This bit is sized at 9/64 inches in diameter (0.1406 inches decimal equivalent), placing it in the 0.1000 to 0.1500 inch size range commonly used for pilot holes, sheet metal penetrations, and small fastener clearance holes. The right-hand spiral flute with regular helix evacuates chips efficiently during through-hole and blind-hole drilling. It is a single-piece unit sold individually, with a minimum order quantity of 12 pieces per order.

Key Features

• 9/64 inch diameter (0.1406 inches decimal) for precise sizing in standard drill charts
• 118-degree standard point angle with web thinning for self-starting entry
• High speed steel construction handles general-purpose drilling across multiple materials
• Bright uncoated finish for easy visual inspection of wear
• Straight cylindrical shank compatible with standard three-jaw drill chucks
• Right-hand spiral flute with regular helix for efficient chip evacuation

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with any standard three-jaw chuck accepting a 9/64 inch straight cylindrical shank, including benchtop drill presses and handheld power drills used across HVAC, plumbing, and electrical trades.

Installation Notes

Install the bit fully into the chuck and tighten all jaws evenly before drilling. Wear appropriate eye protection and secure the workpiece before applying power. Reduce feed pressure on breakthrough to prevent the bit from grabbing. Inspect the cutting edges for wear or chipping before each use and replace bits that show heat discoloration or edge rollover.
