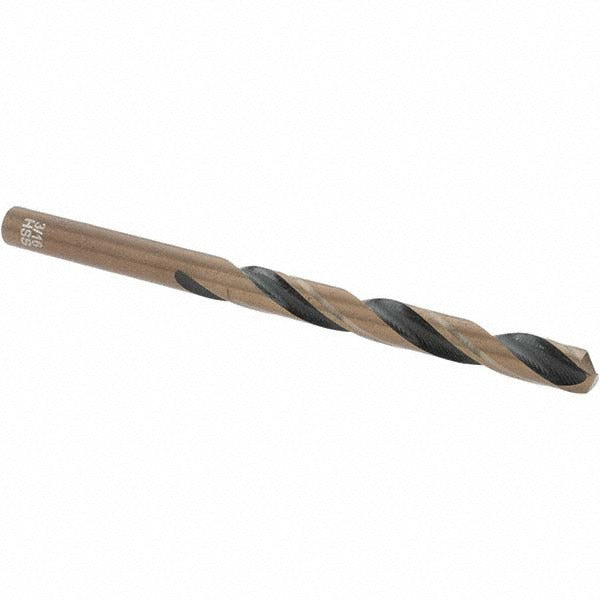

Import -20908-10 Mechanics Drill Bit 3/16 in Hss

Product Description

The IMPORT -20908-10 is a mechanics-length, high-speed steel (HSS) twist drill bit designed for general-purpose metal drilling in shop and field applications. It measures 3/16 inch (0.1875 inch) in diameter with a 135-degree split point that self-centers on contact, reducing the need for a center punch and minimizing walking on hard surfaces. The oxide finish provides basic lubricity and corrosion resistance. At 3 inches overall length, this is a compact mechanics-length bit suited for work in tight clearance areas. Right-hand cut with a regular spiral flute and web-thinned geometry for reduced thrust. Installed and used by machinists, millwrights, HVAC technicians, plumbers, and general maintenance trades.

This bit is intended for drilling carbon steel, cast iron, high alloy steel, high tensile strength alloys, stainless steel, and general steel stock. The mechanics-length format makes it appropriate for use in hand drills, drill presses, and CNC drill fixtures where stub-length reach and rigidity are priorities. The split point and web-thinned design reduce heat buildup and improve chip evacuation when working through harder ferrous materials. Coolant-through capability is not supported by this bit.

Key Features

• 135-degree split point self-centers on the workpiece without a center punch
• Web-thinned geometry reduces cutting thrust and heat in hard ferrous materials
• High-speed steel construction handles carbon steel, cast iron, and stainless steel
• Oxide finish provides lubricity and basic surface protection
• Mechanics length (3 inches OAL) offers rigidity in confined spaces
• Right-hand cut with regular spiral flute for consistent chip removal

Compatibility

Designed as a general-purpose replacement or stock drill bit for use in hand drills, drill presses, and machine tool setups where a 3/16 inch straight-cylindrical shank mechanics-length bit is required. Suitable for drilling carbon steel, cast iron, high alloy steel, high tensile strength alloys, and stainless steel workpieces.

Installation Notes

Secure the bit firmly in the chuck and verify shank seating before operation. Power down and de-energize any machine tool before changing bits. Use appropriate cutting fluid or coolant when drilling stainless steel or high alloy materials to extend tool life, even though this bit does not support internal coolant delivery. Wear appropriate eye protection and follow applicable shop safety standards during use.
