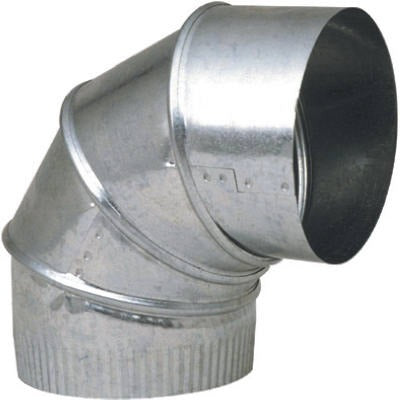

Imperial Mfg Group Usa Inc GV0296-C Furnace Elbow 6 in

Product Description

The IMPERIAL MFG GROUP USA INC GV0296-C is a 6-inch adjustable 90-degree galvanized steel furnace elbow used in residential and light commercial HVAC ductwork systems. Constructed from 30-gauge galvanized steel, it provides a durable, corrosion-resistant connection at direction changes in warm-air furnace supply or return trunk lines. The adjustable design allows the installer to dial in the precise angle needed during rough-in or retrofit work, reducing the need for custom fabrication on site. HVAC sheet metal installers and duct mechanics are the primary tradespeople who specify and install this fitting.

This elbow is suited for 6-inch round or rectangular-to-round duct transitions in forced-air heating systems, including gas, oil, and electric furnace installations. Its adjustable construction makes it a practical choice in renovation and replacement scenarios where existing ductwork may not align perfectly with new equipment. The galvanized finish holds up in attic, basement, and crawlspace environments where moisture exposure is common. Sold in a package quantity of 8 units per case, making it efficient for multi-unit or whole-house duct installations.

Key Features

• Adjustable 90-degree bend accommodates field-fit angle adjustments without custom cutting
• 30-gauge galvanized steel construction resists corrosion in typical HVAC installation environments
• 6-inch diameter fits standard residential and light commercial duct sizing
• Sold in a case quantity of 8 units for volume efficiency on larger jobs
• Designed for warm-air furnace supply and return ductwork applications

Compatibility

Designed as an OEM-style replacement and new-construction fitting for 6-inch round duct systems in residential and light commercial forced-air furnace installations.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal mechanics following local mechanical codes and SMACNA duct construction standards. Power down the furnace and close the fuel supply valve before working on connected ductwork. Secure all joints with sheet metal screws and seal with UL 181-listed foil tape or mastic to maintain system static pressure and efficiency. Do not use standard duct tape in place of listed sealing materials.
