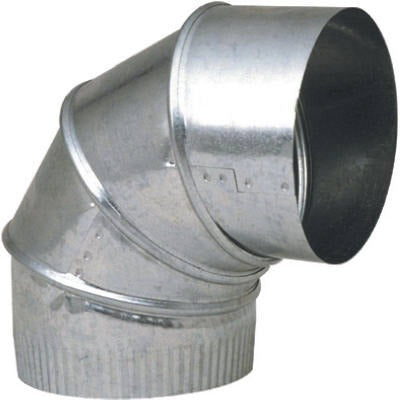

Imperial Mfg Group Usa Inc GV0281-C Furnace Elbow 3 in

Product Description

The IMPERIAL MFG GROUP USA INC GV0281-C is a 3-inch adjustable 90-degree galvanized steel furnace elbow designed for residential and light commercial HVAC duct systems. Fabricated from 28-gauge galvanized steel, it provides a durable, corrosion-resistant connection at duct transitions and directional changes. The adjustable design allows the installer to set the elbow angle within the 90-degree range to accommodate field conditions, reducing the need for custom fabrication on the job site. HVAC sheet metal technicians and installers handle this fitting as part of supply or return air trunk line assemblies.

This elbow is suited for forced-air furnace ductwork installations where a 3-inch round galvanized fitting is required to make a directional change in the duct run. Typical applications include branch takeoffs, equipment connections, and tight-space routing around structural obstructions. It ships in packages of 8 units, making it practical for contractors stocking materials for multiple installations or larger duct system projects.

Key Features

• Adjustable 90-degree elbow allows field-setting of the duct angle without custom fabrication
• 28-gauge galvanized steel construction resists corrosion in typical HVAC environments
• 3-inch diameter fits standard round duct fittings and collars
• Packaged in quantities of 8 for contractor convenience
• Suitable for forced-air furnace supply and return duct systems

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and light commercial forced-air furnace duct systems using 3-inch round galvanized ductwork.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal installers following applicable mechanical codes such as the IMC or SMACNA duct construction standards. Power down the furnace and verify the system is de-energized before working on connected ductwork. Secure the elbow with sheet metal screws and seal all joints with UL-listed foil tape or duct mastic to maintain system airtightness. Do not overtighten fasteners on 28-gauge material, as the light gauge can deform under excessive force.
